Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LIMING
-
Dimension(L*W*H):
-
13400*2820*4350mm
-
Warranty:
-
one Year
-
Name:
-
Concrete Recycling Complete Plant Diesel Construction Mobile Crusher
-
Processed Materials:
-
Andesite, river stone, limestone, ore, etc.
-
Product type:
-
Mobile cone crusher
-
Input size:
-
0-200mm
-
Color:
-
Iron grey, red , black, customized
-
Spare parts supply:
-
We are big factory, can supply anytime
-
Test&Installation:
-
Professional Engineer Assigned
-
After sale Service:
-
Professional Services team regularly visit customers
-
Keyword:
-
mobile cone crusher plant
-
The Machines classification:
-
Andesite mobile cone crusher plant
Quick Details
-
Type:
-
mobile cone crusher plant
-
Application:
-
Andesite crusher in Indonesia
-
Capacity(t/h):
-
100-790TPH
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LIMING
-
Dimension(L*W*H):
-
13400*2820*4350mm
-
Warranty:
-
one Year
-
Name:
-
Concrete Recycling Complete Plant Diesel Construction Mobile Crusher
-
Processed Materials:
-
Andesite, river stone, limestone, ore, etc.
-
Product type:
-
Mobile cone crusher
-
Input size:
-
0-200mm
-
Color:
-
Iron grey, red , black, customized
-
Spare parts supply:
-
We are big factory, can supply anytime
-
Test&Installation:
-
Professional Engineer Assigned
-
After sale Service:
-
Professional Services team regularly visit customers
-
Keyword:
-
mobile cone crusher plant
-
The Machines classification:
-
Andesite mobile cone crusher plant
In Stock Semi Mobile Cone Stone Jaw Crusher Machine Mining Equipment
Applications of In Stock Semi Mobile Cone Stone Jaw Crusher Machine Mining Equipment
Mobile Crusher is a series of rock and construction waste crushing equipment developed by Liming Heavy Industry. It has greatly expanded the concept of crushing operation. Its design concept eliminates the environment, the ground, complex basic configuration and complex logistics which bring customers breaking barriers.
Input size: 0-200mm
Capacity: 100-790 TPH
Processed Materials: Andesite, river stone, limestone, Iron ore, copper ore, gold ore, manganese ore, gravel, granite, basalt,mine ore,quartz,diabase,etc. (For hard stone).
Applications:Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.
Advantages of In Stock Semi Mobile Cone Stone Jaw Crusher Machine Mining Equipment
1.Mobile Crusher is high performance of secondary crushing machine.
2.High capacity integral crushing&screening
3.Belt conveyor self-loaded
4.The automatic-portable conveyor for return material make the installation of the whole plant quite easy.
5.Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.
Specifications of In Stock Semi Mobile Cone Stone Jaw Crusher Machine Mining Equipment
| Technical Data//Model | Y3S1848CS75 | Y3S1860CS160 | Y3S1860HP220 | Y3S2160HP220 | |
| Transportation size(mm) | 12000x2800x4300 | 13400x2820x4350 | 13400x2820x4350 | 13400x2820x4350 | |
| Weight(t) | 28 | 46 | 42 | 43.5 | |
| Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial | |
| Cone Crusher | CS75 | CS160 | HP220 | HP220 | |
| Discharging Belt Conveyor | B800×6M | B800×8M | B800×8M | B1000×8M | |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS1860 | 3YZS1860 | |
| Electric control | standard | control box + control panel | control box + control panel | control box + control panel | control box + control panel |
| Optional | Control box + LCD | Control box + LCD | Control box + LCD | Control box + LCD | |
| Hydraulic leg | standard | 4 | 4 | 4 | 4 |
| optional | 2 | 2 | 2 | 2 | |
| Hydraulic cycliner | standard | 0 | 0 | 0 | 0 |
| Optional | 2 | 2 | 2 | 2 | |
| Genset(optional) (Kw) | 180 | 320 | 440 | 440 | |
Notice for Price:
1. The configuration and price are different according to different requirements.
2. All prices on this page are auto-generated virtual prices. Please contact us for quotation!

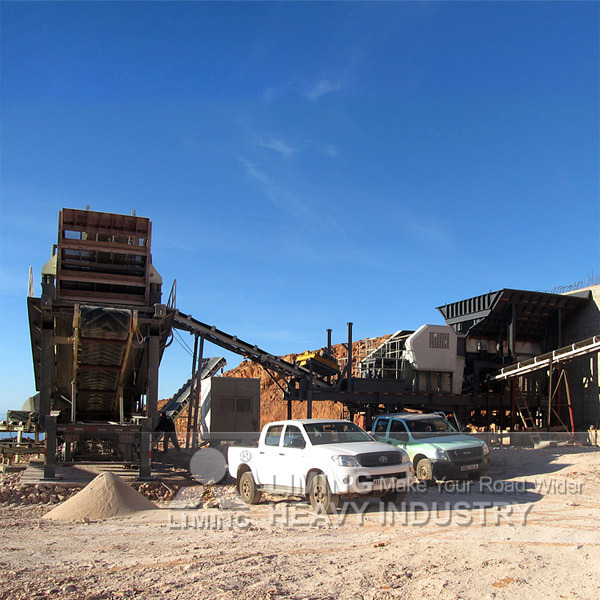

The crushing site of Concrete Recycling Complete Plant Diesel Construction Mobile Crusher
Mobile Crushing Plant for Processing A ndesite in Indonesia
Equipments: Mobile Crushing Plant
Using Time: Since April 2013
Processed Material: Andesite
Application: Construction Aggregate
Auxiliary Equipment: Belt Conveyer
Place of use: Indonesia
The evaluation by customers: Satisfied
Mobile Crusher is exported to more than 130 countries and districts all over the world. We promise to ship about 45 working days after payment. The payment can be L/C, T/T and other negotiation.
Mobile Crusher has obtained Patent Certificate, ISO international quality system certification, European Union CE certification, Russian GOST certification and many other honor certificates.
