- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
Jetmaker
-
Model Number:
-
BW2020A
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
low power
-
Outlet Size:
-
0.4''
-
Power:
-
40Psi, Electric
-
Usage:
-
Water
-
Standard or Nonstandard:
-
Nonstandard
-
Theory:
-
Electromagnetic Pump
-
Color:
-
white
-
Function:
-
bottled water dispenser
-
Water Temperature:
-
0-60 °C
-
Main application:
-
Indoor faucet, coffee machine
Quick Details
-
Application:
-
Automotive Industry, Drinking water treatment, Family Homes, Food and Beverage Industry, Machining
-
Pressure:
-
40Psi, Low Pressure
-
Voltage:
-
115V-230V AC
-
Warranty:
-
1 years
-
Brand Name:
-
Jetmaker
-
Model Number:
-
BW2020A
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
low power
-
Outlet Size:
-
0.4''
-
Power:
-
40Psi, Electric
-
Usage:
-
Water
-
Standard or Nonstandard:
-
Nonstandard
-
Theory:
-
Electromagnetic Pump
-
Color:
-
white
-
Function:
-
bottled water dispenser
-
Water Temperature:
-
0-60 °C
-
Main application:
-
Indoor faucet, coffee machine
Welcome To Jetmaker

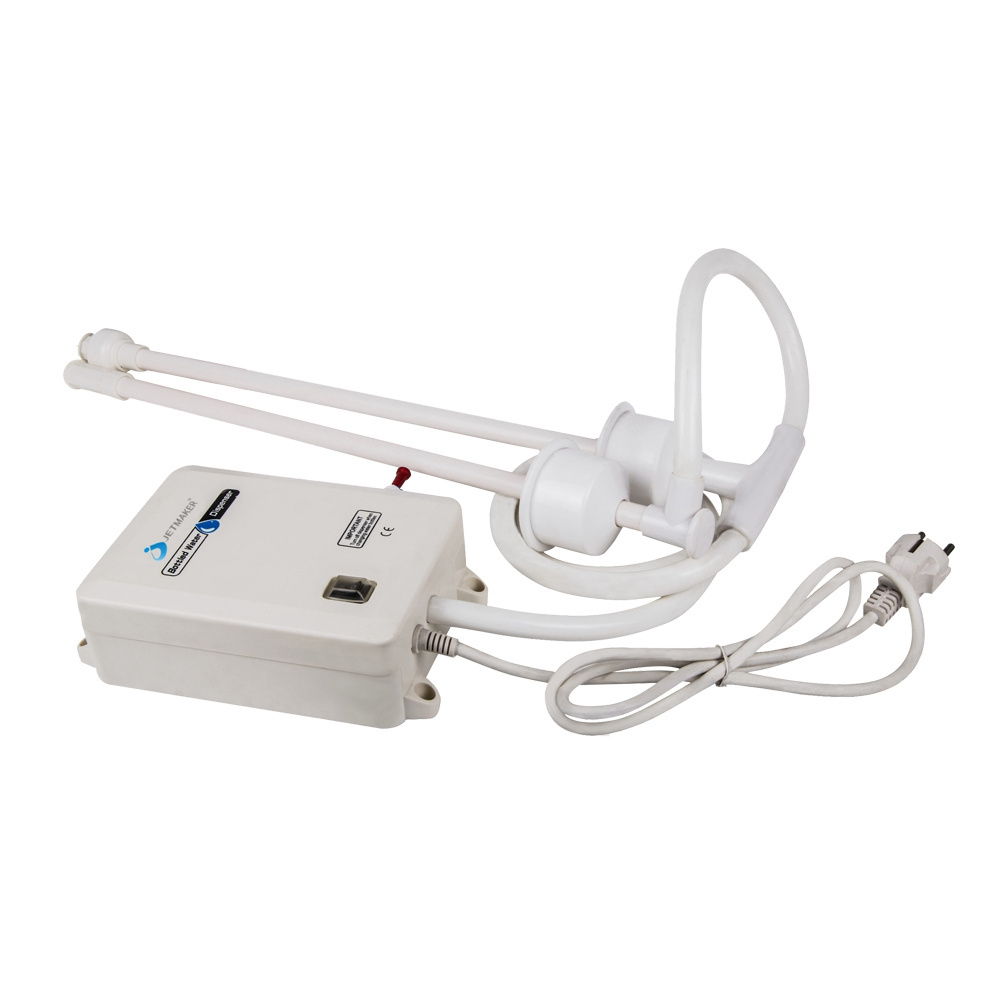

Flojet Bottled Water Dispenser Pump
The Bottled Water Dispensing System will deliver the water under pressure to an inpidual drinking water faucet, the water inlet of a refrigerator for the ice-maker and chilled drinking water tap, and to certain commercial coffee / tea brewers.
Double
Inlet Tube
FEATURES & BENEFITS
Two tubes bottle drinking water pump will deliver the water under pressure to an inpidual drinking water faucet, the water inlet of a refrigerator for the ice-maker and chilled drinking water tap, and to certain commercial coffee / tea brewers.
*Easiest way to connect this to your filtration kit/espresso machine
*Float switch for auto shut-off when bottle is empty
*Built-in check valve to prevent back flow
*Universal seal cap fits most water containers
*Compact size for easy mounting
*Long life motor: ensures years of reliable operation
*Easy installed
*Bottled water dispenser pump included:
1)Suction wand and hose assembly
2)Pump module with On/Off switch
3)6 foot cord with plug
4)20 feet of 1/4" discharge tube
*Universal seal cap: Fits any ,3, 5, and 6 gallon plastic water bottle
*Float switch for auto shut-off when bottle is empty
*Built-in check valve to prevent back flow
*Universal seal cap fits most water containers
*Compact size for easy mounting
*Long life motor: ensures years of reliable operation
*Easy installed
*Bottled water dispenser pump included:
1)Suction wand and hose assembly
2)Pump module with On/Off switch
3)6 foot cord with plug
4)20 feet of 1/4" discharge tube
*Universal seal cap: Fits any ,3, 5, and 6 gallon plastic water bottle
TECHNICAL DATA
*Tuble:
1)Single inlet tuble
2)Double inlet tuble
3)Disassembly inlet tuble
*Voltage:12VDC;110-230VAC
*Wire type:US plug;AU plug;UK plug;EURO plug;Power adapter
*Open flow rate:3.8LPM
*Max. pressure:40PSI
*Cord:6"
*Amp draw:0.25A;0.3A;0.5A:3A
*Dimensions:3.0"*5.5"*7.5"
1)Single inlet tuble
2)Double inlet tuble
3)Disassembly inlet tuble
*Voltage:12VDC;110-230VAC
*Wire type:US plug;AU plug;UK plug;EURO plug;Power adapter
*Open flow rate:3.8LPM
*Max. pressure:40PSI
*Cord:6"
*Amp draw:0.25A;0.3A;0.5A:3A
*Dimensions:3.0"*5.5"*7.5"
|
Model
|
Voltage AC/DC(V)
|
Wire Type
|
Open Flow Rate(LPM)
|
Max Pressure(PSI)
|
Dimensions
|
Max AMPS(A)
|
|
BW1000A
|
115 AC
|
US PLUG
|
3.8
|
40
|
3.0"x5.5"x7.5"
|
0.5
|
|
BW2000A
|
220 AC
|
AU PLUG
UK PLUG EURO PLUG |
3.8
|
40
|
3.0"x5.5"x7.5"
|
0.25
|
|
BW3000A
|
12 DC
|
Only Wire
|
3.8
|
40
|
3.0"x5.5"x7.5"
|
0.3
|
|
BW2020A
|
220 AC
|
US PLUG
|
3.8
|
40
|
3.0"x5.5"x7.5"
|
0.3
|
|
BW1010A
|
115V AC
|
AU PLUG
UK PLUG EURO PLUG |
3.8
|
40
|
3.0"x5.5"x7.5"
|
0.3
|
|
BW4003A
|
110-230AC
|
Power Adapter
|
3.8
|
40
|
3.0"x5.5"x7.5"
|
0.25
|
|
BW4004A
|
110-230AC
|
Power Adapter
|
3.8
|
40
|
3.0"x5.5"x7.5"
|
0.25
|
|
BW6004A
|
110-230AC
|
Power Adapter
|
3.8
|
40
|
3.0"x5.5"x7.5"
|
0.25
|
Details Images
Application
Bottle drinking water pump will deliver the water under pressure to an inpidual drinking water faucet, the water inlet of a refrigerator for the ice-maker and chilled drinking water tap, and to certain commercial coffee / tea brewers.
Two tubes bottle drinking water pump will deliver the water under pressure to an inpidual drinking water faucet, the water inlet of a refrigerator for the ice-maker and chilled drinking water tap, and to certain commercial coffee / tea brewers.
Genuine Jetmaker bottled water system is ideal where portability is key Pump recipe-quality water from commercial bottles to ensure better-tasting hot and cold beverages. The new BW4003A bottled water system is designed to work with coffee/tea makers,refrigerator ice and water dispensers, espresso carts and portable sinks or any use requiring portable potable water.
The BW4003A Bottled Water System is also designed for convenience. The pump automatically shuts off when the water source is depleted and restarts when water is restored. Its compact size supports easy mounting.
Two tubes bottle drinking water pump will deliver the water under pressure to an inpidual drinking water faucet, the water inlet of a refrigerator for the ice-maker and chilled drinking water tap, and to certain commercial coffee / tea brewers.
Genuine Jetmaker bottled water system is ideal where portability is key Pump recipe-quality water from commercial bottles to ensure better-tasting hot and cold beverages. The new BW4003A bottled water system is designed to work with coffee/tea makers,refrigerator ice and water dispensers, espresso carts and portable sinks or any use requiring portable potable water.
The BW4003A Bottled Water System is also designed for convenience. The pump automatically shuts off when the water source is depleted and restarts when water is restored. Its compact size supports easy mounting.
