Quick Details
-
Range of Spindle Speed(r.p.m):
-
6 - 205 r.p.m
-
Width of bed (mm):
-
755
-
Max. Turned Length (mm):
-
1500 mm
-
Spindle Motor Power(kW):
-
22
-
Year:
-
NEW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
Q1338
-
Voltage:
-
220V, 380V, 410V
-
Dimension(L*W*H):
-
4900*2100*1700
-
Weight (KG):
-
12800 KG
-
Name:
-
Q1338 gi pipe threading lathe machine
-
Product type:
-
Metal Cutting
-
Precision:
-
High Precision Machine
-
Model:
-
Q1338
-
Color:
-
BLUE
-
Distance between centers:
-
1500
-
Swing over bed:
-
1000
-
Swing over cross slide:
-
610
-
Spindle hole:
-
390
-
Motor power:
-
22
Quick Details
-
Max. Length of Workpiece (mm):
-
1500/3000
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
390
-
Range of Spindle Speed(r.p.m):
-
6 - 205 r.p.m
-
Width of bed (mm):
-
755
-
Max. Turned Length (mm):
-
1500 mm
-
Spindle Motor Power(kW):
-
22
-
Year:
-
NEW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
Q1338
-
Voltage:
-
220V, 380V, 410V
-
Dimension(L*W*H):
-
4900*2100*1700
-
Weight (KG):
-
12800 KG
-
Name:
-
Q1338 gi pipe threading lathe machine
-
Product type:
-
Metal Cutting
-
Precision:
-
High Precision Machine
-
Model:
-
Q1338
-
Color:
-
BLUE
-
Distance between centers:
-
1500
-
Swing over bed:
-
1000
-
Swing over cross slide:
-
610
-
Spindle hole:
-
390
-
Motor power:
-
22

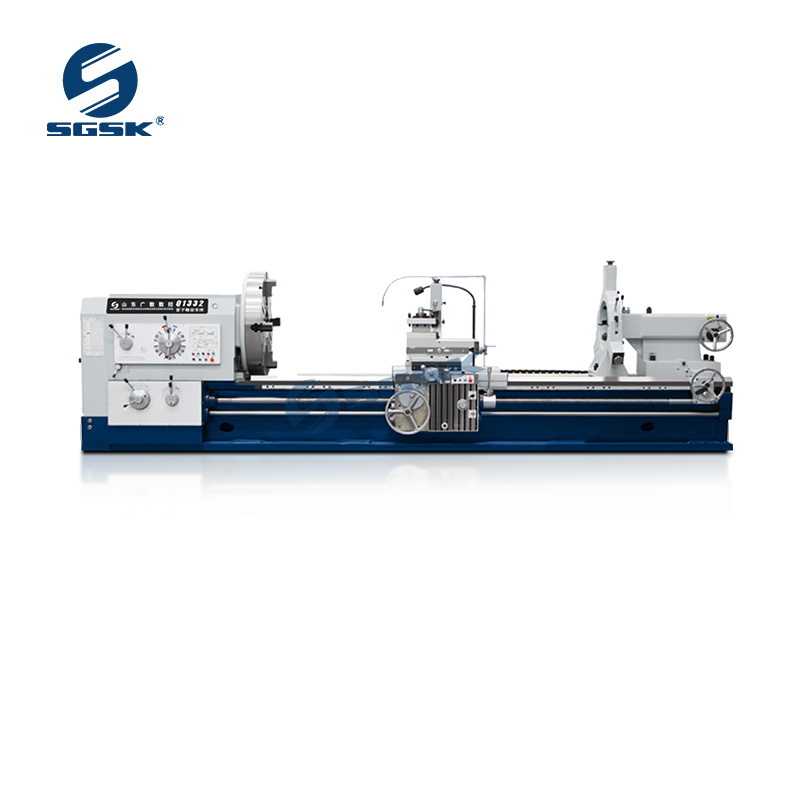

screw-cutting metal lathe for sale craigslist Q1338 gi pipe threading lathe machine
Products Description
Product Paramenters
The main performance characteristics：
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Application:
Q13 series pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
|
SPECIFICATIONS
|
Units
|
Q1338
|
|
Swing over bed
|
mm
|
1000
|
|
Swing over cross slide
|
mm
|
610
|
|
Distance between centers
|
mm
|
1500/3000
|
|
Pipe threading range
|
mm
|
190-380
|
|
Guideway width
|
mm
|
755
|
|
Max. load capacity
|
kg
|
6000
|
|
Spindle bore
|
mm
|
390
|
|
Spindle speed steps
|
-
|
FWD. 9 steps
|
|
Spindle speed range
|
rpm
|
6-205
|
|
Chuck
|
mm
|
φ850 4-jaw
|
|
Turret/tool post
|
-
|
Manual 4 position
|
|
Tool shank size
|
mm
|
45 x 45
|
|
X axis travel
|
mm
|
520
|
|
Z axis travel
|
mm
|
1350/2850
|
|
X axis feed steps /range
|
mm/r
|
32/0.05-0.75
|
|
Z axis feed steps /range
|
mm/r
|
32/0.1-1.5
|
|
X axis rapid traverse
|
mm/min
|
1870
|
|
Z axis rapid traverse
|
mm/min
|
3740
|
|
Metric thread kinds /range
|
mm
|
23/1-15
|
|
Inch thread kinds /range
|
T.P.I
|
22/28-2
|
|
Tailstock quill diameter
|
mm
|
φ160
|
|
Tailstock quill taper
|
-
|
MT6
|
|
Tailstock quill travel
|
mm
|
300
|
|
Main spindle motor
|
kW
|
22
|
|
Rapid traverse motor
|
kW
|
1.5
|
|
Coolant pump motor
|
kW
|
0.125
|
|
Weight for 1500
|
kg
|
12800
|
|
Weight for 3000
|
kg
|
14300
|
|
Dimension for 1500
|
mm
|
4900x2100x1700
|
|
Dimension for 3000
|
mm
|
6400x2100x1700
|
