Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE/ISO
-
Warranty:
-
5 Years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HJ
-
Model Number:
-
HJDXH-48/1000
-
Output Voltage (V):
-
Customized
-
Product name:
-
Integrated energy cabinet
-
Battery temperature line:
-
1*3m line
-
Battery shunt:
-
800Ax2 (fuse)
-
Maximum system capacity Load shunt:
-
'-48V/1000A;total 12 rectifier modules, total 8photovoltaic modules
-
AC input:
-
380Vac, three-phase five-wire
-
AC input switch:
-
125A/3P*1
-
AC output branch (optional):
-
32A/3P*1;16A/1P*3 Maintenance socket *1
-
AC lightning protection:
-
Class C,nominal 20kA
-
Dimensions(mm):
-
2100*900*900mm or Customized size
-
OEM:
-
Customized Specifications
Quick Details
-
Application:
-
Industrial
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE/ISO
-
Warranty:
-
5 Years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HJ
-
Model Number:
-
HJDXH-48/1000
-
Output Voltage (V):
-
Customized
-
Product name:
-
Integrated energy cabinet
-
Battery temperature line:
-
1*3m line
-
Battery shunt:
-
800Ax2 (fuse)
-
Maximum system capacity Load shunt:
-
'-48V/1000A;total 12 rectifier modules, total 8photovoltaic modules
-
AC input:
-
380Vac, three-phase five-wire
-
AC input switch:
-
125A/3P*1
-
AC output branch (optional):
-
32A/3P*1;16A/1P*3 Maintenance socket *1
-
AC lightning protection:
-
Class C,nominal 20kA
-
Dimensions(mm):
-
2100*900*900mm or Customized size
-
OEM:
-
Customized Specifications
Product Description

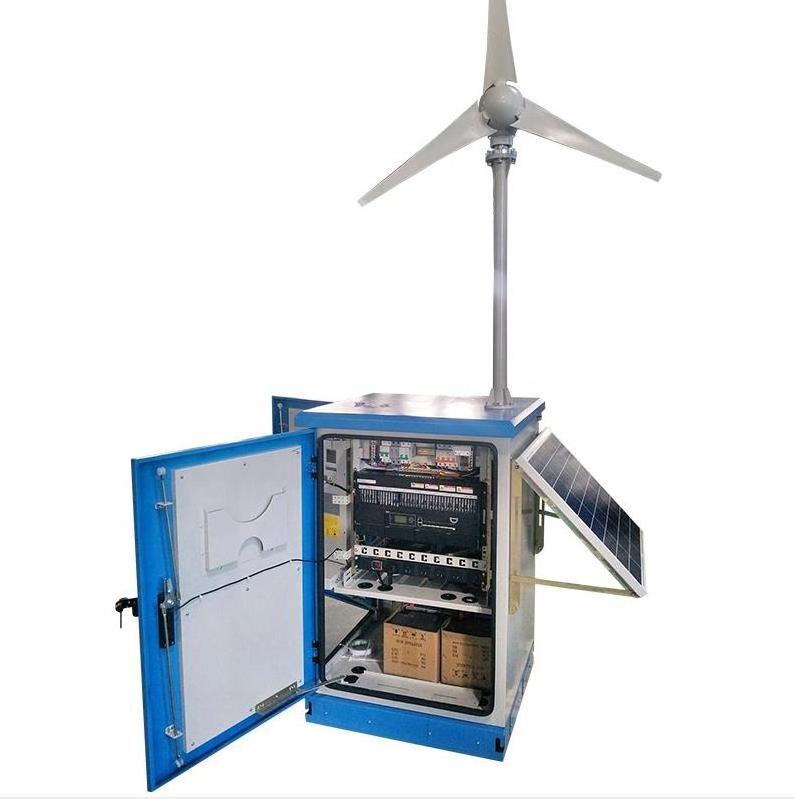

Solar-Wind outdoor integrated cabinet HJGF-XFD-01
Solar outdoor integrated cabinet is an outdoor integrated cabinet made of high-quality metal sheet materials, which can integrate photovoltaic power generation, wind power generation, professional equipment, network communication equipment, system power supply, AC and DC power distribution, monitoring system, temperature control equipment , battery system and lightning protection grounding, and an integrated cabinet that provides outdoor working environment and safety management for base stations. It is mainly used in various outdoor scenarios such as roofs, streets, mountains, railways, and high and low temperature environments.
|
Main Parameter Configuration Table
|
|
|
|
|
|
|||||
|
No.
|
Name
|
Technical parameter
|
Qty.
|
Unit
|
Remarks
|
|||||
|
1
|
Cabinet body
|
The box is made of galvanized sheet with a thickness of 1.5mm, with a welded frame structure, PU insulation layer, 19 "columns * 4
pieces; grounding copper * 1 piece, tray * 1 piece, lightning protection grounding bar * 1; IP55 protection level, blue/gray cabinet; the base is 100mm high, with specific anti-theft and fire protection functions; |
1
|
Set
|
Specific specifications need to be customized according to user needs
|
|||||
|
2
|
Door opening method
|
Side door, front door
|
1
|
Set
|
|
|||||
|
3
|
Temperature control equipment
|
Air conditioning 600W
|
1
|
Set
|
Optional fans, heat exchangers
|
|||||
|
5
|
Lighting
|
DC48V, 5W LED light, including access control switch
|
1
|
Set
|
Door opening light on
|
|||||
|
6
|
Tray
|
Cold rolled steel plate 1.2mm, bearing 50KG
|
2
|
Set
|
|
|||||
|
8
|
Wind and solar integrated power supply
|
6U high, cabinet mounted, including fan controller, photovoltaic control module 50A, rectifier module 50A
|
1
|
Set
|
Specific configuration according to load
|
|||||
|
9
|
Lithium iron battery
|
48V 100AH
|
1
|
Set
|
Quantity optional
|
|||||
|
10
|
Photovoltaic modules
|
Single crystal 150W
|
*
|
Set
|
Quantity optional
|
|||||
|
11
|
wind power generation
|
S-type, NE-100W
|
1
|
Set
|
Specific specifications need to be customized according to user needs
|
|||||
|
12
|
Intelligent locks
|
Anti theft structure, outdoor waterproof type, zinc alloy material, three point fixed, intelligent remote unlocking
|
1
|
Set
|
Optional mechanical lock
|
|||||
|
13
|
Power distribution unit
|
AC circuit breaker: input 32A/2P * 1, output 10A/1P * 3, lightning arrester 40KA * 1, DC distribution
|
*
|
Set
|
AC or DC power distribution can be configured according to needs
|
|||||
