Quick Details
-
Brand Name:
-
Mighty
-
Model Number:
-
YE3
-
Frequency:
-
50hz, 50hz
-
Usage:
-
Machinery Equipment
-
Protect Feature:
-
IP55
-
Speed(RPM):
-
3000RPM
-
Power:
-
0.55~375KW
-
Pole:
-
2 /4/6/8
-
Continuous Current(A):
-
S1
-
MOQ:
-
1 Piece
Quick Details
-
AC Voltage:
-
380V
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
China
-
Brand Name:
-
Mighty
-
Model Number:
-
YE3
-
Frequency:
-
50hz, 50hz
-
Usage:
-
Machinery Equipment
-
Protect Feature:
-
IP55
-
Speed(RPM):
-
3000RPM
-
Power:
-
0.55~375KW
-
Pole:
-
2 /4/6/8
-
Continuous Current(A):
-
S1
-
MOQ:
-
1 Piece
Product Description

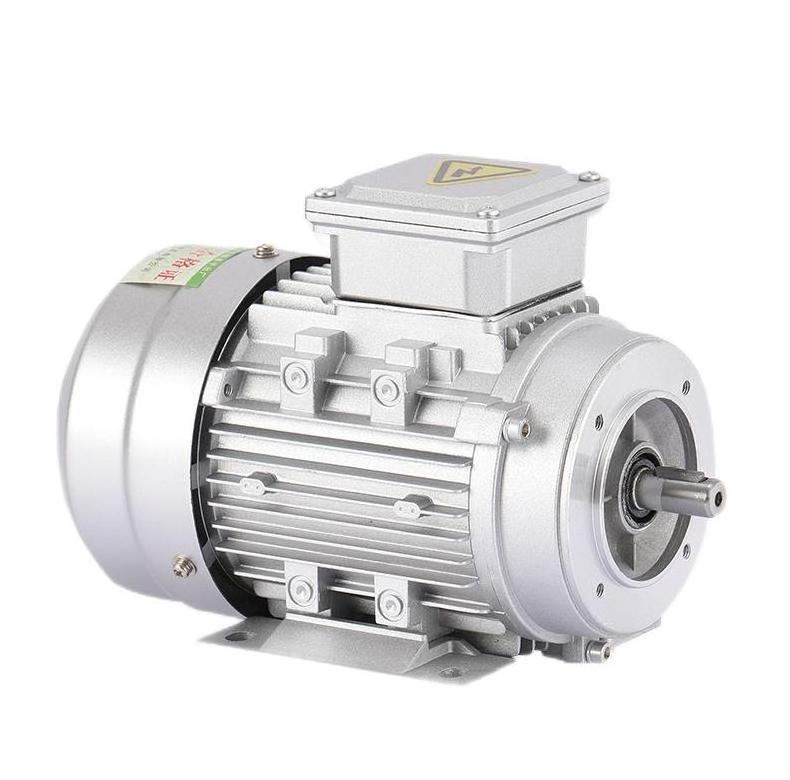

YE3 Super High Efficiency Three Phase Asynchronous Motor
YE3 series motor is developed with high efficiency in order to meet the requirements of the national energy conservation and emission reduction. It has advantages of high efficiency , low noise and good starting performance . It's widely used in the occasions of no special requirements , also as power mating of mechanical equipment such as compressor , pump , fan industries and so on .
1.Basic Characteristics :
Centre height of frame size : 80-355mm
Power range : 0.55 ~ 375kw
Rated voltage and frequency : 380V 50HZ (OEM available )
Protection class : IP55
Duty type : S1 ( continuous , allows starting with full voltage )
Type of cooling : IC411
Power ≤ 3KW is star-connection , ≥3KW is delta-connection .
2.Working conditions :
Working ambient temperature : -15℃~40 ℃。
Altitude : below 1000m .
Please tell us if will use it in special conditions while placing order .
3.Different installation methods
Specification
New and pure copper coil
High precision rotor
High quality bearing
Perfect product
Large stocks
