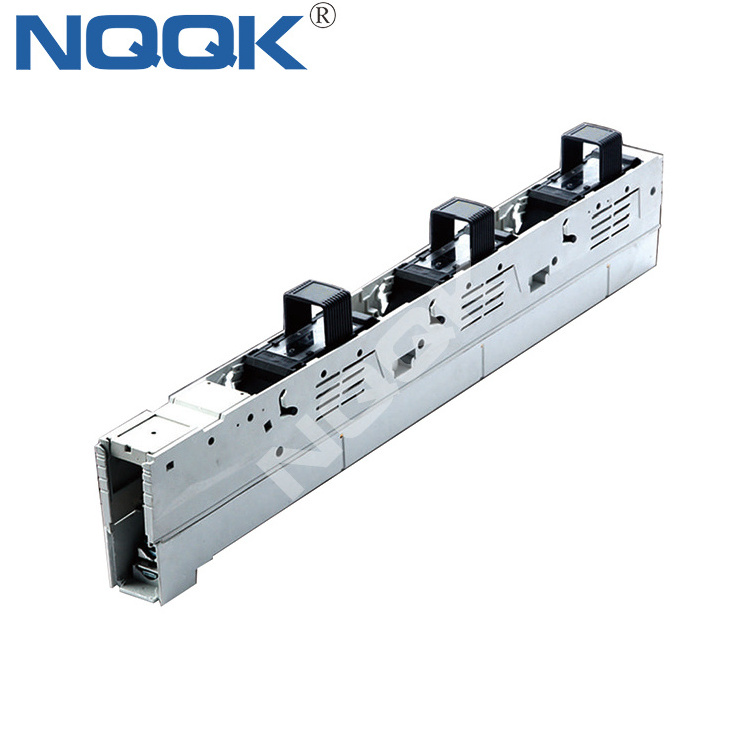

NQQK LMHR160S 160A strip type three phase NH vertical fuse rail disconnector Isolating switch
NQQK LMHR160S 160A strip type three phase NH vertical fuse rail disconnector Isolating switch
NQQK LMHR160S 160A strip type three phase NH vertical fuse rail disconnector Isolating switch
NQQK LMHR160S 160A strip type three phase NH vertical fuse rail disconnector Isolating switch

NQQK LMHR160S 160A strip type three phase NH vertical fuse rail disconnector Isolating switch

FOB Reference Price: Get Latest Price
≥1 Pieces
US $33
≥50 Pieces
US $31.15
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
LMHR160S
Max. Current:
160A
Name:
fuse disconnector switch
Certificate:
CE Rohs
Color:
Black
Rated current:
Max 160A
Hz:
50/60
Ui:
1000V
Degre Of Protechion:
IP30
Fixed way:
Screw,Hook,other custom accessories
The default connection:
Pressure connecting
the other connection mode:
Screw & Cable lug

Quick Details

Max. Voltage:
690V
Place of Origin:
Zhejiang, China
Brand Name:
NQQK
Model Number:
LMHR160S
Max. Current:
160A
Name:
fuse disconnector switch
Certificate:
CE Rohs
Color:
Black
Rated current:
Max 160A
Hz:
50/60
Ui:
1000V
Degre Of Protechion:
IP30
Fixed way:
Screw,Hook,other custom accessories
The default connection:
Pressure connecting
the other connection mode:
Screw & Cable lug

LMH7 LMHR160S strip type three phase NH vertical fuse rail disconnector Isolating switch

Product Description

LMHR Series Strip Type Fuse Rail

LMHR Series Strip Type Fuse Fuse Switch Disconnector

LMHR18 Series Square Type Fuse Fuse Switch Disconnector

Complete Application-Box

Accessories of Fuse Switch Disconnector

LMHR series strip type fuse fuse switch disconnector

Type of switch disconnector LMHR160S
Ue 415,500,690
Ith 160A
Hz 50/60
Ui 1000V
Uimp 10kv
Use classes 380V 415V 500V 690V
AC21B A22B AC23B
Degre Of Protechion IP30
Fuse size 0
Ue 380V 415V 500V 690V
Ie 160 160 160 160
Wire specifications 70mm²
The default connection Pressure connecting
the other connection mode Screw & Cable lug
Installation of busbar Punched rectangle busbar Unpunched rectangle busbar Other
Fixed way Screw Hook other custom accessories

NQQK Electric Factory in Liushi town, the Electrical Capital of China, founded in 2000. NQQK  is a pecializing in product development, designing, production, sales of low voltage strip type fuse switch disconnector. Our Corporation has strong technical capabilities, professional know-know, and advanced manufacturing equipment, With the standard quality control, we continuously pursuit highest standard of quality and make “NQQK” a well-known and trustworthy brand in the world. We have got IS09001 approval, CE, ROSH certificate as well as CCC on all products. The products are widely used for electrical power supply in industrial applications, large buildings, office centres, factories, ships, airport and everywhere protection against overload is essential. Our products are popular throughout China and oversea. Besides, our corpration creats mechanism management and production benefits mutually to achieve enterprise’s development.

LMH6 series  LMHR160J fuse link holder switLMH6 series LMHR400W fuse link holder switch disconnector Isolating switch LMH6 series LMHR400LMH7 LMHR160S strip type tNQQK LMHR160S 160A strip type three phase NH vertical fuse rail disconnector Isolating switch NQQK LMHR160S 160A strip type three phase NH vertical fuse rail disconnector Isolating switch
