Quick Details
-
Place of Origin:
-
Henan, China
-
Power:
-
5.5hp
-
Dimension(L*W*H):
-
1080*350*850mm
-
Weight:
-
350 kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
New type manual gasoline plate compactor price
-
Excitation frequency:
-
93HZ
-
Engine:
-
Honda GX160 5.5HP
-
Engine type:
-
Gasoline air cooling
-
Work speed:
-
34m/min
-
Exciting force:
-
10.5KN
-
Compaction depth:
-
200mm
-
Plate size:
-
500*230mm
-
Certification:
-
CE ISO
Quick Details
-
Application:
-
Compaction
-
Brand Name:
-
Pasen
-
Model Number:
-
PHS-60
-
Place of Origin:
-
Henan, China
-
Power:
-
5.5hp
-
Dimension(L*W*H):
-
1080*350*850mm
-
Weight:
-
350 kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
New type manual gasoline plate compactor price
-
Excitation frequency:
-
93HZ
-
Engine:
-
Honda GX160 5.5HP
-
Engine type:
-
Gasoline air cooling
-
Work speed:
-
34m/min
-
Exciting force:
-
10.5KN
-
Compaction depth:
-
200mm
-
Plate size:
-
500*230mm
-
Certification:
-
CE ISO

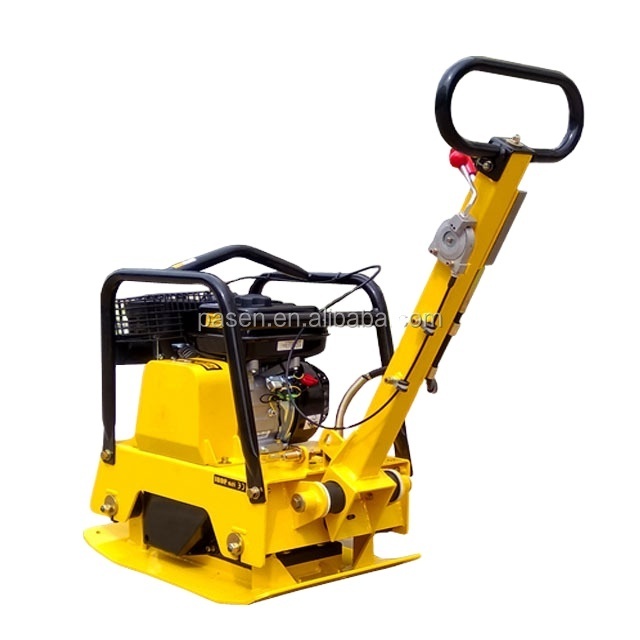

New type manual gasoline plate compactor price
Introduction of the machine
This machine is concrete earth compactor, which mainly used for asphalt, soil, sand, gravel, and mixer soils in the areas of construction, civil or road engineering, gardening, it is easy to handle, have high performance, highly durable, easy operation, user friendly low maintenance design.
Features of the machine
One-way compactor
1. Folding handle for easy transportation and shortage.
2. The open plate provides self cleaning.
3. HONDA Engine 5.5hp gasoline air cooling.
4. Sealed belt cover to prevent sand and soil in.
Two-way compactor
1. The unique design of electric start-up.
2. Gasoline power system, more powerful force, better compaction effect.
3. Low vibration combined with high compaction performance.
4. Handle hydraulic system for forward&reverse.
Specification of the machine
| Model | PHS-60 | PHS-90 | PHS-125 | PHS-160 |
| Engine | HONDA GX160 | |||
| Engine type | Gasoline air cooling | |||
| Power | 5.5HP | |||
| Work speed | 34m/min | 23m/min | 28m/min | 27m/min |
| Exciting force | 10.5KN | 15KN | 25KN | 30.5KN |
| Exciting frequency | 93HZ | 92HZ | 72HZ | 67HZ |
| Work efficiency | 423sq.m./hr | 405 | 400 | 500 |
| Compaction depth | 200mm | 300mm | 300mm | 500mm |
| Weight | 66kg | 90kg | 125kg | 159kg |
| Plate size | 500*350mm | 530*500mm | 620*400mm | 730*370mm |
| Dimension | 1080*350*850mm | 1100*500*850mm | 1200*400*930mm | 1250*370*930mm |
Pictures of the machine
Related machine
Road grooving machine Asphalt sealing machine
Some details of this machine
|
Delivery Time |
Within 5-7 working days after receiving clients’ payment. |
|
Payment Terms |
T/T, L/C, D/P, D/A, Escrow, Paypal, Western Union |
|
Packing |
A. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea.
|
|
Quality Guarantee Terms |
Quality guarantee term is for one year. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
Pictures of packaging and shipping
