ZAY7032 TTMC Bench Type Milling Machine with MT3 Spindle, High Quality Drilling Milling Machine for Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $1830

≥10 Sets

US $1600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Spindle Taper:: MT3

Range of Spindle Speed(r.p.m):: 80 - 2080 r.p.m

Place of Origin:: Shandong, China

Brand Name:: TTMC

Model Number:: ZAY7032

Table Travel (mm):: 500X175

Spindle Motor Power(kW):: 0.75

Voltage:: According to customer request

Dimension(L*W*H):: 1020x820x1160 mm

Weight (KG):: 280

Marketing Type:: Belt Drive Milling Machine

Item No.:: 221102

Model:: ZAY7032

Table size:: 800x240 mm

Drilling capacity:: 32 mm

Face milling capacity:: 63 mm

End milling capacity:: 20 mm

Distance from spindle nost to table:: 450 mm

Spindle travel:: 130 mm

Spindle taper:: MT3

Quick Details

Table Travel (X) (mm):: 500

Table Travel (Y) (mm):: 175

Table Travel (Z) (mm):: 130

Spindle Taper:: MT3

Range of Spindle Speed(r.p.m):: 80 - 2080 r.p.m

Place of Origin:: Shandong, China

Brand Name:: TTMC

Model Number:: ZAY7032

Table Travel (mm):: 500X175

Spindle Motor Power(kW):: 0.75

Voltage:: According to customer request

Dimension(L*W*H):: 1020x820x1160 mm

Weight (KG):: 280

Marketing Type:: Belt Drive Milling Machine

Item No.:: 221102

Model:: ZAY7032

Table size:: 800x240 mm

Drilling capacity:: 32 mm

Face milling capacity:: 63 mm

End milling capacity:: 20 mm

Distance from spindle nost to table:: 450 mm

Spindle travel:: 130 mm

Spindle taper:: MT3

Product Overview

TTMC Bench Type Drilling Milling Machine

The ability to drill and mill with one machine save time and money and is perfect for maintenance departments, machine, welding, job, or even home shops. An optional stand is also available, if bech space is at a premium

Table travel 500x175mm

FEATURES AT A GLANCE

Quiet B section belt drive system

Milling head rotates 360º on column
Extra large 820 x 240mm ground work table with T-slots

12 steps spindle speed

Fine feed hand wheel operating quill feed Forward and reverse on/off switch with emergency stop 3MT spindle Adjustable table and drill length stops

Spindle lock for quill
Table locks on both axis

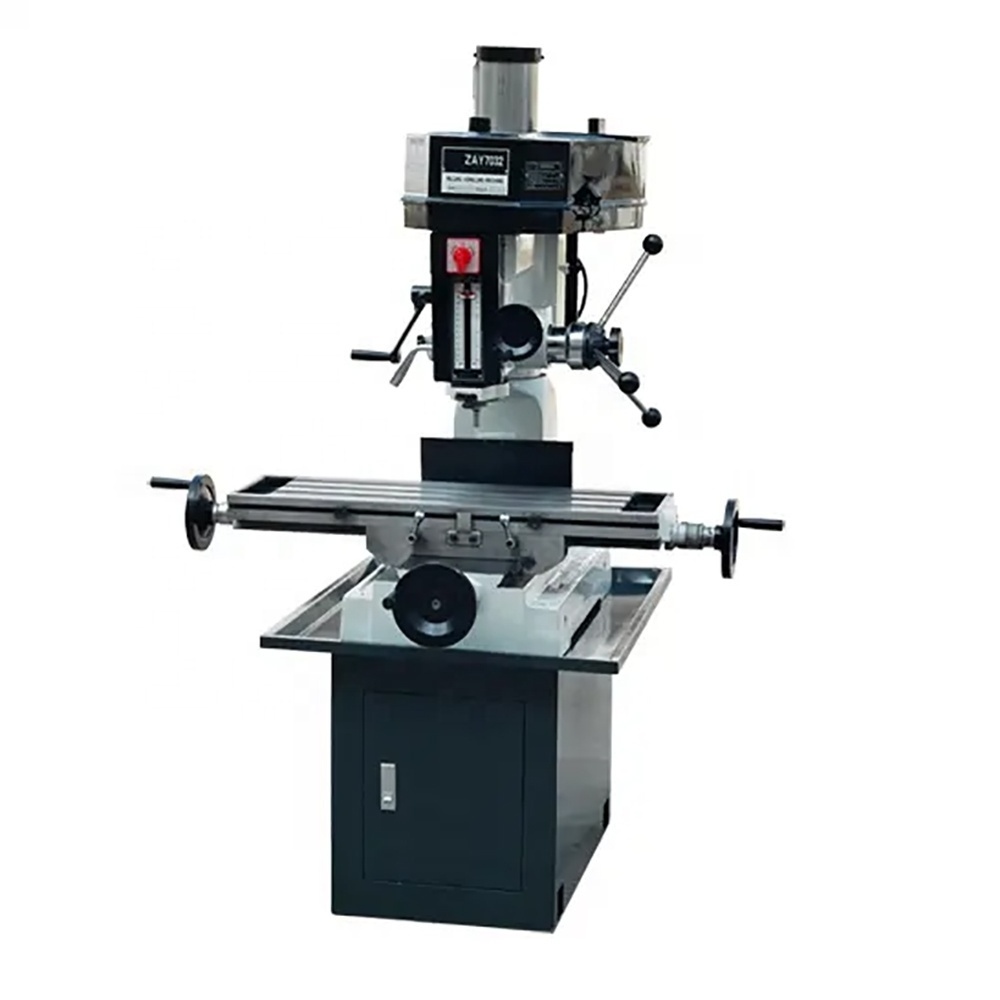

** the left picture with optional stand and tray

Standard Accessories

* Allen wrench,
* Wedge
*Wrenches,
*Drill chuck arbor,
*Screw,
*Draw bar and washers.

Optional Accessories

*Machine stand and chip tray
*Workng lamp;
*Coolant system;
* Drill chuck;
*Milling cutter holder;
*Mill chuck;
*Power feed attachment;
*Auto-tapping system;
*Parallel vice;
*Clamping kits(58pcs);
*Rotary table

PRODUCT SPECIFICATIONS

Bench Type Drilling Milling Machine

Item No.	221101	221102	221103	221104
Model	ZAY7020	ZAY7032	ZAY7040	ZAY7045
Drilling capacity	20 mm	32 mm	40 mm	45 mm
Face milling capacity	63 mm	63 mm	80 mm	80 mm
End milling capacity	20 mm	20 mm	32 mm	32 mm
Distance from spindle nose to table	435 mm	450 mm	450 mm	450 mm
Distance from spindle nose to column	181.5 mm	203.5 mm	203.5 mm	203.5 mm
Spindle travel	85 mm	130 mm	130 mm	130 mm
Spindle taper	MT3 or R8	MT3 or R8	MT4 or R8	MT4 or R8
Step of spindle speed	12	12	12	12
Speed range @50HZ	100-2200 rpm	80-2080 rpm	80-2080 rpm	80-2080 rpm
Speed range @60HZ	120-2640 rpm	100-2500 rpm	100-2500 rpm	100-2500 rpm
Swivel angel of headstock	360°	360°	360°	360°
Table size	520x160 mm	800x240 mm	800x240 mm	800x240 mm
Table travel (X, Y)	290x140 mm	500x175 mm	500x175 mm	500x175 mm
Motor power	0.55 kW	0.75 kW	1.1 kW	1.5 kW
Packing size	62x75x100 cm	102x82x116 cm	102x82x116 cm	102x82x116 cm
N.W./G.W.	130/190 kg	280/330 kg	283/333 kg	285/335 kg
