①PLC automatic control is adopted to realize automatic puling and turning of the plate to collect liquid, with a high degree of automation and reducing operators.
②The automatic liquid contacting and turning plate device is adopted to completely solve the separation of slag and water, improve product quality and beautify the environment.
③The filter plate adopts imported polymer PE patented technology and high-pressure compression molding to ensure a longer service life of each filter plate.
④According to the performance, specific gravity, and project of the materials, 3-6 filter plates can be selected and equipped with high-efficiency at a time according to customer needs to save unloading time. General materials can increase the solid content rate by 10%.
⑤ Adopt high-standard production technology and technology, with excellent quality, to ensure that each product is at the leading level in the industry
⑥Various configurations such as elector-hydraulic integrated automatic control and relay control, simple operation panel:
⑦ High working pressure, large output low energy consumption, stable and reliable, it is an ideal solid-liquid separation equipment.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Depending on the product
-
Power:
-
Depending on the product
-
Weight:
-
32300 kg
-
Dimension(L*W*H):
-
Depending on the product
-
Filtration Area:
-
600㎡
-
Plate size:
-
1800mm
-
Thickness of filter plate:
-
80mm
-
Thickness of filter cake:
-
40mm
-
Chamber No.:
-
120 pcs
-
Total Volume:
-
10.97mm³
-
External dimension:
-
13550*2500*2550mm
-
Customization:
-
Support
-
Terms of trade:
-
EXW Quanzhou
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CHUANGLV
-
Voltage:
-
Depending on the product
-
Power:
-
Depending on the product
-
Weight:
-
32300 kg
-
Dimension(L*W*H):
-
Depending on the product
-
Filtration Area:
-
600㎡
-
Plate size:
-
1800mm
-
Thickness of filter plate:
-
80mm
-
Thickness of filter cake:
-
40mm
-
Chamber No.:
-
120 pcs
-
Total Volume:
-
10.97mm³
-
External dimension:
-
13550*2500*2550mm
-
Customization:
-
Support
-
Terms of trade:
-
EXW Quanzhou
Products Description
Feature
|
WMZ1800-UF-K3

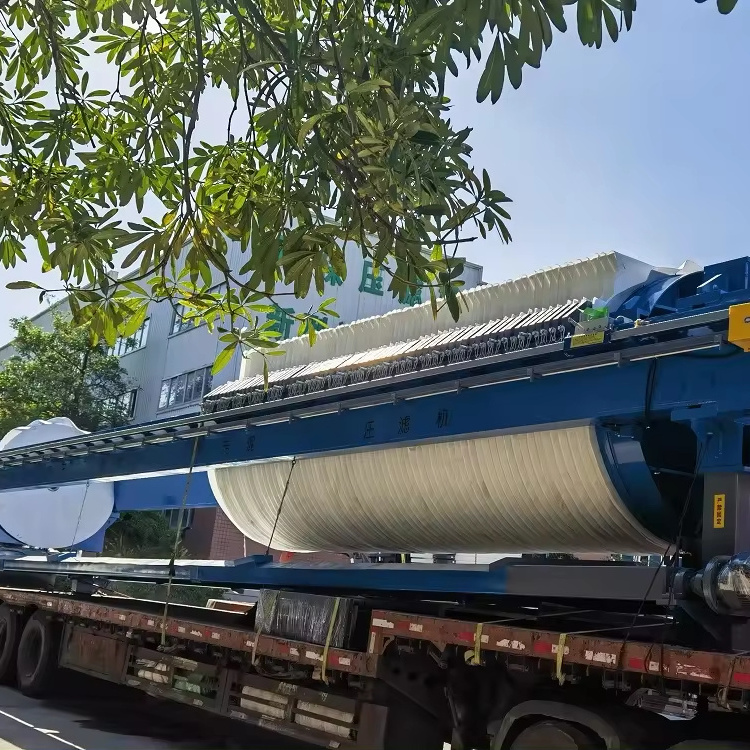

Circular plate high pressure filter press 1800 series （Hydraulic Pressing）.
Choice：Automatic plate shift device & Automatic gathering liquid tray device & Quick-operating
（shift 2 or3 plates）
|
|
|
|
|
|
|
|
|
||||||||
|
U-plastic filter plate ( 72mm thk ）； Filter cloth ( 1mm thk/ plate )
Shift method: Quick-operating, shift 2 plates or shift 3 plates
|
|
|
|
|
|
|
|
|
||||||||
|
Filtration
Area (m²) |
*500
|
*550
|
*600
|
*650
|
*700
|
*750
|
*800
|
|
||||||||
|
Plate
Size (mm) |
φ1800
|
φ720
|
φ720
|
φ720
|
φ720
|
φ720
|
|
|
||||||||
|
Thickness of
Filter Plate (mm) |
80
|
50
|
50
|
50
|
50
|
50
|
50
|
|
||||||||
|
Thickness of
Filter cake (mm) |
40
|
25
|
25
|
25
|
25
|
25
|
25
|
|
||||||||
|
Chambers
No. (pc) |
100
|
110
|
120
|
130
|
140
|
150
|
160
|
|
||||||||
|
Total
Volume (m³) |
9.13
|
10.05
|
10.97
|
11.89
|
12.81
|
13.73
|
14.65
|
|
||||||||
|
External dimension
LxW×H (mm) |
12000×2500×2550
|
12770×2500×2550
|
13550×2500×2550
|
14340×2500×2550
|
15140×2500×2550
|
15920×2500×2550
|
16670×2500×
2550
|
|
||||||||
|
Dimension of
installed Base (mm) |
10060
|
10830
|
11610
|
12400
|
13200
|
13980
|
14730
|
|
||||||||
|
Cylinder
Pressure (Mpa)
|
≤25
|
≤20
|
≤20
|
≤20
|
≤20
|
≤20
|
≤20
|
|
||||||||
|
Working
Pressure (Mpa) |
≤1.6
|
|
|
|
|
|
|
|
||||||||
|
Motor
Power (kw) |
15
|
|
|
|
|
|
|
|
||||||||
|
Machine
Weight (kg) |
28700
|
30500
|
32300
|
34100
|
35900
|
37700
|
39500
|
|
||||||||
