Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RuiFeng
-
Model Number:
-
RF
-
Packing:
-
Carton Box
-
Product name:
-
Waterproof Push Button Switch
-
Material:
-
Nickel Plated Brass
-
Operation type:
-
Momentary
-
Color:
-
Red Yellow Green Blue White
-
Application:
-
General-Purpose
-
Head shape:
-
Flat Round
-
Function:
-
OFF-ON
-
Mounting hole diameter:
-
10/12/16/19/22/25/28/30/40mm
-
Terminal type:
-
Pin Teminal
-
Certification:
-
CCC
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RuiFeng
-
Model Number:
-
RF
-
Packing:
-
Carton Box
-
Product name:
-
Waterproof Push Button Switch
-
Material:
-
Nickel Plated Brass
-
Operation type:
-
Momentary
-
Color:
-
Red Yellow Green Blue White
-
Application:
-
General-Purpose
-
Head shape:
-
Flat Round
-
Function:
-
OFF-ON
-
Mounting hole diameter:
-
10/12/16/19/22/25/28/30/40mm
-
Terminal type:
-
Pin Teminal
-
Certification:
-
CCC

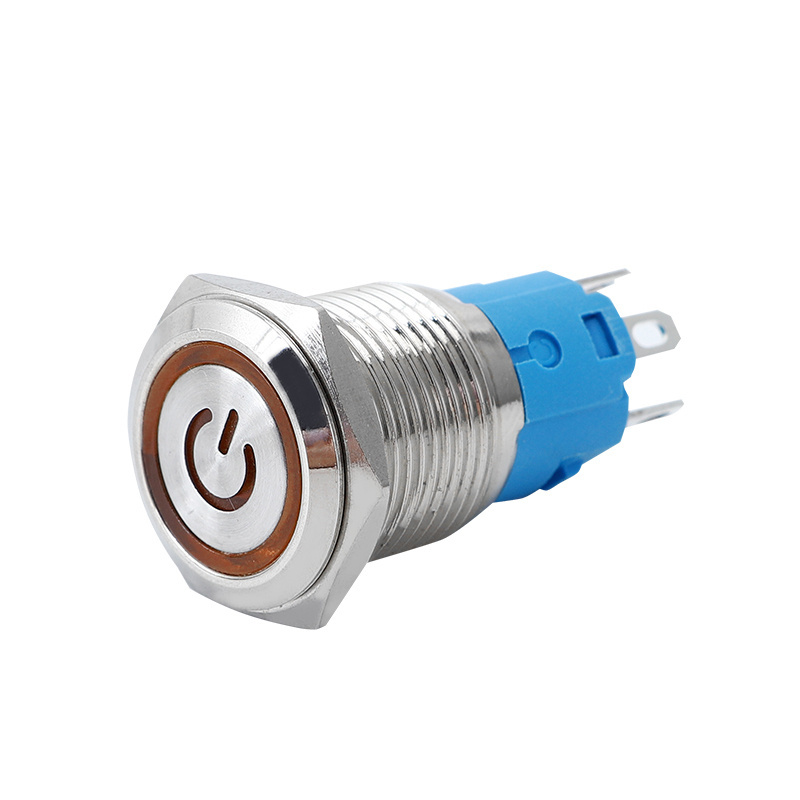

Metal Push Button Switch Momentary Latch 10mm 12mm 19mm 22mm 30 mm 5v 12V LED NO NC On Off
Kewei Push Button Switch
Mounting Hole: 10mm 12mm 19mm 22mm 30 mm, durable for longer lifetime can up to 500,000 cycles.
Easy to install - Round latching switch with screw clamp type terminals to make fitting very easy, 2 pins
Material: High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
Wide Application ,can be used in wet or dusty environment.
Feature :Stable Current;Long life;Flame-resistant Fire;Waterproof,explosionproof;Anti-Vandal non-corrosive;Large contact surface
| Model description | |
| KW | KEWEI code |
| Mounting hole diameter |
6mm,8mm,10mm,12mm,16mm,19mm, 22mm,25mm,28mm,30mm,35mm,40mm |
| Shell material | S :Stainless Steel N : Brass plating nickel A :Aluminum oxide |
| Head shape |
P -Flat G -High Q -Domed M -mushroom J -Emergency X2 -Two bit knob X3 - Three bit knob Y2 -Two bit key Y3 -Three bit key |
| Switch Combination | 10-1NO/NC 11-1NO1NC 22:2NO2NC |
| Connection type | Y: Solder terminal J: Screw terminal |
| Operation types |
F :MOMENTARY (RESET) Z :LATCHING(MAINTAINED) |
| LED illumination types |
E :Ring LED E+DY : Ring +Power symbol LED DY : Power symbol LED D :Dot LED CL :Customized LED |
| LED Color |
Yellow Blue Red Green Orange White BI-Color,TRI-Color R G Y O B W P R G R B |
| LED Voltage | 3V/5V/6V/12V/24V/36V/48V/110V/220V |
| Mounting Hole Diameter | 8mm 10mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm |
| Head shape | High round head/ Flat head |
| Illuminated or not | Yes |
| Terminal type | Pin terminals 5 Pin 6pin |
| Button Color | Red Green Yellow Blue White Sliver Black |
|
Shell material/press key Material |
Stainless steel/ Brass plating nickel/aluminum oxide color,According to the request |
| Diffuser Material | Environmental protection PC |
| Nut | Brass Plated Nickel |
| Base/Bottom/Insert | High flame retardant PA66 |
| Solder pin | Silver plated/gold |
| Spring | Imported steel wire |
| Switch Combination | 1NO1NC/2NO2NC |
| Switch Rating | 3A/250VAC |
| Operation types | Momentary or Latching |
| Protection Level | IP65(IP67), IK08 |
| Ambient temperature | -20℃~+55℃ |
| Electrical life | ≥50,000 times |
| Mechanical life | ≥500,000 times |
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥1000mΩ |
| Dielectric strength | 1500VAC |
| Nut torque | 5~14Nm |
| Panel thickness | ≤10mm |
| Accessories | O-ring, Nut |
| Customized requirement | Acceptable |
