Quick Details
-
Brand Name:
-
CYKY
-
Model Number:
-
CY-USP-G-LD
-
Product name:
-
2.4MHz Ultrasonic Enhanced Bubbler
-
Application:
-
Special particle Formation
-
Certificate:
-
CE
-
Voltage:
-
AC 220V
Quick Details
-
Warranty:
-
one year
-
Power:
-
Electronic
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CYKY
-
Model Number:
-
CY-USP-G-LD
-
Product name:
-
2.4MHz Ultrasonic Enhanced Bubbler
-
Application:
-
Special particle Formation
-
Certificate:
-
CE
-
Voltage:
-
AC 220V

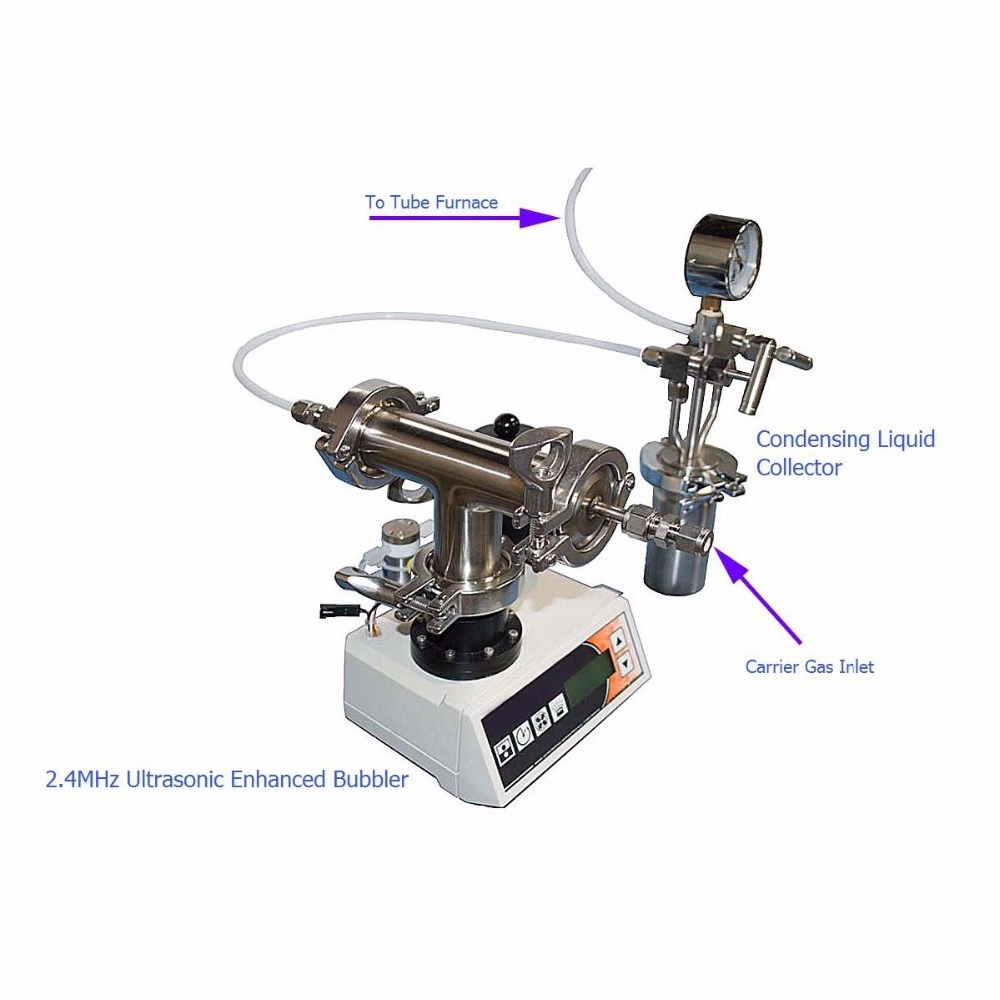

Laboratory 2.4MHz Ultrasonic Enhanced Bubbler for aerosol generation With Condensing Liquid Collector
CY -USP-G-LD is a 2.4MHz Ultrasonic Enhanced Bubbler for aerosol generation. It can be used in line with CYKY Tubing Furnaces to form a versatile synthetic system for nanostructured oxide materials
Features
·2.4MHz Ultrasonic Enhanced Bubbler can "evaporate" catalyst liquid with literally no heat generated.
·304 Stainless Steel 1.5" sanitary TEE fitting with 1/4'' tube fittings enable the use of carrier gas
·Fluoropolymer coated liquid container with fluoropolymer seals
·Microprocessor based control allows the user program operating parameters (time and the rate at which particles are being generated) into the unit, handling a wide variety of applications for accurate particle generation.
·Fluoropolymer optical sensor and Fluoropolymer valve for keeping the liquid level to the correct height and preventing damage to the nebulizing element, the unit should run in dry condition
· Stainless steel liquid condensing collector connects inline with the ultrasonic bubble can prevent condensing liquid from streaming into the furnace tube chamber.
·Using quick clamps allows easy removal of components for cleaning or adapting the device with simple connections to gas supply
Technical parameter
|
Input Voltage |
AC 220V 50Hz |
|
Ultrasonic frequency |
2.4MHz Ultrasonic Generator |
|
Power setting |
0 to 100% of the full output capability, in 5% increments |
|
Net Weight |
5KG |
|
Shipping Dimensions |
12'' Lx 12'' Wx 12'' H |
|
Warranty |
One year limited manufacturer warranty with lifetime support (consumable parts such as O-rings are not covered by the warranty). |
Pictures
Package
About us
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.We sincerely welcome friends from the world come to visit us.
