Quick Details
-
Model Number:
-
LS-75HD
-
Place of Origin:
-
Henan, China
-
Volume:
-
75L
-
Power:
-
4.5kw
-
Voltage:
-
can be customized
-
Working pressure:
-
0.22Mpa
-
Working temp.:
-
134℃
-
Adjustment of temperature:
-
105-134℃
-
Timer:
-
0-99min/0-99h59min
-
Product name:
-
medical sterilization 75L 100L hand wheel steam sterilizer autoclave
-
Certificate:
-
CE; ISO
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Free spare parts
-
Brand Name:
-
Nanbei
-
Model Number:
-
LS-75HD
-
Place of Origin:
-
Henan, China
-
Volume:
-
75L
-
Power:
-
4.5kw
-
Voltage:
-
can be customized
-
Working pressure:
-
0.22Mpa
-
Working temp.:
-
134℃
-
Adjustment of temperature:
-
105-134℃
-
Timer:
-
0-99min/0-99h59min
-
Product name:
-
medical sterilization 75L 100L hand wheel steam sterilizer autoclave
-
Certificate:
-
CE; ISO
Medical sterilization machine 35L 75L 100L hand wheel steam sterilizer autoclave
1.Feature and Description
l .Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging auto matically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.Used for sterilization of medical instruments, medical cotton products.
11.Fully stainless steel SUS304/AISI 304 -3mm
12.24 months warranty
13.Possible to install drying system according request

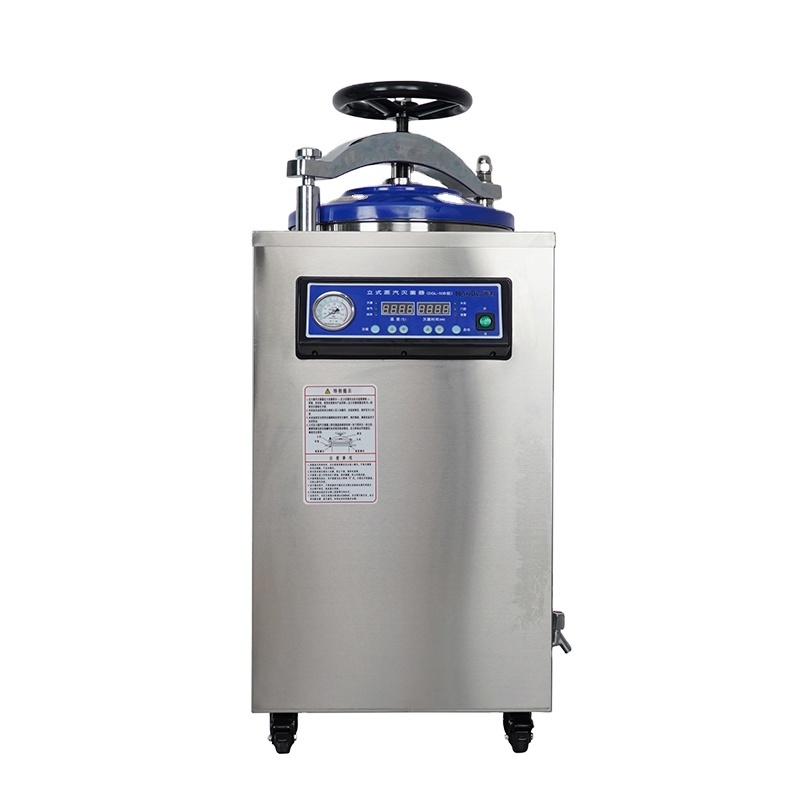

2.Picture for our product
3.Usage and Application
The vertical cylindrical pressure steam sterilizer is installed with am electrical heaterm an automatically pressure-temperature controller, a safety valve, a releasing valve, a pressure-temperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater, it has the advantages of effective sterilization, convenient operation, safe, less electrocity consuming and cheap, it is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
4.Technical data
Techinical data/Model Digital | LS-35HD | LS-50HD | LS-75HD | LS-100HD |
Chamber volume | 35L 318*450mm | 50L 340*550mm | 75L 400*600mm | 100L 440*650mm |
Working pressure | 0.22Mpa | |||
Working temperature | 134C | |||
Max.working pressure | 0.23Mpa | |||
Heat average | ≤±1C | |||
Timer | 0-99min/0-99hour59min | |||
Adjustment of temperature | 105-134C | |||
Power | 2.5kw/AC220/110V.50/60HZ | 3KW/ac220/110v 50/60hz | 4.5kw/AC220/110V 50/60HZ | |
Overall dimension mm | 450*450*1010 | 510*470*1130 | 560*560*1120 | 540*5601250 |
5.Packing and Shipping
