Quick Details
-
Dimension(L*W*H):
-
5917*2350*3608
-
Weight:
-
1800kg
-
Features:
-
high quality
-
Warranty:
-
2000 Working Hours
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
backhoe loader 4x4 compact tractor with front end loader and backhoe
-
Model:
-
B877F
-
Engine model:
-
YC4A105Z-T20
-
Engine type:
-
In-line, water-cooled, four-stroke, turbocharged,direct injection
-
Number of cylinders:
-
4
-
Brand:
-
SDLG
-
Engine power:
-
75
-
Working system:
-
Hydraulic pilot control
-
Local Service Location:
-
Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
Certification:
-
ISO
Quick Details
-
Application:
-
backhoe, Building
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDLG
-
Dimension(L*W*H):
-
5917*2350*3608
-
Weight:
-
1800kg
-
Features:
-
high quality
-
Warranty:
-
2000 Working Hours
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
backhoe loader 4x4 compact tractor with front end loader and backhoe
-
Model:
-
B877F
-
Engine model:
-
YC4A105Z-T20
-
Engine type:
-
In-line, water-cooled, four-stroke, turbocharged,direct injection
-
Number of cylinders:
-
4
-
Brand:
-
SDLG
-
Engine power:
-
75
-
Working system:
-
Hydraulic pilot control
-
Local Service Location:
-
Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
Certification:
-
ISO
Product Description

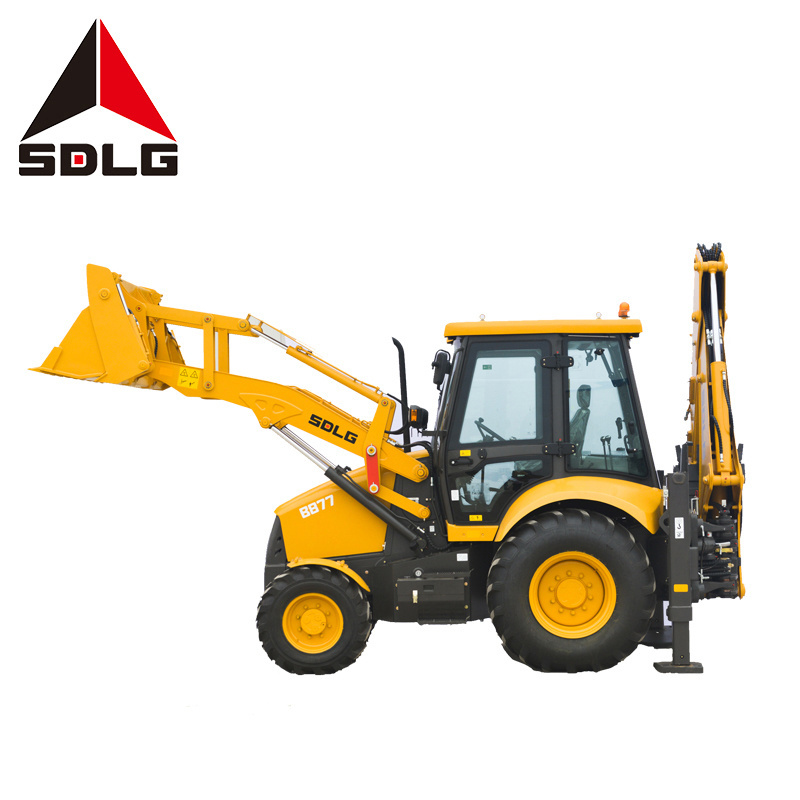

SDLG B877F small mini backhoe loader 4x4 compact tractor with front end loader and backhoe for sale
Product Paramenters
|
|
|
|
|
|
||
|
L*W*H
|
5917*2350*3608mm
|
|
|
|
|
|
|
Max. dumping height
|
2693mm
|
|
|
|
|
|
|
Dumping distance
|
830mm
|
|
|
|
|
|
|
Min. ground clearance
|
346mm
|
|
|
|
|
|
|
Max. digging depth
|
4303mm
|
|
|
|
|
|
|
Max. digging radius
|
5393mm
|
|
|
|
|
|
|
wheel tread(front/rear)
|
1928/1790mm
|
|
|
|
|
|
|
Wheel base
|
2170mm
|
|
|
|
|
|
|
Min. turning radius
|
4118mm
|
|
|
|
|
|
|
horizontal crossing radius
|
5350mm
|
|
|
|
|
|
|
Overall parameters
|
|
|
|
|
|
|
|
Operating weight
|
8000kg
|
|
|
|
|
|
|
Loading bucket capacity
|
1m3
|
|
|
|
|
|
|
Rated load
|
1800kg
|
|
|
|
|
|
|
Max. tractive force
|
86kN
|
|
|
|
|
|
|
Digging bucket capacity
|
0.18m3
|
|
|
|
|
|
|
Max. digging force
|
55kN
|
|
|
|
|
|
|
Max. breakout force
|
55kN
|
|
|
|
|
|
|
Engine
|
|
|
|
|
|
|
|
Model
|
YC4A105Z-T20
|
|
|
|
|
|
|
Type
|
Inline, watercooled,four-stroke,supercharged,direct injection combustion chamber
|
|
|
|
|
|
|
Rated power
|
70kW
|
|
|
|
|
|
|
Rated speed
|
2200r/min
|
|
|
|
|
|
|
Engine displacement
|
4837ml
|
|
|
|
|
|
|
Max. torque
|
420N.m
|
|
|
|
|
|
|
Emission standard
|
GB 20891-2007(China Phase II)
|
|
|
|
|
|
|
Min. fuel-consume ratio
|
230g/kw.h
|
|
|
|
|
|
|
Transmission system
|
|
|
|
|
|
|
|
Torgue converter
|
single-stage single-phase radial-inward flow turbine type
|
|
|
|
|
|
|
Transmission type
|
Power shifting
|
|
|
|
|
|
|
Gears
|
Forward 4 reverse 3
|
|
|
|
|
|
|
Brake system
|
|
|
|
|
|
|
|
Service brake type
|
Vacuum booster type
|
|
|
|
|
|
|
Parking brake type
|
Caliper disc type
|
|
|
|
|
|
|
Steering system
|
|
|
|
|
|
|
|
Type
|
Load sensing full hydraulic steering
|
|
|
|
|
|
|
System pressure
|
15 Mpa
|
|
|
|
|
|
|
Fill capacity
|
|
|
|
|
|
|
|
Fuel
|
135L
|
|
|
|
|
|
|
Hydraulic oil
|
155L
|
|
|
|
|
|
|
Engine
|
10L
|
|
|
|
|
|
|
Transmission
|
20L
|
|
|
|
|
|
