- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Excalibur
-
Dimension(L*W*H):
-
510*500*590mm
-
Weight:
-
56
-
Rated power/speed:
-
3600RPM
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Diesel engine
-
Engine Model:
-
S198F(E)
-
Color:
-
Customer Required
-
Quality:
-
CE
-
Warrenty:
-
One Year
-
Lubricating oil capacity:
-
1.65L
-
Fuel tank capacity:
-
5.5L
-
Packing:
-
Carton
-
MOQ:
-
1set
Quick Details
-
Displacement:
-
633CC
-
Emission Standard:
-
EURO 5
-
Power:
-
8HP, 6HP, 9HP, 7HP, 10HP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Excalibur
-
Dimension(L*W*H):
-
510*500*590mm
-
Weight:
-
56
-
Rated power/speed:
-
3600RPM
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Diesel engine
-
Engine Model:
-
S198F(E)
-
Color:
-
Customer Required
-
Quality:
-
CE
-
Warrenty:
-
One Year
-
Lubricating oil capacity:
-
1.65L
-
Fuel tank capacity:
-
5.5L
-
Packing:
-
Carton
-
MOQ:
-
1set
Product Overview

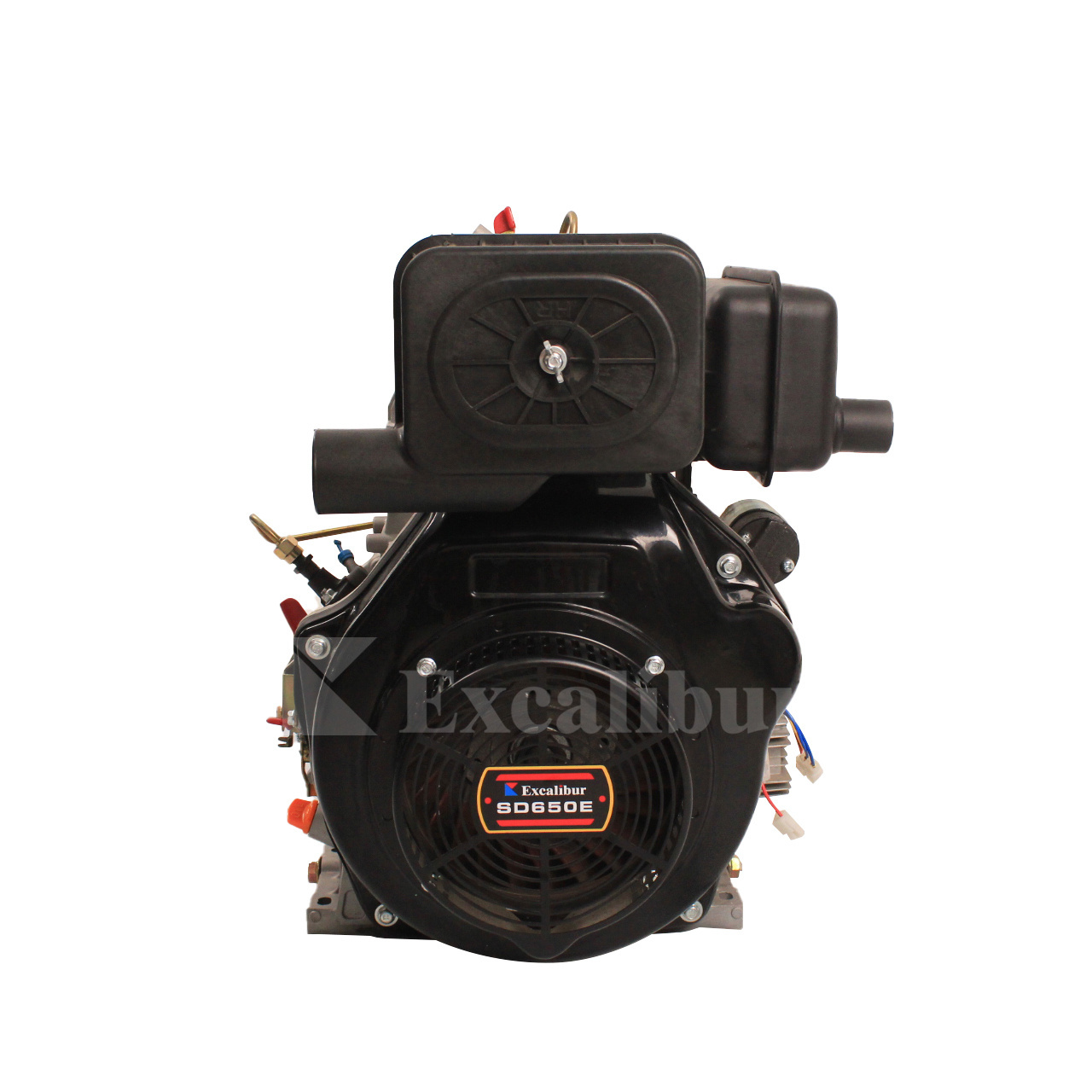

Excalibur S198FA(E) 16HP Diesel Engine
The 4-stroke, air cooled, Diesel Engine 198FAE can be widely used in many application such as the construction site by powering the Road Roller, Tamping Rammer, Scarifying Machine, Concrete Cutter, Power Trowel; And can also be used as the power in diesel weldering generator, diesel water pumps, diesel power tillers etc.
Product Specifications
|
Model
|
S173F(E)
|
S178F(E)
|
S186FA(E)
|
S188FB(E)
|
S192F(E)
|
||||
|
Type
|
Single cylinder, vertical, 4-stroke, air cooled
|
|
|
|
|
||||
|
Bore*stroke (mm)
|
73*58
|
78*62
|
86*72
|
88*75
|
92*75
|
||||
|
Displacement (L)
|
0.243
|
0.296
|
0.418
|
0.456
|
0.498
|
||||
|
Combustion system
|
Direct injection
|
|
|
|
|
||||
|
Rated output KW (HP) /rpm
|
3.5(4.8)/3000
3.8(5.2)/3600
|
3.8(5.1)/3000
4.4(5.9)/3600
|
5.7(7.8)/3000
6.6(8.9)/3600
|
6.1(8.2)/3000
7.3(9.8)/3600
|
7.5(10.2)/3000 8.5(11.5)/3600
|
||||
|
Max output KW (HP) /rpm
|
3.8(5.2)/3000
4.05(5.5)/3600
|
4.0(5.36)/3000 4.9(6.6)/3600
|
4.0(5.36)/3000 4.9(6.6)/3600
|
6.83(9.2)/30008.2(11.0)/3600
|
8.0(10.9)/3000
9.0(12.2)/3600
|
||||
|
Direction of rotation
|
Counterclockwise, facing PTOshaft
|
|
|
|
|
||||
|
Fuel
|
0# (summer) /-10# (winter)
|
|
|
|
|
||||
|
Fuel tank capacity (L)
|
2.5
|
3.5
|
5.5
|
5.5
|
5.5
|
||||
|
Lubricating oil capacity (L)
|
0.75
|
1.1
|
1.65
|
1.65
|
1.8
|
||||
|
Lubricating system
|
Pressure splashed
|
|
|
|
|
||||
|
Starting system
|
Manual/Electric start
|
|
|
|
|
||||
|
Packing size (L*W*H) mm
|
420*380*460
|
480*460*510
|
520*455*550
|
|
|
||||
|
Net weight (KG)
|
27
|
35
|
48
|
49
|
50
|
||||
Application
