Quick Details
-
Model Number:
-
XYK-117
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
700PSI
-
Set Point:
-
5-650psi(Factory Calibrated)
-
Proof Pressure:
-
700PSI
-
Temperature:
-
-20℃-90℃
-
Contact Material:
-
Ag alloy
-
Contact Type:
-
SPST NO or NC
-
Terminal:
-
6.3 mm Blade
Quick Details
-
Max. Voltage:
-
375V
-
Place of Origin:
-
China
-
Brand Name:
-
YUMO
-
Model Number:
-
XYK-117
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
700PSI
-
Set Point:
-
5-650psi(Factory Calibrated)
-
Proof Pressure:
-
700PSI
-
Temperature:
-
-20℃-90℃
-
Contact Material:
-
Ag alloy
-
Contact Type:
-
SPST NO or NC
-
Terminal:
-
6.3 mm Blade

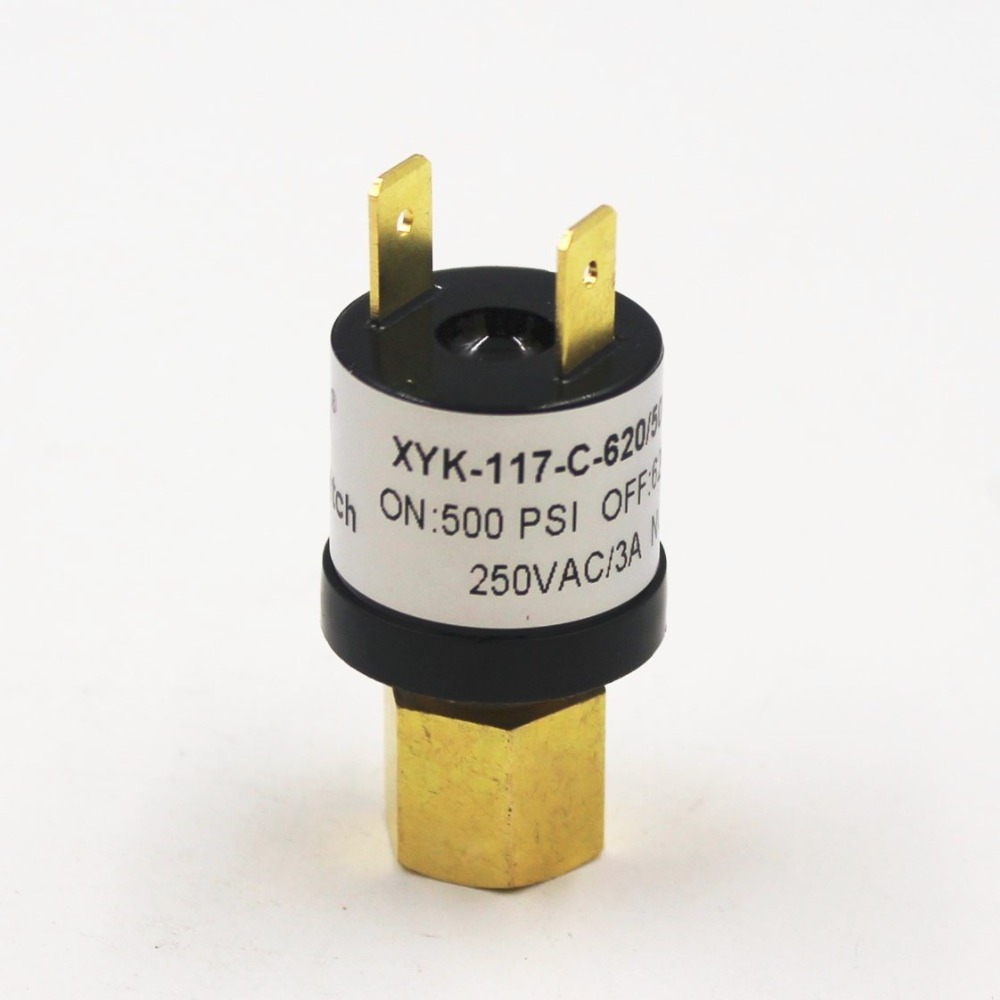

XYK-117 series 5-650 psi female pressure switch
pressure switch,air pressure switch,air compressor pressure switch,pump pressure switch,water pressure switch,low pressure switch,oil pressure switch,a/c pressure switch,differential pressure switch,water pump pressure switch
XYK-117 pressure switch
| Model | XYK-117 |
| Media | Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid |
| Pressure Set Point | actuation from 0.2 to 20 Bar |
| Max Operating Pressure |
25 Bar for actuation up to 10 Bar
35 Bar for actuation from 10-20 Bar
|
| Proof Pressure |
35 Bar for actuation up to 10 Bar
55 Bar for actuation from 10-20 Bar
|
| Operating Temperature Range | -30 C to ~ 80 C |
| Switch Type | Direct action, blade contact, SPST NC, NO |
| Electric Rating |
120/240VAC, 375VA 24VAC/DC, 2A |
| Dielectric Strength | 750 Vrms across open contacts 1550 Vrms terminals to fitting |
| Terminals | 1/4 blade |
| Life at Related Load | 100,000 cycles |
| Connection | 1/8NPT, G1/8", 1/4NPT, G1/4" |
| Options | various connector thread sizes |
YUEQING YUMO ELECTRIC CO.,LTD
TEL:0086-577-62791815 Mobile:0086-13757779011
