Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JNTECH
-
Model Number:
-
JNP7K5H
-
Input Voltage:
-
solar:460~850Vdc AC:360-460V
-
Output Voltage:
-
380-460Vac
-
Output Current:
-
18A
-
Output Frequency:
-
0~50/60Hz
-
Size:
-
265*330*150mm
-
Certificate:
-
TUV/CE
-
Warranty:
-
2years, 2 Years
-
Weight:
-
10 KG
-
Max.Solar Input:
-
880V
-
MPPT Solar Voltage:
-
460-850V
-
AC Input:
-
360-460V 3 phase
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-25℃~+60℃
-
Display:
-
LCD
-
Max Efficiency:
-
97%
-
Communication:
-
RS485/GPRS
-
Product name:
-
Solar Pump Inverter
Quick Details
-
Output Type:
-
Triple
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JNTECH
-
Model Number:
-
JNP7K5H
-
Input Voltage:
-
solar:460~850Vdc AC:360-460V
-
Output Voltage:
-
380-460Vac
-
Output Current:
-
18A
-
Output Frequency:
-
0~50/60Hz
-
Size:
-
265*330*150mm
-
Certificate:
-
TUV/CE
-
Warranty:
-
2years, 2 Years
-
Weight:
-
10 KG
-
Max.Solar Input:
-
880V
-
MPPT Solar Voltage:
-
460-850V
-
AC Input:
-
360-460V 3 phase
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-25℃~+60℃
-
Display:
-
LCD
-
Max Efficiency:
-
97%
-
Communication:
-
RS485/GPRS
-
Product name:
-
Solar Pump Inverter
Product Description
Jntech solar pump inverter ranges from 370W to 132kw for driving any single phase , three phase submersible pump or surface pump.
All Jntech solar pump inverter adopts advanced IGBT power module design, takes advanced MPPT technology caculation, effeciency is more than 99%. Low temperature rise, low noise ,long life span, perfect system protection, high reliability, 3 years warranty and good service wins clients trust and good feedback.
All Jntech solar pump inverter adopts advanced IGBT power module design, takes advanced MPPT technology caculation, effeciency is more than 99%. Low temperature rise, low noise ,long life span, perfect system protection, high reliability, 3 years warranty and good service wins clients trust and good feedback.
Product Parameter
|
Model
|
JNP2K2H
|
JNP3KH
|
JNP4KH
|
JNP5K5H
|
JNP7K5H
|
||||
|
Max, PV Input
|
880V
|
|
|
|
|
||||
|
MPPT Voltage
|
460-850Vdc
|
|
|
|
|
||||
|
Max. MPPT Efficiency
|
99%
|
|
|
|
|
||||
|
AC Input
|
360-460Vac , 3phase , 50/60Hz
|
|
|
|
|
||||
|
Output
|
2.2kw
|
3kw
|
4kw
|
5.5kw
|
7.5KW
|
||||
|
Output Voltage
|
380-460Vac, 3 phase, 50/60Hz
|
|
|
|
|
||||
|
Output Current
|
6A
|
7A
|
9A
|
13A
|
18A
|
||||
|
Protection
|
|
IP65
|
|
|
|
||||
|
Operating Temperature
|
|
-25 ~ +60 ℃， above 60 ℃ need derate operating
|
|
|
|
||||
|
Cooling Way
|
|
Natural Cooling
|
|
|
|
||||
|
Display
|
|
LCD
|
|
|
|
||||
|
Communication
|
|
RS485/GPRS
|
|
|
|
||||
|
Size
|
|
265*330*150mm
|
|
|
|
||||
|
Weight
|
|
10kg
|
|
|
|
||||
Details of Inverter

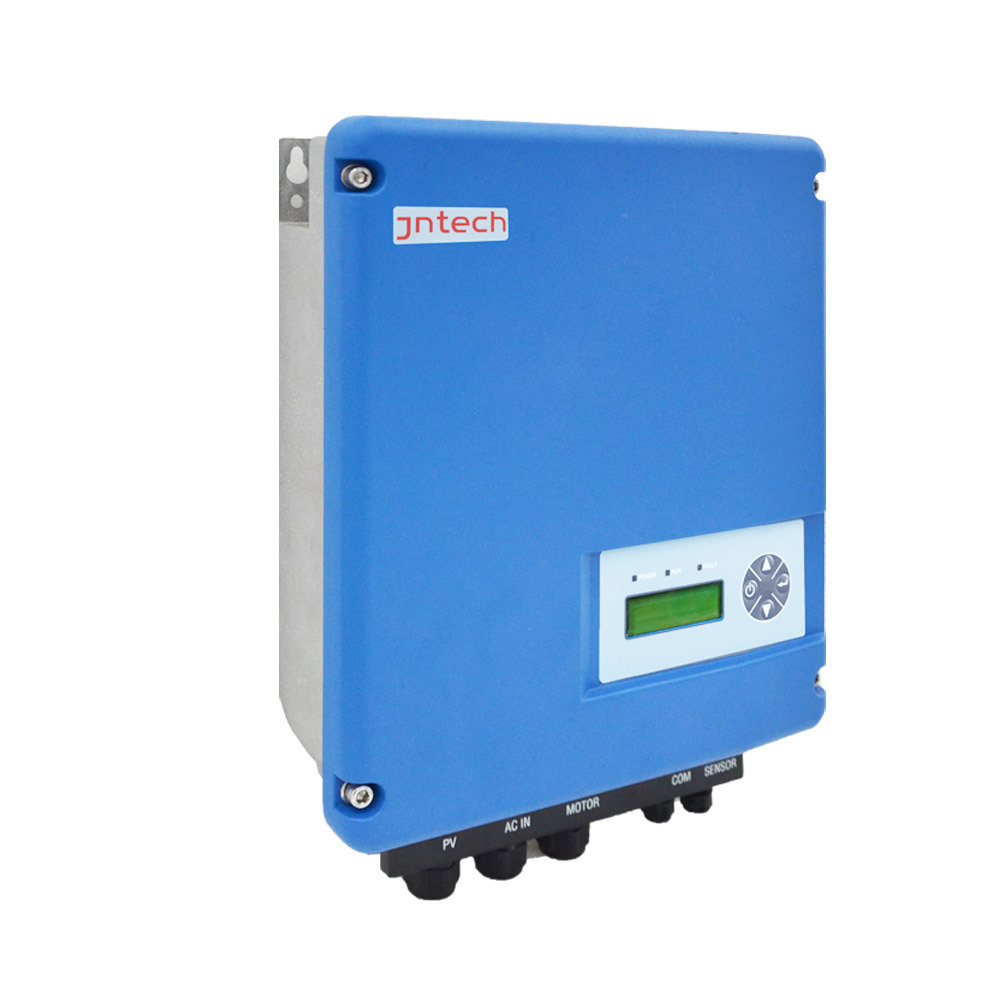

JNP7K5H solar pump inverter output is 3 phase 7.5kw 50/60Hz AC power. This inverter can drive max. 7.5kw AC pumps. It is with IP65 protection, and can be installed outdoor.
-
Hybrid AC and solar Input
Hybrid AC function is avilable. Solar input is used priority and if solar is not enough, it will take energy from AC grid utility or diesel generator to make AC pumps working full load.
Ac input required 3 phase, 360-460V, 50/60Hz. Once solar is not enough, AC input will connect in Automatically from grid utility, if solar energy is enough, it will kick out AC input.
Features of Inverter
Automatic start and shut off according to solar intensity. No need manual operation once started.
Soft start controlling in rush current, to avoid motor burning.
IP65 design for outdoor application. Against raining, dust.
No need derate the power capacity for pump matching. The matching power with pump is 1:1.
Soft start controlling in rush current, to avoid motor burning.
IP65 design for outdoor application. Against raining, dust.
No need derate the power capacity for pump matching. The matching power with pump is 1:1.
Protection:
Dry protection to protect motor overflow protection short circuit protection reverse polarity protection under-voltage, weak
sunshine, over-current, over-load, shortage-phase output Protection. Password can be set before going into parameters setting interface, in case non-professional wrong operation; Any 3phase 380V AC pump with good quality can be replaced in future maintenance.
Dry protection to protect motor overflow protection short circuit protection reverse polarity protection under-voltage, weak
sunshine, over-current, over-load, shortage-phase output Protection. Password can be set before going into parameters setting interface, in case non-professional wrong operation; Any 3phase 380V AC pump with good quality can be replaced in future maintenance.
Related Accessory
Water Level Sensor
Mechanically activated device for dry run protection. The switch can be used to detect the water level within a well. When water
level in well dropped below the level of the well probe, the inverter will stop to protect. It is also used for overflow protection, once water in tank reaches the highest level which water level sensor set, the will stop to save energy and water. Jntech solar pump inverter also have automatically dry protection without sensor, 95% projects use automatically dry protection.
level in well dropped below the level of the well probe, the inverter will stop to protect. It is also used for overflow protection, once water in tank reaches the highest level which water level sensor set, the will stop to save energy and water. Jntech solar pump inverter also have automatically dry protection without sensor, 95% projects use automatically dry protection.
GPRS Remote Monitoring and Control
Using local data card, Download APP for Android cell phone, then you can see all the working parameters in smart phone, current
power capacity, voltage, current, output frequency and so on, we also can control on and off remotely. once there is fault, it
will show the error code , it is easy for maintenance.
power capacity, voltage, current, output frequency and so on, we also can control on and off remotely. once there is fault, it
will show the error code , it is easy for maintenance.
PV Cable
Item:PV1-F 1×4mm2Nominal cross-sectional area of conductor: 4mm2
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃
Projects
Company Introduction
JNTECH set up in 2006 China, focus on manufacture of solar pump inverter, solar off-grid inverter relative solar products. All our products have passed CE and TUV certifications. Jntech solar pump system and off grid system are used in more than 60 countries in the world, especially in UNDP, UNHCR, UNICEF,OCHA, ICRC, NGO projects in Asia, Middle East, and African countires.
Jntech Service
Technical and Requirement Communication Before Sales
Engineers Training in Customer's Office or Jntech Factory
Chinese Engineer or Local Agent Engineer Technical Support At Site
JNTECH Certifications
ISO9001, IS014001, OHSAS18001,TUV,CE,AAA credit management system,Third level qualification of power project construction, National high-tech enterprises
JNTECH in the world
Jntech has left footprints in more than 60 countries in the world .Jntech make the world greener, we focus on supply green energy and clean water to all of the world.
