- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zhengshun
-
Model Number:
-
GHS5R
-
Product name:
-
5 wall X Structure polycarbonate sheet
-
Material:
-
Polycarbonate
-
Thickness:
-
16mm/20mm/25mm/28mm
-
Max Width:
-
2100mm
-
Length:
-
no limit
-
Certification:
-
CE,ROHS
-
MOQ:
-
50pieces
-
UV coating:
-
50um
-
Sample:
-
Free
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zhengshun
-
Model Number:
-
GHS5R
-
Product name:
-

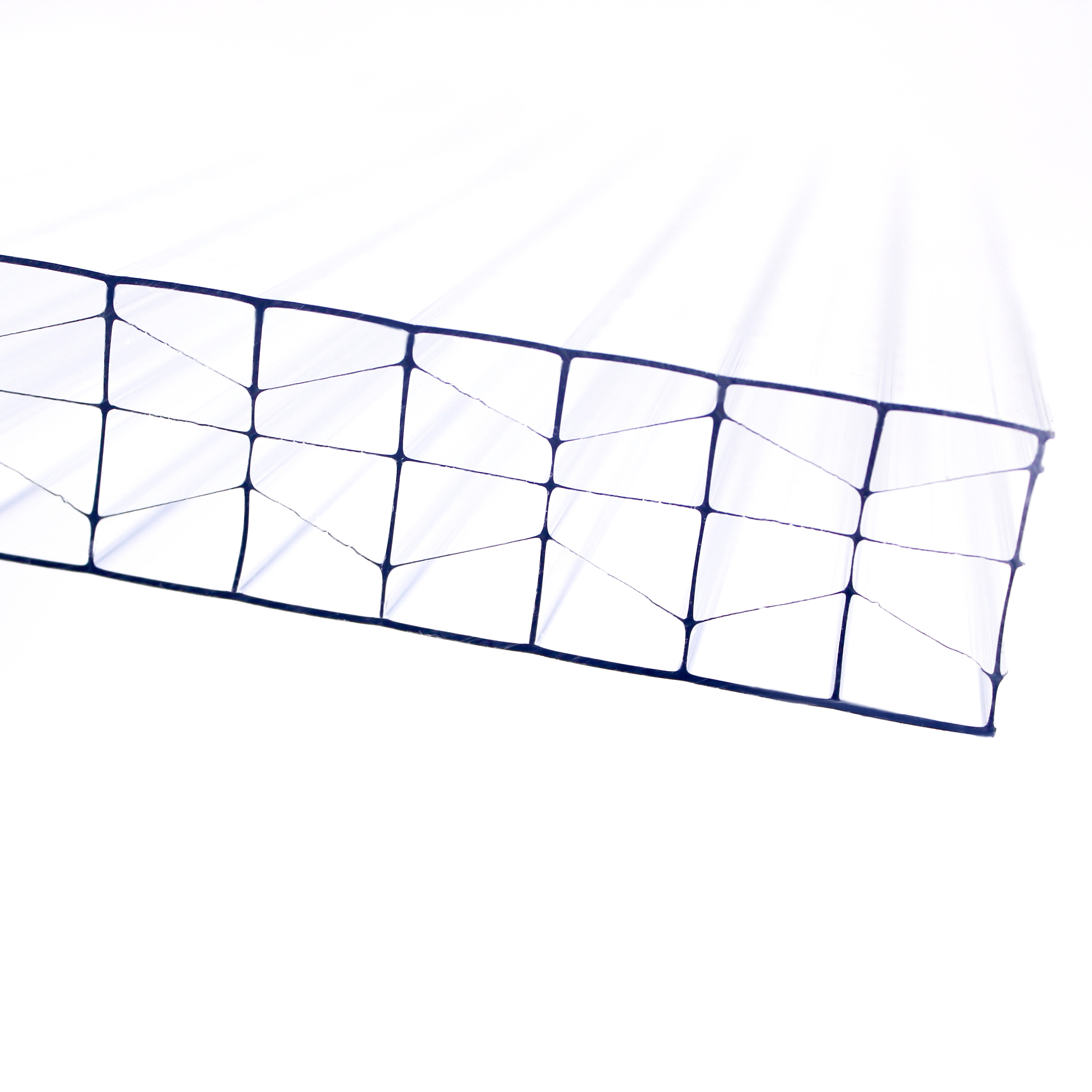

5 wall X Structure polycarbonate sheet
-
Material:
-
Polycarbonate
-
Thickness:
-
16mm/20mm/25mm/28mm
-
Max Width:
-
2100mm
-
Length:
-
no limit
-
Certification:
-
CE,ROHS
-
MOQ:
-
50pieces
-
UV coating:
-
50um
-
Sample:
-
Free
Product Description
Multiwall polycarbonate sheet price
ZHENGSHUN polycarbonate sheet has a cellular polycarbonate structure that yields a lightweight sheet with high impact strength and superior thermal insulation. High light transmission makes ZHENGSHUN polycarbonate sheet ideal for varied roofing, wall cladding, and glazing applications. The ZHENGSHUN product range includes heat-blocking sheets that reduce heat buildup and condensation control treatment for greenhouses and garden centers.
Triple wall
Four wall
Honeycomb
X Wall
X 5 wall
Physical data sheet
|
Structure
|
Triple-wall PC Hollow Sheet
|
Four-wall PC Hollow Sheet
|
Honeycomb PC Hollow Sheet
|
Four-wall X Profile PC Hollow Sheet
|
Five-wall X Profile PC Hollow Sheet
|
|||||
|
Type
|
GHS3R
|
GHS4R
|
GHS4H
|
GHS4X
|
GHS5X
|
|||||
|
Thickness
(mm)
|
10
|
6
|
6
|
6
|
16
|
|||||
|
|
12
|
8
|
8
|
8
|
18
|
|||||
|
|
14
|
10
|
10
|
10
|
20
|
|||||
|
|
16
|
|
12
|
12
|
25
|
|||||
|
|
18
|
|
|
|
30
|
|||||
|
Weight
（kg/㎡)
|
1.9
|
1.5
|
1.5
|
1.5
|
2 .6
|
|||||
|
|
2 .1
|
1.7
|
1.7
|
1.7
|
2 .8
|
|||||
|
|
2 .3
|
1.9
|
1.9
|
1.9
|
3 .0
|
|||||
|
|
2 .5
|
|
2 .1
|
2 .1
|
3 .5
|
|||||
|
|
2 .7
|
|
|
|
4 .0
|
|||||
|
Color
|
Clear, Opal, Brown, Green, Blue, Gray, Orange, Pink, Red, etc
|
|
|
|
|
|||||
|
Max width
(mm)
|
2100
|
|
|
|
|
|||||
|
Max of light transmission
(%)
|
73
|
72
|
59
|
71
|
67
|
|||||
|
|
72
|
71
|
58
|
70
|
66
|
|||||
|
|
72
|
70
|
57
|
69
|
65
|
|||||
|
|
72
|
|
56
|
69
|
61
|
|||||
|
|
70
|
|
|
|
60
|
|||||
|
Min Bend Radius
(mm)
|
1750
|
1320
|
1500
|
1380
|
Do Not Suggest Curving
|
|||||
|
|
2160
|
1760
|
2000
|
1840
|
|
|||||
|
|
2450
|
2200
|
2500
|
2300
|
|
|||||
|
|
3000
|
|
3000
|
2760
|
|
|||||
|
|
3960
|
|
|
|
|
|||||
|
K value
（W/㎡℃）
|
2.68
|
2.73
|
2.23
|
2.21
|
2.10
|
|||||
|
|
2.56
|
2.56
|
2.42
|
2.40
|
1.89
|
|||||
|
|
2.42
|
2.39
|
2.16
|
2.15
|
1.69
|
|||||
|
|
2.27
|
|
1.98
|
1.97
|
1.51
|
|||||
|
|
2.11
|
|
|
|
1.32
|
|||||
|
Polycarbonate sheet
|
|
|
|
|
|
|||||
Main Benefits
1)High thermal insulation
2)Extremely Lightweight yet impact resistant
3)High light transmission
4)Excellent structural durability
5)Weather and UV resistant
6)Blocks virtually all UV radiation
7)Easy to handle and install
8)High fire ratings
Typical Application
1)Architectural roofing and glazing
2)skylights and sidelights
3)Conservatory roofing
4)Covered walkways
5)Illuminated signage and displays
6)Decorative partitions
7)Greenhouse and garden center roofing
Application
Installation:
Production line
Our advantage
Certification
Testing equipment
Anti UV coating testing
drop-impact test equipment
yellowness and color difference inspection
weather proof test
Packing and loading
FAQ
1.How long do the polycarbonate sheets last?
Polycarbonate hollow sheets warranties against most types of failures. The life expectancey can be as much as 10 years,depending on professional installation practice and enviromental factors like air pollution,winds,and erosion by sand particles.
2.How do i cut these sheets?
Polycarbonate hollow sheets may be cut with eigher a circular sa better to cut a few sheets at time to reduce vibration
Also,if using toothed circular saw blade,better results may be seen running the blade backwards.Sheets may also be cut by hand by carefully using tin snips or a utility knife.For further information please refer to our pdocuts manuals.
3.What should I sue to clean my panels.
Warm water with a mild household detergent should be sufficient to clean polycarbonate hollow sheets.Wipe off any remained dirt with a soft cloth and wash again.Never use a solvent based cleaner(ammonia,etc).AVOID using sponges or brushes that can scratch the sheets surface.
4.My building inspector says i need to know your flame spread rating
Can you prvodie this information?
Yes,we can provdie test reports and other such documents.
5.Does polycarbonate hollow sheets really have anti UV coating?
Yes, our panles with has UV coating 80 μm. It maks the polycarbonate sheets a perfect barrier against the harmful radiation.
