Quick Details
-
Screw Speed (rpm):
-
32 rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SWAN INT'L
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
18000*1500*2000mm
-
Power (kW):
-
500
-
Weight:
-
2 KG
-
After-sales Service Provided:
-
No overseas service provided
-
Design:
-
SJSZ51/105 double-screw
-
Power(W):
-
34kw
-
Automatic Grade:
-
FULL-AUTO
-
Product name:
-
Profile Making Machine
-
Marketing Type:
-
New Product 2020
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
51/105
-
Screw diameter (mm):
-
51 mm
-
Screw Speed (rpm):
-
32 rpm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SWAN INT'L
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
18000*1500*2000mm
-
Power (kW):
-
500
-
Weight:
-
2 KG
-
After-sales Service Provided:
-
No overseas service provided
-
Design:
-
SJSZ51/105 double-screw
-
Power(W):
-
34kw
-
Automatic Grade:
-
FULL-AUTO
-
Product name:
-
Profile Making Machine
-
Marketing Type:
-
New Product 2020
Product Description

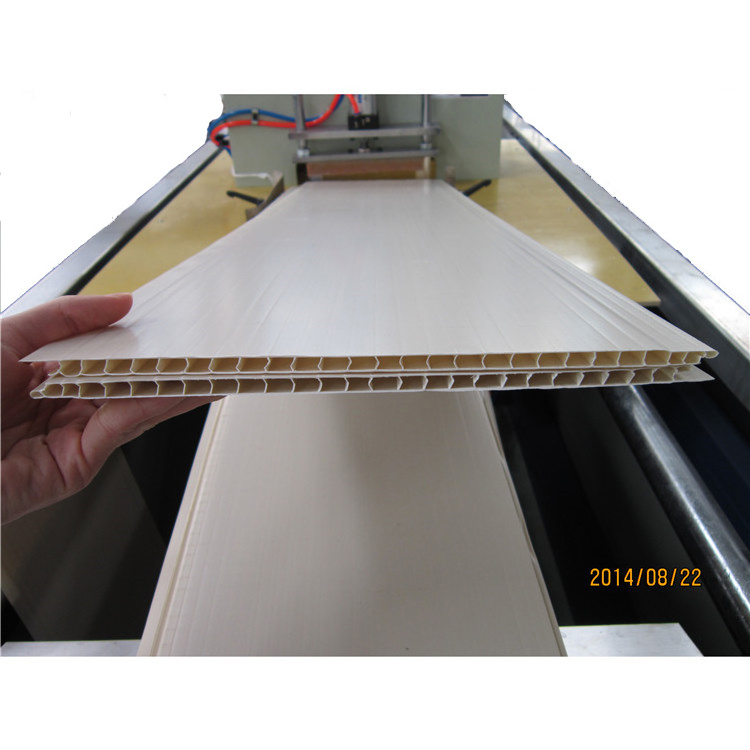

Shanghai SWAN PVC Ceiling Panel Extrusion Line Production pattern ceilings
|
Screw diameter
|
51/105 mm
|
80/156mm
|
|
Rotated speed of barrel
|
2-32 r/min
|
1-37r/min
|
|
Effective length of barrel
|
1070 mm
|
1800mm
|
|
Main motor power
|
18.5 kw
|
75kw
|
|
Heating power of barrel
|
12 kw
|
36kw
|
|
Extrusion capacity
|
50-100 kg/h
|
300-400 kg/h
|
|
Center height
|
1000 mm
|
1000mm
|
|
Weight
|
2300 kg
|
|
|
Dimension
|
3500 x 1400 x 1600 mm
|
|
|
Extruder speed adjusting method
|
Frequency conversion
|
|
|
Feeding motor speed adjusting method
|
Frequency conversion
|
|
|
Barrel temperature adjusting
|
Heating: Cast aluminum heater
Cooling: 3 sections by air |
|
|
Material of screw and barrel
|
38CrMoAlA Azotizing on surface 0.4~0.7mm Rigidity: above 700HV
|
|
|
Screw core temperature control
thermoregulation system |
Oil heating
|
|
