Quick Details
-
Width:
-
Standard 360mm, 400mm, Max 1 meter
-
Length:
-
Max 20 meter
-
Thickness:
-
3-10mm
-
Flame rating:
-
UL94 V0
-
Specific gravity:
-
0.55±0.05g/cm³
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOMEEN
-
Color:
-
gray/red or according to customer requirements
-
Width:
-
Standard 360mm, 400mm, Max 1 meter
-
Length:
-
Max 20 meter
-
Thickness:
-
3-10mm
-
Flame rating:
-
UL94 V0
-
Specific gravity:
-
0.55±0.05g/cm³

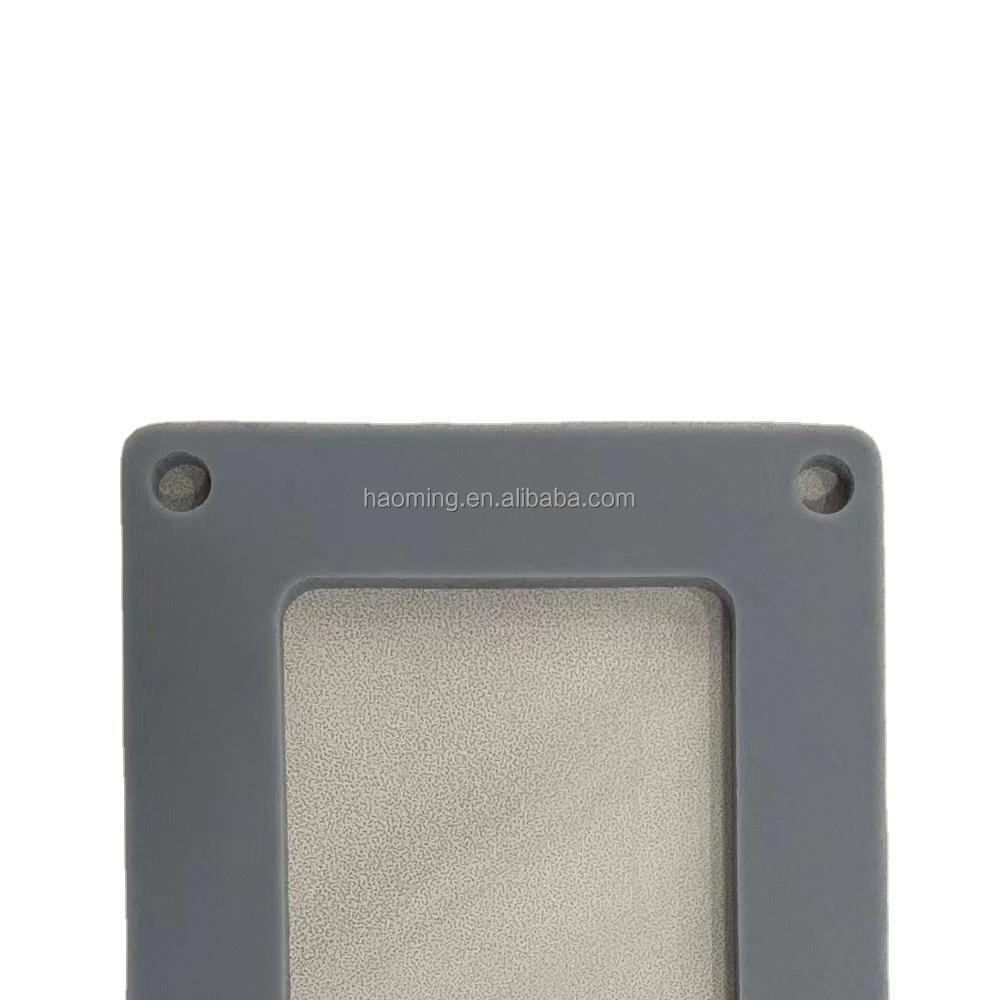

High temperature resistant EV battery silicone foam gasket
D escription
HM-S58 is medium hardness silicone foam which has a wide variety of USES . It not only has the characteristics of low specific gravity and light weight of foam, but also has the tightness of traditional rubber sponge . This product is especially suitable as foam sealing material for automobile and industrial assembly maintenance industry. It plays the role of seal, insulation, flame retardant, waterproof and buffer, e tc.
Product characteristics
1. Excellent weatherability with silicone rubber.
2 . Excellent elasticity, low compression set.
3 . Low specific gravity, ideal foam structure.
4. Good insulation and flame retardant.
M ain applications
1. Sealing for Automobile, Electronic, and Battery Pack
2. Sealing for LED Lights.
3. Sealing for heating and ventilating equipment.
4. Sealing for electrical control cabinet.
5. Vibration isolation, cushion and washer of Vehicle interiors.
6. Dustproof, waterproof and airtight for other outdoor equipment.
Typical properties
The technology indicators of each performance in the following table are determined based on measured values and with sufficient allowance.
|
Properties |
HM-S58
|
|
Color |
Red |
|
Thickness(mm) |
3-10 |
|
standard width(mm) |
360, 400 |
|
Specific gravity(g/cm³) |
0.55±0.05 |
|
Compression set (70℃72h,%) |
<1 |
|
tensile strength(kPa) |
>600 |
|
Hardness(shore C) |
32±5 |
|
Elongation (%) |
>60 |
|
Water Absorption (1m deepwater,96h, %) |
<1 |
|
Waterproof grade |
IPX7 |
|
Flame Classification(UL94) |
V0 |
A pplication methods and precaution
1. Use clean rag to clean the dust and oil on the surface of the base material.
2 . Single or double-sided pressure-sensitive adhesive sheet is available for easy pasting on different surfaces.
3. Design and splice the sealing ring according to the size of the customer's drawing, including the bonding of the position limitation hole steel ring.
4. Try to avoid reposition during use, so as not to reduce the viscosity of pressure sensitive adhesive and foam sealing ring damage.
Storage
Please store in a cool and dry place with temperature below 25℃. .
Recommendations and statements
It is recommended that users do an applicability test before using this product formally. The company will not be responsible for all the consequences caused by blindly using the product in unsuitable situations.
