Quick Details
-
Brand Name:
-
CWX
-
Color:
-
Blue
-
Product name:
-
wireless water shut off valve
-
Materia:
-
brass
-
Certificate:
-
CE,ISO,RoHS,IEC,NSF
-
Output torque:
-
6Nm
-
Protect rank:
-
IP65
-
Pressure::
-
Medium Pressure
-
Running time:
-
8 Sec
-
Voltage:
-
220VAC,24V, 12V,5V
-
Wiring:
-
CR04,CR03,CR02,CR01
Quick Details
-
Port Size:
-
DN15 DN20 DN25 DN32
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
CWX-60P
-
Brand Name:
-
CWX
-
Color:
-
Blue
-
Product name:
-
wireless water shut off valve
-
Materia:
-
brass
-
Certificate:
-
CE,ISO,RoHS,IEC,NSF
-
Output torque:
-
6Nm
-
Protect rank:
-
IP65
-
Pressure::
-
Medium Pressure
-
Running time:
-
8 Sec
-
Voltage:
-
220VAC,24V, 12V,5V
-
Wiring:
-
CR04,CR03,CR02,CR01

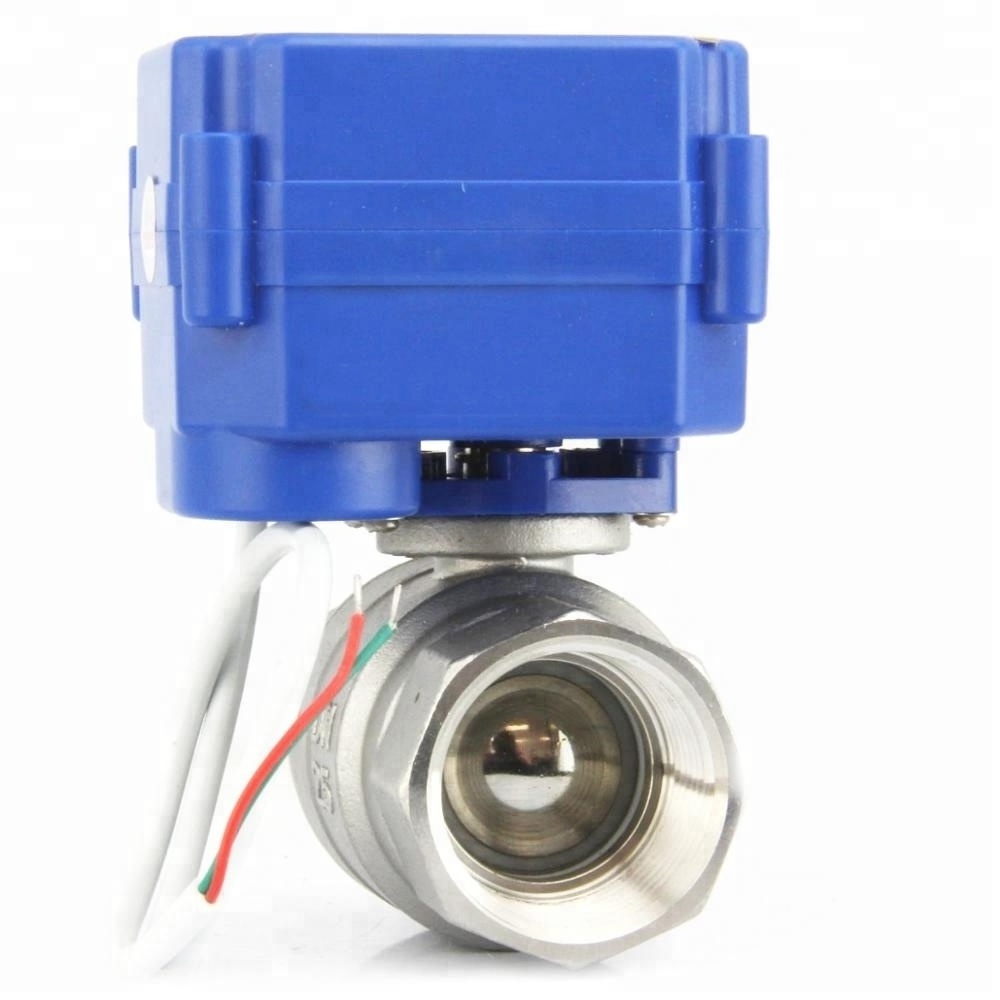

all metal gear motorized ball wall/motorized ball valve electric ball valve automatic control valve DN15 DN20 DN25 DN32 wireless remote control motorized valve wireless water shut off valve
1,Metal gearbox and metal gear design, low noise, perform reliably
2,Long service life: more than 100000 circles
3,Electric limit and machinery limit design, located accurately, avoid gear run
continuously.
4,Multi-angle assembling, easy to install
5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
This product is a compact wireless remote control valve, which can be used in factories, hospitals, schools or homes. It is easy to operate. It only needs an external power cord , No need to connect a complicated controller, you can operate the valve switch directly with the remote control. It can be used for water pipes, heating pipes, central air conditioning pipes, and agricultural and forestry irrigation.
1. IC card smart water meter, heat meter
2. HVAC and fan coil, fire sprinkler, etc.
3. Universities water, automatic control systems, industrial automation and other small devices
4. Environmental protection, water supply and drainage, water treatment
5. Replace the solenoid valve where can not working
6. The water-saving appliances, equipment and other drinking water
|
Working voltage |
DC5V/DC12V/DC24V/AC220V |
|
Control mode |
The remote controller and the valve are controlled one-to-one. If one-to-many control is required, it needs to be customized separately. |
|
Working current |
<100mA |
|
Stand-by current |
<20mA |
|
Wireless frequency |
433MHz |
|
Remote control distance |
Open space 50 meters, can wear one wall |
|
Medium temperature |
<95℃ |
|
Medium pressure |
1MPa |
|
Valve body diameter |
DN8-DN32 |
