Quick Details
-
Model Number:
-
CHINABEIHAI
-
Weight:
-
100-900g/m2
-
Width:
-
920mm
-
Standing Temperature:
-
1000℃
-
Product name:
-

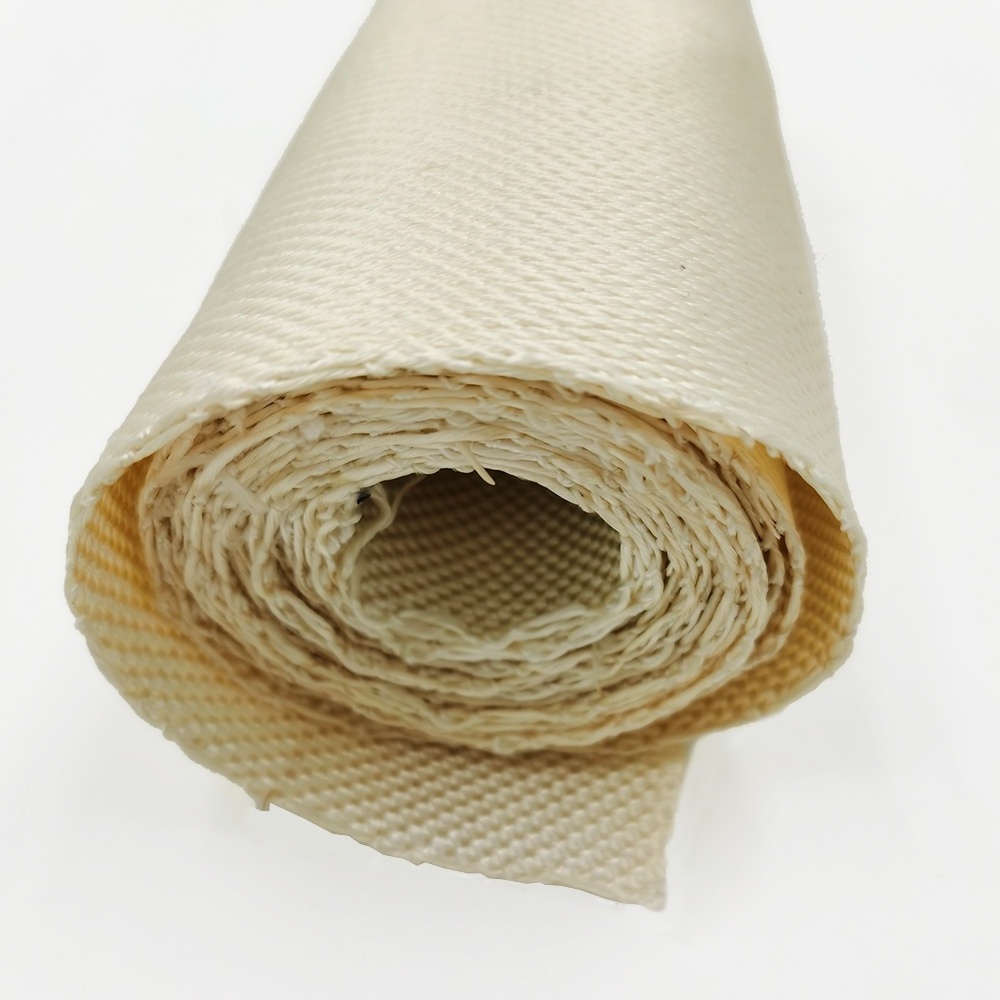

Fibreglass Cloth
-
Material:
-
Fiberglass Yarn
-
Color:
-
White
-
Feature:
-
High temperature resistance, Ablative resistance
-
Roll Length:
-
50m-500m
-
MOQ:
-
100 M2
-
Temperature resistance:
-
800C-1100C
-
Usage:
-
Building Application
-
Good Features:
-
High Temperature Reistance
Quick Details
-
Application:
-
Fiberglass Mesh Cloth
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
China Beihai
-
Model Number:
-
CHINABEIHAI
-
Weight:
-
100-900g/m2
-
Width:
-
920mm
-
Standing Temperature:
-
1000℃
-
Product name:
-
Fibreglass Cloth
-
Material:
-
Fiberglass Yarn
-
Color:
-
White
-
Feature:
-
High temperature resistance, Ablative resistance
-
Roll Length:
-
50m-500m
-
MOQ:
-
100 M2
-
Temperature resistance:
-
800C-1100C
-
Usage:
-
Building Application
-
Good Features:
-
High Temperature Reistance
Products Description
High silica fiberglass cloth is commonly used in high temperature ablative materials, high temperature soft connect, fireproof materials (fireproof cloth, fire curtains, fire blankets), metal solution filtration evolution, automobile, motorbike muffling, heat insulation, waste filtration and other fields.
High silica fiberglass tape is commonly used in motor, transformer, communication cable thermal protection,electric line insulation, high temperature insulation, sealing and other fields.
High silica fiberglass needle mat is Commonly used in high-temperature insulation, automotive three-way catalytic converter insulation, post-treatment insulation and other fields
Thickness range 3~25mm,width range 500~2000mm,bulk density arrange 80~150kg/m3.
Product List
China Beihai Fiberglass Co., Ltd. has 3 factories with 2100 workers specialize in producing Fiberglass products in China.We produce the E-Glass and S-Glass fiberglass roving,chopped strands,continuous mat,stitched combo mat,multiaxial fabric,powder and emulsion chopped strand mat,woven roving,tissue mat and FRP(fiberglass reinforced plastic) products such as FRP door,FRP flower pot,FRP sculpture and etc.
Product Parameters
|
Item No.
|
Thickness (mm)
|
Mesh size(mm)
|
Breaking strength
(N/25mm)
|
|
Areal Weight
(g/m2)
|
Weave
|
Heat vector (%)
|
Temperature resistance (℃)
|
|
|
|
|
|
Warp
|
Weft
|
|
|
|
|
|
|
BNT1.5X1.5L
|
/
|
1.5X1.5
|
≥100
|
≥90
|
150
|
Leno
|
≤5
|
1000
|
|
|
BNT2X2 L
|
/
|
2X2
|
≥90
|
≥80
|
135
|
Leno
|
≤5
|
1000
|
|
|
BNT2.5X2.5L
|
/
|
2.5X2.5
|
≥80
|
≥70
|
110
|
Leno
|
≤5
|
1000
|
|
|
BNT1.5X1.5M
|
/
|
1.5X1.5
|
≥300
|
≥250
|
380
|
Mesh
|
≤5
|
1000
|
|
|
BNT2X2M
|
/
|
2X2
|
≥250
|
≥200
|
350
|
Mesh
|
≤5
|
1000
|
|
|
BNT2.5X2.5M
|
/
|
2.5X2.5
|
≥200
|
≥160
|
310
|
Mesh
|
≤5
|
1000
|
|
|
BWT100
|
0.12
|
/
|
≥410
|
≥410
|
114
|
Plain
|
/
|
1000
|
|
|
BWT260
|
0.26
|
/
|
≥290
|
≥190
|
240
|
Plain
|
≤3
|
1000
|
|
|
BWT400
|
0.4
|
/
|
≥440
|
≥290
|
400
|
Plain
|
≤3
|
1000
|
|
|
BWS850
|
0.85
|
/
|
≥700
|
≥400
|
650
|
Plain
|
≤8
|
1000
|
|
|
BWS1400
|
1.40
|
/
|
≥900
|
≥600
|
1200
|
Satin
|
≤8
|
1000
|
|
|
EWS3784
|
0.80
|
/
|
≥900
|
≥500
|
730
|
Satin
|
≤8
|
800
|
|
|
EWS3788
|
1.60
|
/
|
≥1200
|
≥800
|
1400
|
Satin
|
≤8
|
800
|
|
|
Item No.
|
Areal weight(g/m2)
|
Thickenss(mm)
|
|
BMN300
|
300
|
3
|
|
BMN500
|
500
|
5
|
