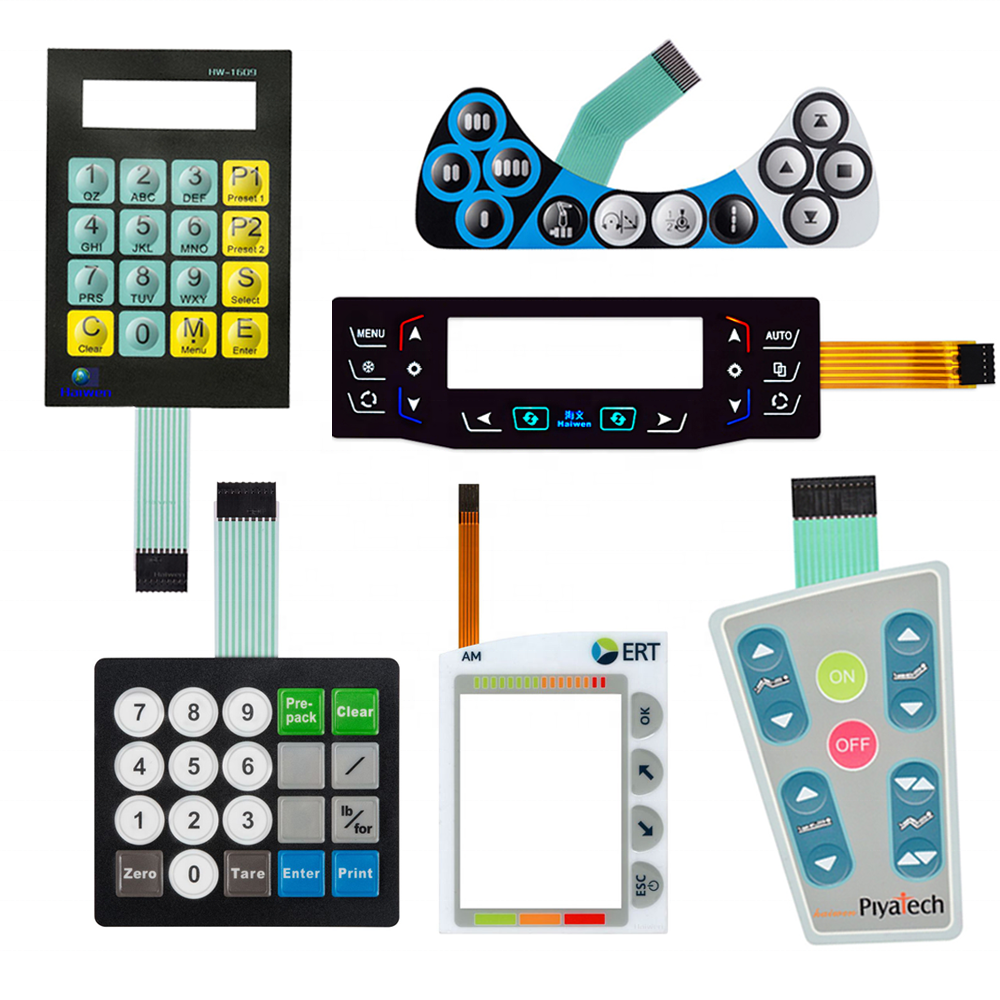

Custom Key Pad Graphic Overlay Button Panel Membrane Keypad Keyboard Membrane Switch

Custom Key Pad Graphic Overlay Button Panel Membrane Keypad Keyboard Membrane Switch

FOB Reference Price: Get Latest Price

≥10 Pieces

US $0.9

≥100 Pieces

US $0.8

≥1000 Pieces

US $0.6

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Keypad Button Material:: Metal dome

Cross Reference:: PET/PC/EBG180/Glass/Aryclic

Certification:: ISO9001,CE, ROHS

Waterproof grade:: IP65-IP67

service life:: > 1 million times

Graphic Overlay:: PC, PET, EBG180, Glass, Acrylic

Circuit:: FFC, FPC, PCB

Button:: Tactile & Non-tactile

Color:: Pantone or RAL

Surface:: glossy or matte

Adhesive:: 3M Adhesive

Pitch:: 0.5mm, 1mm, 1.27mm, 2.54mm with female connector

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Haiwen

Model Number:: HW-5268899

Keypad Button Material:: Metal dome

Cross Reference:: PET/PC/EBG180/Glass/Aryclic

Certification:: ISO9001,CE, ROHS

Waterproof grade:: IP65-IP67

service life:: > 1 million times

Graphic Overlay:: PC, PET, EBG180, Glass, Acrylic

Circuit:: FFC, FPC, PCB

Button:: Tactile & Non-tactile

Color:: Pantone or RAL

Surface:: glossy or matte

Adhesive:: 3M Adhesive

Pitch:: 0.5mm, 1mm, 1.27mm, 2.54mm with female connector

Related Products

Product Description

Overlay Material	PET, PC, EBG180, EGA180, Glass, Acrylic
Artwork Format	CorelDraw, AI, CAD, CDR, PDF
Color	Pantone and RALcolor matching system
Button options	Tactile: metal dome, poly dome, silicone button
Button options		Non-tactile: flat button, printed silver spot on the circuit
Connector	ZIF connector: 0.5mm, 1.0mm, 1.25mm pitch
Connector		Female connector with 2.54mmpitch
Circuit option	Silver printed conductive inks, FPC, PCB
Printing	Screen printing, Semi-Auto matic printing, Automatic Printing
Window	Transparent, translucent red/black/white etc window
Surface	Glossy surface or matte surface
Rear Adhesive	3M467,3M468, 3M9448MP, 3M300LSE, 3M93420 etc.
Certificate	ISO9001、RoHS、CE、TUV

Technical Paramenters

Electrical Properties
Operating Voltage	≤ 50VDC	Substrate Voltage	2kDVC
Working Current	≤ 100mA	Spring Time	≤ 6ms
Contact Resistance	0.5 ~ 5Ω	Loop Resistance	60Ω
Insulation Resistance	≥ 100MΩ (100VDC)	Insulation Ink Voltage	100VDC
Mechanical Properties
Reliability, Service life			> 1 million times







Closed Displacement			0.1 ~ 0.4mm (no touch-type) 0.4 ~ 1.0mm (touch-type)
Health Standard For Power			280g Power
Silver Migration			In 55 ℃, humidity 90%, 56 hours later, the second-line between the 10MΩ/50VDC
Silver Online No Oxidation, No Impurities
Silver Width			≥ 0.3mm, the smallest interval of 0.3mm, line edges <1 / 3, the line gap of <1 / 4 width
Pin Spacing Standard			1.00mm
Lead Aanti-Curvature			10mm steel rod line pressure roller 80 constantly.
Environmental Performance
Operating Temperature			-40 ℃ ~ +80 ℃
Storage Temperature			-40 ℃ ~ +85 ℃ temperature of 95% ± 5%
Atmospheric Pressure			86 ~ 106KPa
Print Index
Print Size Deviation			± 0.15mm, clear code looks bad ≤ 0.1mm edges
Chromatic Deviation			± 0.11mm/100mm, insulated cover all the Silver Line Ink

Application

Electronic Communication

Electronic Measurement

Industrial Control

Medical Equipment

Automotive Industry

Household

Company Introduction

HaiWen Membrane Switch Limited.

Our company established in June 2009 and specialized in manufacturing membrane switches for years. Our mainly products are membrane switches, graphic overlay, screens, circuit assembly etc.

HaiWen people have been sticking to the philosophy of “Market Orientation, Continuous Improvement, Sincere Service, Perfection
Pursuit”. In the attitude of “Pragmatic & Honest”, we strive to do every work well and provide customer with high quality products
and perfect service.

Our company possesses advanced production equipment, skilled management personnel and well-trained workers. Every production process is in compliance with the standards of IS09001 strictly, we established a complete quality management system, to ensure strictness and close linking from raw material procurement to delivery. We introduced advanced computer testing equipment to ensure the quality of our product qualified .

Certifications

CE ROHS ISO9001 TUV

Packing&Shipping

Packaging:

First put in a polybag per 50 pcs usually, and protected by foam in export carton.

According to the clients' requirements for special orders.

Shipping:
By Air, by Sea, Express UPS、FedEx、DHL, etc.
