Quick Details
-
Product name:
-

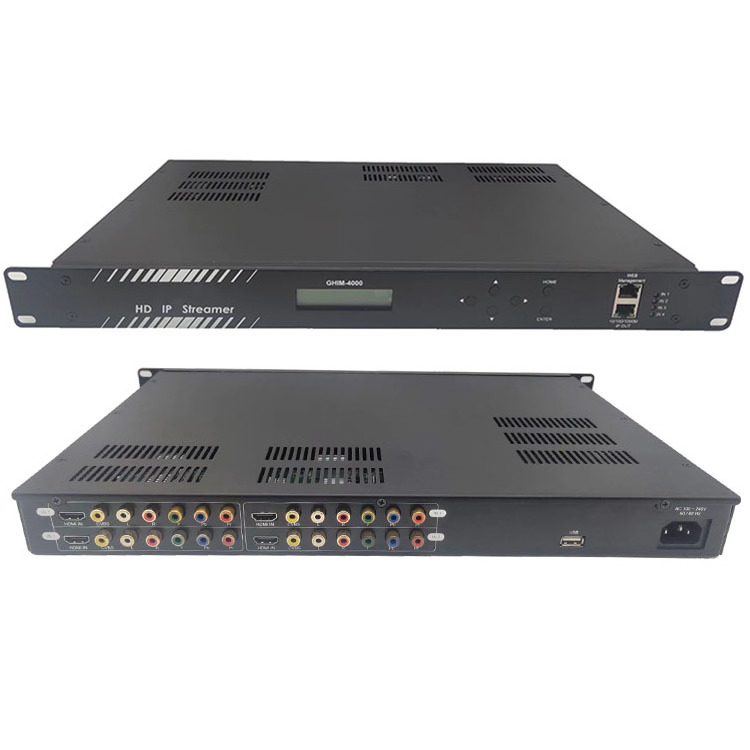

4 Channels IP Streamer Server
-
Input Interface:
-
4 x HDMI 4 x YPbPr 4 x CVBS
-
Input Resolution HD:
-
1080P25/30,1080i50/60Max:
-
Input Resolution YPbPr:
-
1080i,720P,576i/P:
-
Input Resolution CVBS:
-
NTSC,PAL
-
USB lnput:
-
USB 2.0 update firmware
-
Power Supply:
-
AC100~240V50/60Hz
-
Display:
-
LCD panel @ 2x 16 characters
-
OUTPUT Port 1:
-
Web Management
-
OUTPUT Port 2:
-
IP Out,10/100/1000M
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GME,ODM/OEM
-
Model Number:
-
GDM-028-2(GHIM-4000)
-
Product name:
-
4 Channels IP Streamer Server
-
Input Interface:
-
4 x HDMI 4 x YPbPr 4 x CVBS
-
Input Resolution HD:
-
1080P25/30,1080i50/60Max:
-
Input Resolution YPbPr:
-
1080i,720P,576i/P:
-
Input Resolution CVBS:
-
NTSC,PAL
-
USB lnput:
-
USB 2.0 update firmware
-
Power Supply:
-
AC100~240V50/60Hz
-
Display:
-
LCD panel @ 2x 16 characters
-
OUTPUT Port 1:
-
Web Management
-
OUTPUT Port 2:
-
IP Out,10/100/1000M
Product Description
Specification
|
Place of Origin:Guangdong,China
|
|
|
|
Model Number:GDM-028-2(GHIM-4000)
|
|
|
|
INERFACES
|
|
|
|
Ethernet x 2
|
1Gbps, RJ-45 (Web Management & IP Out)
|
|
|
Input Channel x 4
|
HDMI, YPbPr, CVBS
|
|
|
Audio Input
|
Analog, Coaxial
|
|
|
USB Input
|
USB 2.0 With Media player
|
|
|
ENCODING
|
|
|
|
Video Format
|
HD H.264 AVC/HP@L4.0
|
|
|
|
SD MPEG-2/MP@ML
|
|
|
Audio Format
|
MPEG2 / AAC
|
|
|
Resolution
|
HD 1080P25,1080P30 Max
|
|
|
|
SD 480i,576i
|
|
|
Video Bit Rrate
|
H.264 12 Mbps MAX
|
|
|
Audio Bit Rrate
|
MPEG-2 8 Mbps MAX
|
|
|
Audio Sample Rate
|
384Kbps 48KHz
|
|
|
INTPUT
|
|
|
|
Video Input
|
HDMI 1080P 25/30, 1080i 50/60 Max,
|
|
|
|
PYPbPr 1080i,720P, 576i/P,480i/
|
|
|
|
CVBS NTSC, PAL
|
|
|
Y Input Level
|
1V±0.2Vp-p
|
|
|
Pb/Pr Input Level
|
0.7V±0.1Vp-p
|
|
|
CVBS Input Level
|
1V±0.2Vp-p
|
|
|
Streaming Protocols
|
DLNA
|
|
|
|
UDP / RTP multicasting
|
|
|
|
UDP / RTP unicasting
|
|
|
|
HTTP Live Streaming (HLS)
|
|
|
OTHER
|
|
|
|
Power Supply
|
AC100~240V50/60Hz
|
|
|
Display
|
LCD panel @ 2x 16 characters
|
|
|
Dimension
|
485mm x 320mm x 45mm
|
|
|
Environmental for Operating
|
Temperature 5℃-40℃
|
|
|
|
Relative Humidity 80% @ 30℃
|
|
