Quick Details
-
Power:
-
1120
-
Dimension(L*W*H):
-
2300 x 650 x 1300 mm
-
Tube Material:
-
Copper / Aluminum / Bundy tube
-
Tube Diameter:
-
4-20mm
-
Cutting Length:
-
>50mm
-
Work Speed:
-
0~60m/min, adjustable by Inverter
-
Cutting Tolerance:
-
0.5mm/1m
-
Control System:
-
PLC control / HMI
-
Motor Power:
-
1.12KW
-
Electric System:
-
380V, 50Hz, 3Phae (Customized)
-
Dimension:
-
2300 x 650 x 1300 mm
-
Name:
-

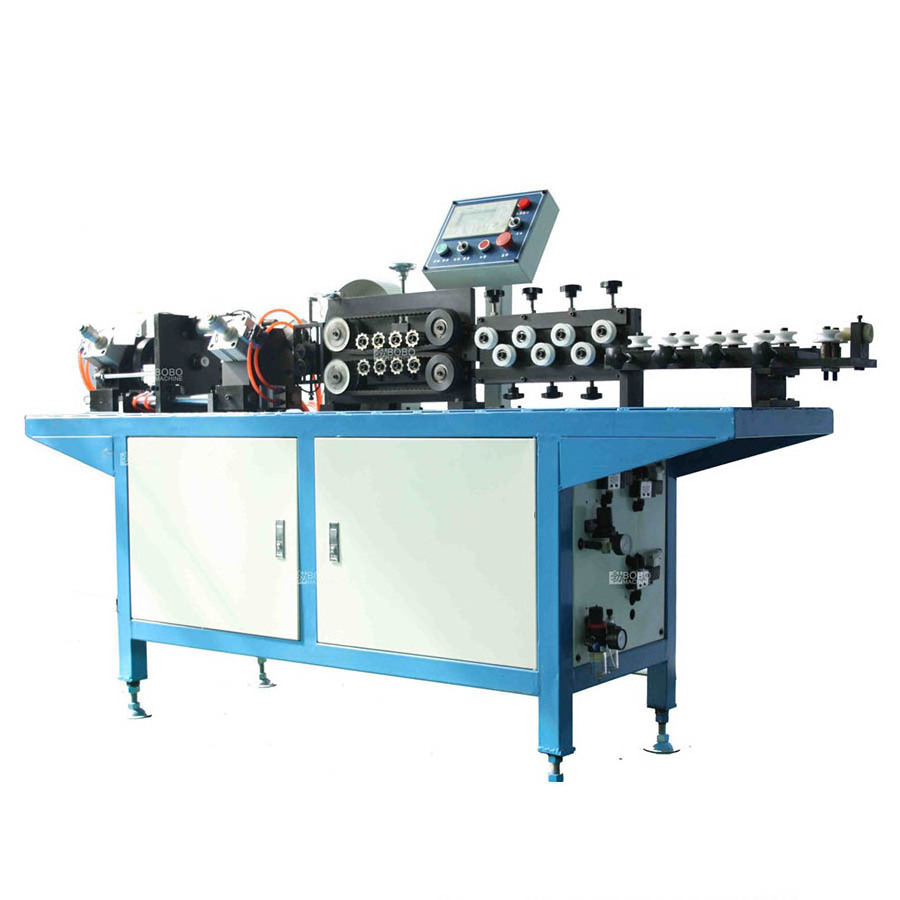

Copper Aluminum Bundy Pipe Straightening & Chipless Cutting Machine
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
CE ISO
-
Weight:
-
460
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Cangzheng
-
Voltage:
-
380V 50Hz
-
Power:
-
1120
-
Dimension(L*W*H):
-
2300 x 650 x 1300 mm
-
Tube Material:
-
Copper / Aluminum / Bundy tube
-
Tube Diameter:
-
4-20mm
-
Cutting Length:
-
>50mm
-
Work Speed:
-
0~60m/min, adjustable by Inverter
-
Cutting Tolerance:
-
0.5mm/1m
-
Control System:
-
PLC control / HMI
-
Motor Power:
-
1.12KW
-
Electric System:
-
380V, 50Hz, 3Phae (Customized)
-
Dimension:
-
2300 x 650 x 1300 mm
-
Name:
-
Copper Aluminum Bundy Pipe Straightening & Chipless Cutting Machine
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
CE ISO
-
Weight:
-
460
Trade Capacity
Product Description
Product Application
The chipless pipe straightening and cutting machine is special designed for copper and aluminum tube process, which is mainly used for tube blanking before tube bending or welding process of condenser and evaporator. Compare to normal design with two-half clamping die, we design the clamping die in three parts according to lathe chuck structure, which can minimize the tube distortion during cutting, and the clamping die changing / adjustment will be more easier.
Main Features
◆Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
◆High accuracy concentricity ensures to get good welding quality in following process.
◆Chipless cutting with 360° rotary cutting and stretching with two points clamping.
◆ Straightening wheel Nylon and “U” shape rubber belt to avoid scratch on tube surface
◆High accuracy concentricity ensures to get good welding quality in following process.
◆Chipless cutting with 360° rotary cutting and stretching with two points clamping.
◆ Straightening wheel Nylon and “U” shape rubber belt to avoid scratch on tube surface
|
|
Parameter
|
Data
|
|
1
|
Tube Material
|
Copper / Aluminum / Bundy tube
|
|
2
|
Tube Diameter
|
4-20mm
|
|
3
|
Cutting Length
|
>50mm
|
|
4
|
Work Speed
|
0~60m/min, adjustable by Inverter
|
|
5
|
Cutting Tolerance
|
0.5mm/1m
|
|
6
|
Control System
|
PLC control / HMI
|
|
7
|
Motor Power
|
1.12KW
|
|
8
|
Electric System
|
380V, 50Hz, 3Phae (Customized)
|
|
9
|
Dimension
|
2300 x 650 x 1300 mm
|
|
10
|
Weight
|
460 KG
|
Detailed Images
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
2300 x 650 x 1300 mm
|
|
|
Weight
|
460kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
