pro-portioned and strictly manufactured and heated evenly
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DM
-
Weight:
-
0.1 KG
-
Working Temperature Range:
-
10 - 750 ℃
-
Core Components:
-
heating wire
-
Resistance wire:
-
Ni80Cr20, FeCrAl etc
-
Resistance tolerance:
-
-5% +5%
-
Sheath material:
-
SS304 / SS316/SS321 / Incoloy800
-
Thermocouple:
-
K or J
-
Lead Connection Option:
-
Crimped or Swaged
-
Insulation:
-
High Purity MgO
-
Heat intensity:
-
Not exceeding 30Wcm2
-
Lead Wire:
-
500mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
ce
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
CUSTOMIZED
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DM
-
Weight:
-
0.1 KG
-
Working Temperature Range:
-
10 - 750 ℃
-
Core Components:
-
heating wire
-
Resistance wire:
-
Ni80Cr20, FeCrAl etc
-
Resistance tolerance:
-
-5% +5%
-
Sheath material:
-
SS304 / SS316/SS321 / Incoloy800
-
Thermocouple:
-
K or J
-
Lead Connection Option:
-
Crimped or Swaged
-
Insulation:
-
High Purity MgO
-
Heat intensity:
-
Not exceeding 30Wcm2
-
Lead Wire:
-
500mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
ce
Products Description
|
Item name
|

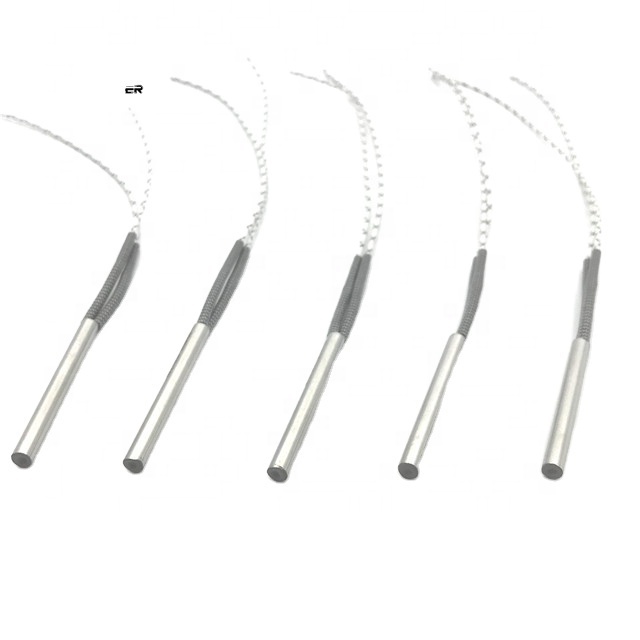

Stainless steel cartridge heater
|
|
Resistance heating wire
|
Ni-Cr or FeCr
|
|
Sheath
|
stainless steel 304, 321, 316, Incoloy 800, Incoloy 840, Tiranium
|
|
Diameter (mm)
|
2.5-35mm (Non- standard can be customized)
|
|
Length (mm)
|
10mm - 10000mm
|
|
Insulation
|
High-purity Mgo
|
|
Tempearture
|
Max 850 ℃
|
|
Voltages available
|
380V, 240V, 220V, 110V, 36V, 24V or 12V
|
|
Power avaiblable
|
Max 50w/cm2
|
|
Thermocouple
|
K type or J type
|
|
Insulation resistance
|
≥50MΩ
|
|
The maximum leakage current
|
≤0.5mA
|
|
Lead wire
|
300mm length, different type of wire ( Teflon/silicone high temperature frberglass)
is available
|
Features
All products are using SUS304 or SUS321 seamless stainless steel pipe, MOG holder and MGO head with high temperature 1800C,99% MGO rod,overseas high temperature MGO powder, Cr20Ni80 resistance wire ,Ni-Mn lead wire and Silicone Rubber wire .It suits for mold heating . Large-scale production with competitive price,Good-look appearance of the product and excellent quality .
Product Details
High temperature
resistant conductor
fast heating speed, professional
more focused
Production process
