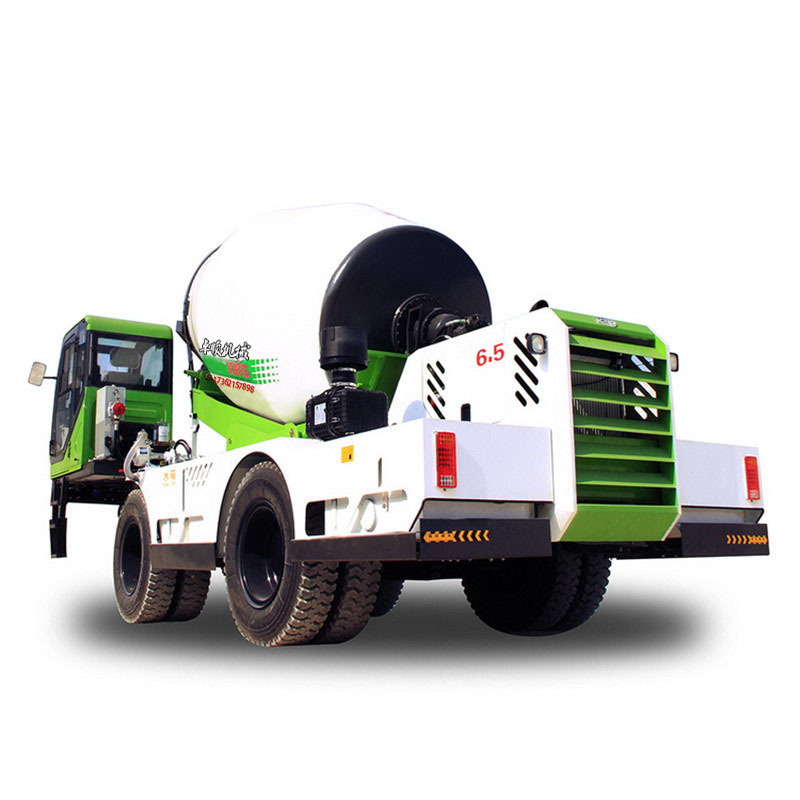

1-8 Cuber meter self loading concrete mixer

1-8 Cuber meter self loading concrete mixer

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 7300 x 2650 x 2750 mm

Power:: 78KW

Quick Details

Place of Origin:: Shandong, China

Brand Name:: zhuoshun

Weight:: 5600 kg

Dimension(L*W*H):: 7300 x 2650 x 2750 mm

Power:: 78KW

SELF LOADING CONCRETE MIXER TRUCK (2.0 CBM)

Product Introduction :

Model CMT2000R Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. It features automatic calculating the proportion of mixing materials, the concrete output ability is 8 cube meters per hour. The wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 25 km/hour, and the min. turning radius is 5.2 meters only.

CMT2000R is equipped with driving camera, automatic water feeding & metering system, electronic water suction pump, etc. The mixing drum can rotate hydraulically through 270 degrees for high discharge over 1.8m on the four sides of the vehicle.The drum can also be lifted up 20° by two hydraulic cylinders at bottom for the convenience of concrete discharge.

l The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

l High strength steel plate, which enhances the load capacity and high stability of vehicle.

l The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.

l Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.

Specification:

Mixing Drum
Mixing volume	2.0 M3
Geometrical volume	2.8 M3
Concrete output	2 M3 / batch, 8 M3 / hour
Drum rotating speed	13 rpm
Drum slewing angle	270°

Engine
Brand	YUCHAI (Cummins Engine optional)
Model	YCD4T22T-105
Type	In-line, 4-Cylinder, Turbo Charged and Water Cooled,
Rated power	78 KW (106HP) @ 2400 rpm
Max torque:	330 N.M @2000 rpm
Emission standard	Euro II

Chassis
Structure	Articulated chassis
Transmission gear	Automatic, 4F+ 4R shift
Driving & steering	4-Wheel drive (4x4), hydraulic articulated steering
Wheelbase	2600 mm
Tread	1510 mm
Axles	Small size wheel-side reducer driving axle
Tyre size	Off road steel cord type, 23.5/70-16

Loading Shovel & Chute
Volumetric capacity	500L
Number of shovel loading times of full drum	Around 4 times
Chute	2 pcs. of discharging chute extensions. Manually rotating at 90 degree.

Cabin
Type	ROPS & FOPS type closed front cab
Joystick control	Double-joystick control the hydraulic system
Weighing system	Optional. The "loading cells" are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin.
Air conditioning system	Optional

Water system
Max. water suction capacity	250 L/min. (Self-priming electronic water pump)
Water tank capacity	2x200 L

Electric system
Alternator	24V-1500W
Battery:	2x12V-80AH

Vehicle
Max. Driving speed	25.0km/h
Gradient	Fully loaded 40%
Min. turning radius	5.2 m
Operating weight	5,600 Kg
Max. payload	4,800 Kg
Max. gross weight	10,400 Kg
Overall size (L×W×H)	7300 mm × 2650 mm × 2750 mm (3750 mm full height)
