Quick Details
-
Scan Speed:
-
1500 line per second
-
Brand Name:
-
Sunany
-
Place of Origin:
-
Guangdong, China
-
OEM/ ODM:
-
Support
-
Factory tour:
-
Support
-
CPU performance:
-
32-bit dual-chip and strong decoding capacity
-
Light source:
-
650nm High intensity laser diode
-
Symbol Contrast:
-
25% of the reflection difference
-
Error rate:
-
less than 1/5000000
-
Scan Angle:
-
Angle of dip 45° elevation 45°
-
Certification1:
-
FCC
-
Certification2:
-
ce
-
Certification3:
-
RoHS
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
Laser
-
Optical Resolution:
-
5mil
-
Scan Speed:
-
1500 line per second
-
Brand Name:
-
Sunany
-
Place of Origin:
-
Guangdong, China
-
OEM/ ODM:
-
Support
-
Factory tour:
-
Support
-
CPU performance:
-
32-bit dual-chip and strong decoding capacity
-
Light source:
-
650nm High intensity laser diode
-
Symbol Contrast:
-
25% of the reflection difference
-
Error rate:
-
less than 1/5000000
-
Scan Angle:
-
Angle of dip 45° elevation 45°
-
Certification1:
-
FCC
-
Certification2:
-
ce
-
Certification3:
-
RoHS

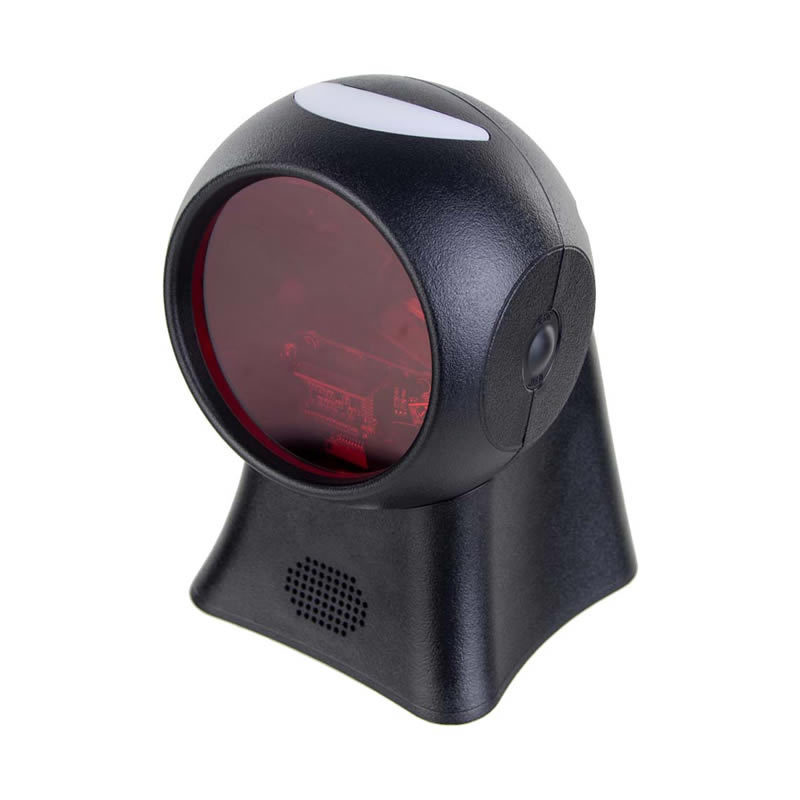

1D POS desktop barcode scanner Automatic Scan 1D Bar Code Reader for store
| Specifications | ||
| Main Parameter | Model | S7120 |
| Interface | USB/ RS232 | |
| Color | black/ white | |
| Light source | 650nm High intensity laser diode | |
| Depth of Field | 0~200mm@(UPC/EAN 100%,PCS=90%) | |
| Scanning speed | 1500 line per second | |
| Resolution | 5mil | |
| Scanning patterns |
all-orientation space scanning (20 laser lines, 5directions)
Single line scan ; sleep and wake |
|
| Symbol Contrast | ≥25%(UPC/EAN 100%) | |
| Scan Angle | Angle of dip 45° elevation 45° | |
| Error rate | less than 1/5000000 | |
| CPU performance | 32-bit dual-chip and strong decoding capacity | |
| LED indicator light |
boot: full color; standby: green; decoding: red;
set state: blue; edit state: purple. |
|
| Sound | stereo speakers | |
| Reading code system | UPC-A,UPC-E,EAN-13,EAN-8,CODE39,Interleaved 2 of 5 ,industrial 2 of 5,Matrix 2 of 5,CODEBAR,CDOE128,CODE93,CODE11,MSI,China Post Code | |
| Electrical | input voltage | DC 5V ±10% |
| Operating current | 265mA | |
| Standby current | 255mA | |
| Physical | Product size | 10.6*11.1*15.5cm |
| Product weight | 284g | |
| Package size | 20*13*115cm | |
| Package weight | 430g (with accessories) | |
| Environmental | Operating Temperature | 0℃~+50℃ |
| Humidity | 5%~95% (non-condensing) | |
| Storage Temperature | -20℃~+60℃ | |
| Ambient Light | 0~4,000Lux(fluorescence),0~100,000Lux(sunlight) | |
| Safety Spec | Electrical safety | CE EN55022 Class B,EN55024 Class B,FCC Part 15 Class B |
| Laser safety | IEC 60825-1:Class 1 | |
Sunany Technology Limited is a professional POS hardware manufacturer, established in 2012, located in Shenzhen, China. Sunany owns a workshop which covers an area of over 1,500 square meters and has more than 40 professional employees. The production capacity is over 6,000 units/month.
test after finishing the production.
countries, the products are widely used in retail, recreation, and catering industry, which has built up the strong cooperation confidence with our clients. Sunany provides the most optimized products to meet our clients' various demands.
Q: Are you a manufacturer?
Re: Yes, Sunany is a POS hardware manufacturer, based in Shenzhen, China.
Q: Can I visit your factory?
Re: Sure, welcome to visit our factory at any time.
Q: How many days will I get the sample?
Re: Generally, 3-5 days for production, and 3-7 days for transportation, so you will get goods 6-12 days.
Q: What kind of certifications do you have?
Re: CE, ROHS, FCC as standard.
Q: May I have your product catalog
Re: Yes, welcome to send email to info#sunany.com about your inquiry, we will send you the catalog for reference.
Q: How long the warranty do you offer?
Re: We provide a 13 months or 15 months warranty according to different products. The warranty period starts from the invoice date.
Q: Would the POS machine comes with POS software?
Re: We are a POS hardware manufacturer, so the POS machine equips with operating system only, not including with POS software.There is no common POS software to provide, because different country has different language, different applications with different requirements.
Q: What are your shipping terms?
Re: It is available to ship via express (DHL/FedEx/EMS/UPS/TNT), via air, via train, via sea. We will try our best to check the economical shipping way for you.
