Ningbo Master Soken Electrical Co., Ltd. established in 1999, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-

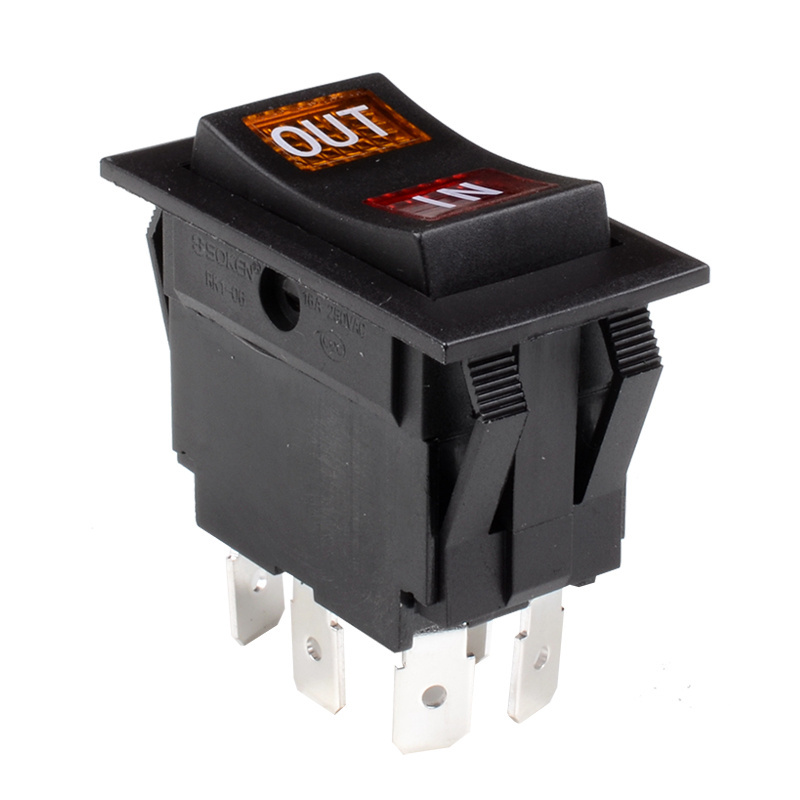

RK1-06A, Soken plastic power window safety rocker switch T85
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000 Cycles
-
Operating Temp:
-
-25+85°C
-
Electrical Life:
-
10,000 Cycles
-
Contact Rating:
-
16A 125VAC(UL) 16(6)A 250VAC(VDE)
-
Function:
-
ON-OFF,ON-OFF-ON,ON-ON
-
Certificate:
-
UL,CQC,TUV,VDE,ENEC,KEMA
-
Housing color:
-
Black,White
-
Housing Materials:
-
PA66 materials base
-
Cover color:
-
Black,White,Red,Green
-
Push Button:
-
PC
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
China
-
Brand Name:
-
SOKEN
-
Model Number:
-
RK1-06A, Soken plastic power window safety rocker switch T85
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000 Cycles
-
Operating Temp:
-
-25+85°C
-
Electrical Life:
-
10,000 Cycles
-
Contact Rating:
-
16A 125VAC(UL) 16(6)A 250VAC(VDE)
-
Function:
-
ON-OFF,ON-OFF-ON,ON-ON
-
Certificate:
-
UL,CQC,TUV,VDE,ENEC,KEMA
-
Housing color:
-
Black,White
-
Housing Materials:
-
PA66 materials base
-
Cover color:
-
Black,White,Red,Green
-
Push Button:
-
PC
|
Rating
|
250VAC 16A
|
|
Rated Load
|
16A 250V AC
|
|
Contact Resistance
|
100MΩ Max
|
|
Dielectric Intensity
|
1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
|
|
Withstand Voltage
|
1500VAC/min
|
|
Operating Temperature
|
-25~85°C
|
|
Insulation Resistance
|
500VDC, 100MΩ Min
|
|
Electrical Life
|
≥10,000 cycles
|
|
Pins (Terminals)
|
4 pins, 6 pins
|
|
Housing material
|
PA66
|
|
Push Button
|
PC
|
|
Contact Resistance：
|
100mΩ Max
|
|
|
Insulation Resistance：
|
500VDC，100MΩ Min
|
|
|
Dielectric Strength：
|
Terminal and terminal：1500VAC 5s
|
|
|
|
Terminal and ground：3000VAC 5s
|
|
|
Operating Temperature：
|
-25～85°C
|
|
|
Electrical Life：
|
10000 Cycles
|
|
|
Rating：
|
|
|
|
RK1Series：
|
16A 125VAC(UL)
16(6)A 250VAC(VDE) 16A 250VAC (TUV KEMA/ENEC K CQC RCM) 23A 250VAC T100/55(TUV) |
|
|
RK2Series：
|
6A 125VAC,10A 125/250VAC(UL)
6(4)A 250VAC(VDE) 10A 250VAC(TUV KEMA/ENEC CQC) 16A 250VAC T100/55(CQC TUV) |
|
|
Model
|
RK1-06A
|
|
|
|
|||
|
Function
|
ON OFF /DPST /4pin (06)
ON ON /DPDT /6pin (08) ON OFF with lamp /DPST /4pin (07) |
|
|
|
|||
|
Base plastic
|
Nylon 66
|
|
|
|
|||
|
Button plastic
|
PC
|
|
|
|
|||
|
Copper parts such as terminal
|
Copper
|
|
|
|
|||
|
Terminal surface treatment
|
Silver plating
|
|
|
|
|||
|
Contact
|
Ag or Composite silver
|
|
|
|
|||
|
Spring
|
Steel Wire
|
|
|
|
|||
|
Waterproof Material
|
PVC
|
|
|
|
|||
