Quick Details
-
Brand Name:
-
UHV
-
Model Number:
-
HTYWS-H
-
Product name:
-

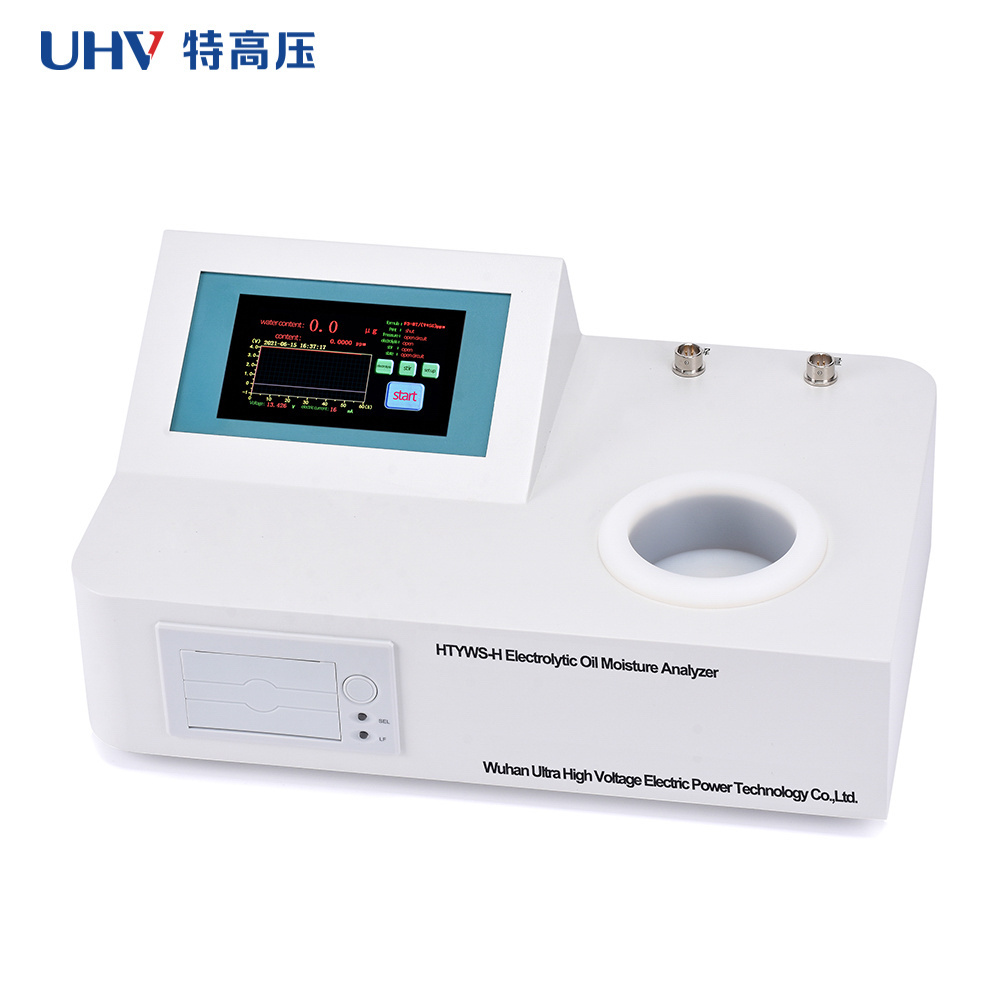

Trace Moisture Tester
-
Maximum power consumption:
-
30W
-
Power supply:
-
AC220V±20%
-
Dimension:
-
320*240*150(mm)
-
Electrolysis water volume:
-
10ug~1000ug
-
Measuring range:
-
0ug~200mg
-
Resolution:
-
0.1ug
-
Temperature:
-
10~35℃
-
Humidity:
-
<85%
Quick Details
-
Warranty:
-
1 years, 1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
UHV
-
Model Number:
-
HTYWS-H
-
Product name:
-
Trace Moisture Tester
-
Maximum power consumption:
-
30W
-
Power supply:
-
AC220V±20%
-
Dimension:
-
320*240*150(mm)
-
Electrolysis water volume:
-
10ug~1000ug
-
Measuring range:
-
0ug~200mg
-
Resolution:
-
0.1ug
-
Temperature:
-
10~35℃
-
Humidity:
-
<85%
Product Description
The method is widely used for the accurate measurement of trace moisture content in samples.Based on the principle of Karl fischer coulomb titration, the micro-moisture tester can accurately determine the micro-moisture in liquid solid gas, which is used in the electric power, petrochemical, pharmaceutical, food and other industries in line with the national standard GB7600. The main technical features and functions of the micro-moisture tester:
The micro-moisture tester USES a powerful new generation processor and a brand-new peripheral circuit, which has excellent low power consumption. As the criterion of the end of electrolysis, the stability and accuracy of the measured electrode signal are the key factors affecting the measuring accuracy;Further understanding of the characteristics of electrolyte, a new software compensation algorithm is proposed to improve the measurement accuracy. Chinese graphic liquid crystal display, display interface intuitive and friendly.
The micro-moisture tester USES a powerful new generation processor and a brand-new peripheral circuit, which has excellent low power consumption. As the criterion of the end of electrolysis, the stability and accuracy of the measured electrode signal are the key factors affecting the measuring accuracy;Further understanding of the characteristics of electrolyte, a new software compensation algorithm is proposed to improve the measurement accuracy. Chinese graphic liquid crystal display, display interface intuitive and friendly.
Product Paramenters
Features
1. Use 240x128 graphics dot matrix liquid crystal, no logo button, friendly interface.
2. Switching constant current source electrolytic circuit (patented technology) is used to reduce the power consumption of the instrument.
3. Portable instrument with battery (optional), after the battery is fully charged, can be used continuously for more than 8
hours under normal test conditions; And the battery power detection and display function.
4.The high-precision electrode signal generation and detection circuit makes the judgment of the end point of electrolysis fast and accurate, and has strong anti-interference ability.
5.Two methods are used to correct the measurement results.
6.Three calculation formulas are available for users to choose and automatically calculate moisture content.
7.10 Adjust stirring speed; 10 Channel electrolytic gain adjustment.
8. It has the function of measuring electrode open circuit fault, short circuit fault automatic detection.
9. Automatic storage with time - marked history, up to 255 storage.
10. The calendar clock with temperature compensation can run for more than 10 years under the condition of power failure.
11. With the screen saver function, it can automatically turn off the LCD screen without operating the instrument for a long
time, extend the service life of the LCD, and press any key to exit the screen saver state.
12. USB port is left for easy communication with computer.
2. Switching constant current source electrolytic circuit (patented technology) is used to reduce the power consumption of the instrument.
3. Portable instrument with battery (optional), after the battery is fully charged, can be used continuously for more than 8
hours under normal test conditions; And the battery power detection and display function.
4.The high-precision electrode signal generation and detection circuit makes the judgment of the end point of electrolysis fast and accurate, and has strong anti-interference ability.
5.Two methods are used to correct the measurement results.
6.Three calculation formulas are available for users to choose and automatically calculate moisture content.
7.10 Adjust stirring speed; 10 Channel electrolytic gain adjustment.
8. It has the function of measuring electrode open circuit fault, short circuit fault automatic detection.
9. Automatic storage with time - marked history, up to 255 storage.
10. The calendar clock with temperature compensation can run for more than 10 years under the condition of power failure.
11. With the screen saver function, it can automatically turn off the LCD screen without operating the instrument for a long
time, extend the service life of the LCD, and press any key to exit the screen saver state.
12. USB port is left for easy communication with computer.
