Quick Details
-
Brand Name:
-
CHINA ELECTRIC
-
Model Number:
-
YKK series
-
Frequency:
-
50/60Hz
-
Duty:
-
Continuous(S1)
-
Cooling method:
-
Normal IC611, IC616
-
Insulation class:
-
F
-
Rotor type:
-
Squirrel cage motor
-
construction:
-
box-type
-
Applications:
-
driving compressor, water pump, crack machine, cut machine,etc
-
Protection type:
-
IP44 IP54 IP55
-
Mounting arrangement:
-
IMB3
-
Outside Color:
-
As required
-
Product name:
-
10 KV YKK High Voltage Electric Ac motor
Quick Details
-
AC Voltage:
-
3 kv 3.3 kv 6 kv 6.6 kv 10 kv 11 kv
-
Warranty:
-
18 months after shipment
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHINA ELECTRIC
-
Model Number:
-
YKK series
-
Frequency:
-
50/60Hz
-
Duty:
-
Continuous(S1)
-
Cooling method:
-
Normal IC611, IC616
-
Insulation class:
-
F
-
Rotor type:
-
Squirrel cage motor
-
construction:
-
box-type
-
Applications:
-
driving compressor, water pump, crack machine, cut machine,etc
-
Protection type:
-
IP44 IP54 IP55
-
Mounting arrangement:
-
IMB3
-
Outside Color:
-
As required
-
Product name:
-
10 KV YKK High Voltage Electric Ac motor

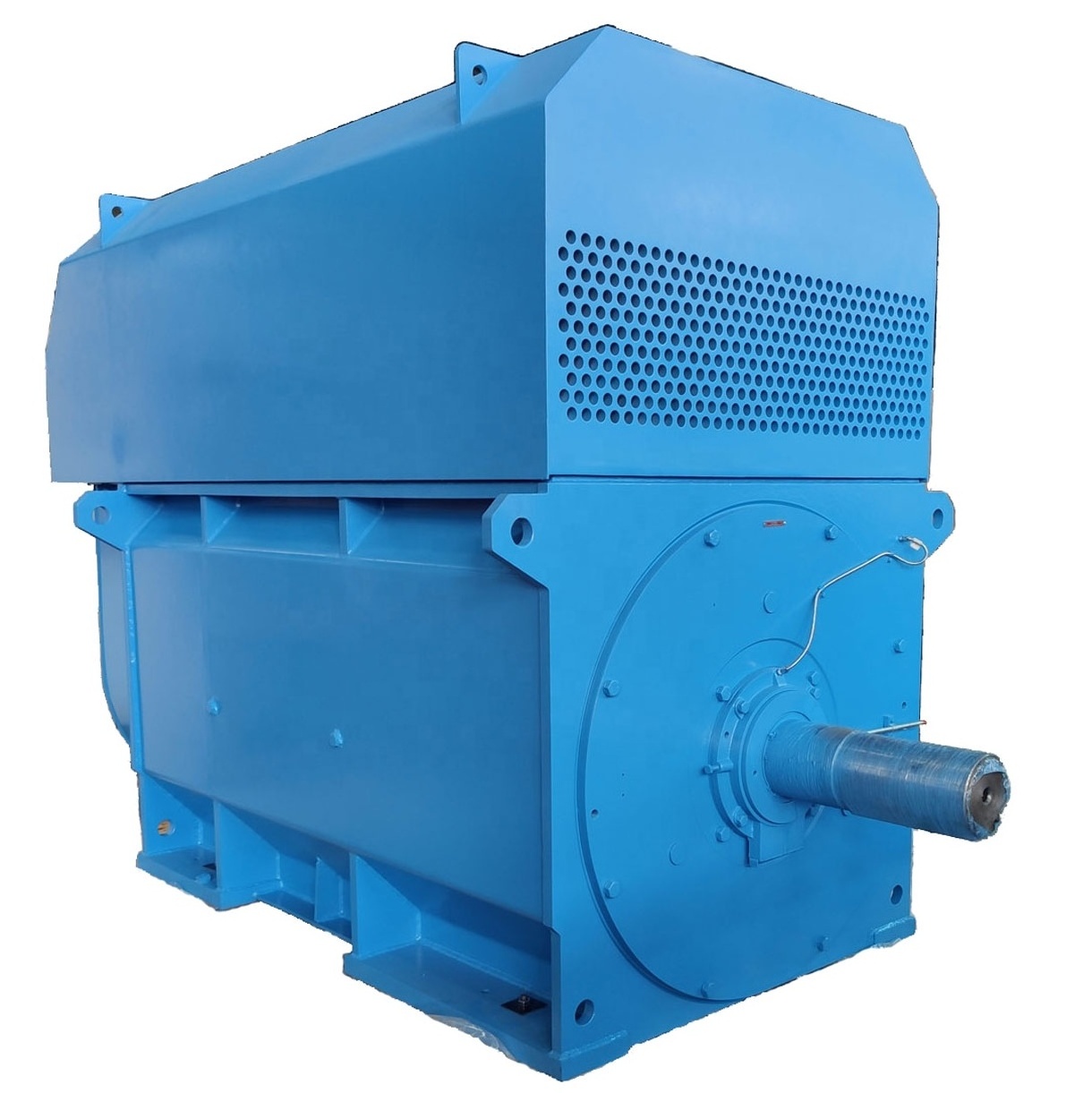

10 KV YKK High Voltage Electric Ac motor
Description:
YKK Series High Voltage Squirrel cage Electric Motor
|
Squirrel cage motor |
Y |
YKK |
YKS |
Y2 |
|
|
Slip ring motor |
YR |
YRKK |
YRKS |
/ |
|
|
1 |
Structure |
Box-type construction, made up of steel plates welded with each other |
Compact struction |
||
|
2 |
Cooling method |
IC01 or IC11, IC21, IC31 |
IC611 or IC616 |
IC81W |
IC411 |
|
3 |
Natural ventilation, with top mounted protection cover |
With top mounted air-air cooler |
With top mounted air-water cooler |
TEFC |
|
|
4 |
Protection type |
IP23 |
IP44 IP54 IP55 |
IP44 IP54 IP55 |
IP54 IP55 |
|
5 |
Insulation |
F |
|||
|
6 |
Mounting arrangement |
IMB3 |
|||
|
7 |
Voltage available |
3 kv, 3.3 kv; 6 kv, 6.6 kv; 10 kv, 11 kv |
|||
|
8 |
Frequency available |
50 Hz , 60 Hz |
|||
10KV YKK High Voltage Electric Ac motor
10KV YKK High Voltage Electric Ac motor
|
1. Inquiry response within 24 hour. 2. Ensure every quotation is practical &customized according to your requirement. 3. P rovide the design suggestions and layout plan for the clients workshop. 4. P rovide the technical specification of the auxiliary facilities. 5. Provide p rofessional proposal for the whole project. 6. Engeneers are available to serve the machines overseas. 7. Our factory always welcome to your visit. We can take you to visit our local customers. 8. Quality assurance: 18months except consumable parts.
We devote to good performance , strong packing , mature service to satisfy our clients . |
