2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
- Product Details
- {{item.text}}
Quick Details
-
Wire diameter of coiled material:
-
Dia.1.0-4.5mm(iron wire Dia.1.0-6.0mm)
-
Max outer diameter of coiled spring:
-
Max 80mm
-
Wire Feed instruction value:
-
±0.01-±9999.99
-
Max Wire Feed speed:
-
0-110m/min
-
Cam instruction value:
-
±0.1° -±359.9°
-
Cam rotation speed:
-
1-60RPM
-
Wire feed servo power:
-
5.5KW
-
Core-switching servo motor:
-
1.5KW
-
Cam servo motor:
-
5.5KW
-
Power supply:
-
380V ± 10%V 50HZ
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YINFENG
-
Weight (KG):
-
1000
-
Wire diameter of coiled material:
-
Dia.1.0-4.5mm(iron wire Dia.1.0-6.0mm)
-
Max outer diameter of coiled spring:
-
Max 80mm
-
Wire Feed instruction value:
-
±0.01-±9999.99
-
Max Wire Feed speed:
-
0-110m/min
-
Cam instruction value:
-
±0.1° -±359.9°
-
Cam rotation speed:
-
1-60RPM
-
Wire feed servo power:
-
5.5KW
-
Core-switching servo motor:
-
1.5KW
-
Cam servo motor:
-
5.5KW
-
Power supply:
-
380V ± 10%V 50HZ

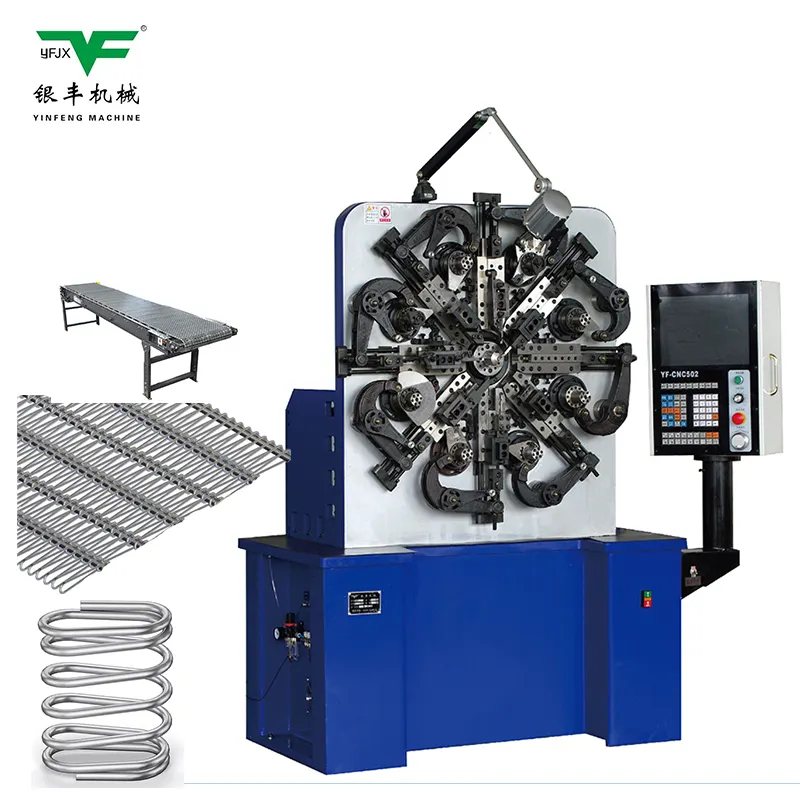

Products Description
Product advantages 1
The crimp function has a detachable installation function, which has a faster processing speed for corner processing and arc bending. The function of the wire transfer system solves the problem that the entire wire feed of the spring machine can be rotated 360 degrees in the forward and reverse directions during the wire feed process.
Multiple angle forming and cutting, also improve the working efficiency of the machine, more convenient debugging, simpler forming, more convenient operation, more powerful functions. Suitable for the production of double torsion springs, straight springs, pagoda springs, tension springs, Rectangular spring wire forming, steel skin vortex spring, spring and various fancy springs, complicated and difficult shaped springs, etc.
Product advantages 2
YF Brand CNC spring machine concentrated have unique increase stroke, specially processed complex shape of the spring unique tuner-core structure, never relaxed, no maintenance, unique integrated feed line structure, Japan servo motor and Taiwan CNC control system ensure the accuracy of the wire feed to meet the demanding requirements, production good quality spring.
Product advantages 2
1. A precious inspection tracer device is installed, it will stop working automatically When the unqualified product is found.
2.The parameters such as major diameter, angle etc can be modified at any time according to the working status displayed on the fluorescence screen.
3.It is suitable for producing double torsion spring, straight spring, pagoda- -shaped compression spring, rectangle spring,swirl spring and other different spring and special-shaped spring etc.
Automatic material feed frame
2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
Varied Material Application
aluminum Flat Wire
Square Wire
Flat Copper Tube
Copper Wire
Iron Wire
Steel Wire
Optional Tools
Spinner Device
Axis
Servo Motor Cutter Axis
Sharpening Device
Axis
Our Yinfeng Machine Can Make Any Kinds Of Spring, Also We Can Customized Extra Function According To Your Requirements.
Manufacturing Product Videos
Product Paramenters
|
Model
|
YF-8322
|
YF-8335
|
|
Wire diameter of coiled material
|
Φ0.2-Φ2.5mm(iron wire0.5-03.5mm)
|
Φ0.5-Φ3.5mm(iron wirectΦ1.0-Φ5.0mm)
|
|
Max outer diameter of coiled spring
|
Max
|
Max 080 mm
|
|
Wire Feed instruction value
|
±0.01-±9999.99
|
±0.01-±9999.99
|
|
Max Wire Feed speed
|
0-110m/min
|
0-110m/min
|
|
Cam instruction value
|
±0.1° -±359.9°
|
±0.1° -±359.9°
|
|
Cam rotation speed
|
1-100RPM
|
1-60RPM
|
|
Wire feed servo power
|
2.7KW
|
4.5KW
|
|
Core-switching servo motor
|
0.75KW
|
1.0KW
|
|
Cam servo motor
|
2.7KW
|
4.5KW
|
|
Power supply
|
380V ± 10%V50HZ
|
380V ± 10%V50HZ
|
|
Size
|
1500X900X1900mm
|
1700X1300X2000mm
|
|
weight
|
800KG
|
1000KG
|
Price list could be sent upon request, just kindly contact us:
Ms Grace Email: yinfengspring@163.com Cell/Whatsapp:+8618520279887
