Switch Type :
|

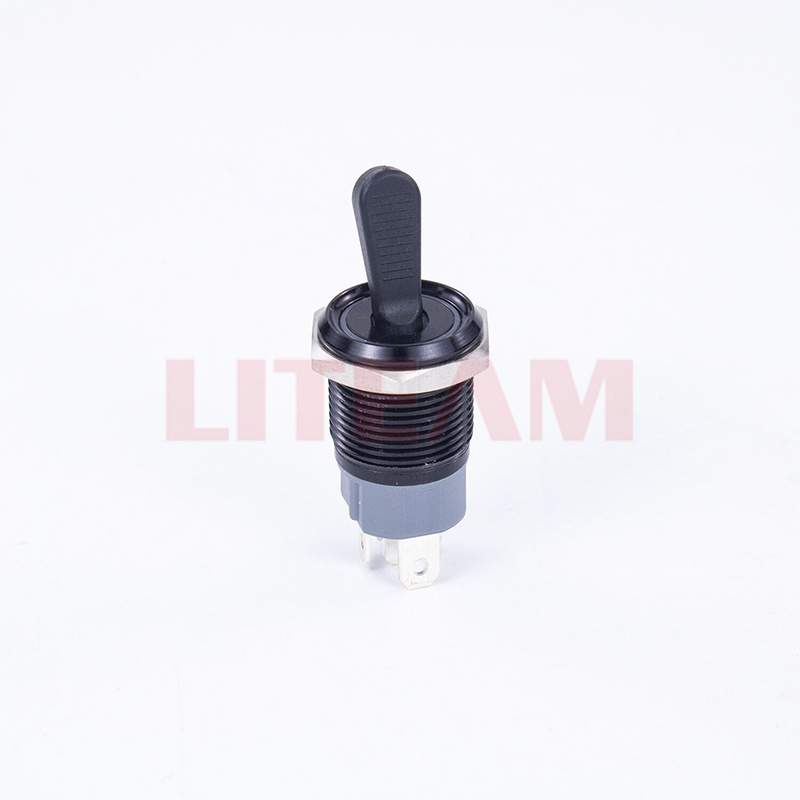

16mm Metal Toggle Switch
|
|
Metal Switch Model Number :
|
LTD16NZ-11E/Z/J/S
|
|
Mounting Hole Size(Diameter) :
|
16mm
|
|
Head Type :
|
Flat Head With Handle
|
|
Contact Configuration :
|
1NO1NC
|
|
LED Lamp :
|
Ring Shaped
Single-Color
,
Bi-color
LED
Lamp
|
|
Optional LED Color :
|
RED, GREEN, YELLOW, BLUE, WHITE
|
|
Operation Type :
|
Latching(Self-locking)
|
|
Shell Material :
|
Stainless Steel (or Aluminum Alloy)
|
|
Switch Shell Color :
|
Silver (or Aluminum Alloy Black)
|
|
Custom Solder Wire :
|
Available
|
|
Samples :
|
Available.
Welcome to contact us!
|
|
Other Accessories :
|
High Quality Nut + Waterproof Rubber O-ring
|
|
Brand Name :
|
|
|
LITEAM
|
LITEAM
|
|
||||
|
Certification :
|
|
|
CE
|
|
CE
|
||||
|
Max. Current :
|
15A
|
|
Max. Voltage :
|
220V (or customise)
|
|
||||
|
Protection grade :
|
IP65/IP67/IP68; IK08/IK10
|
|
Mechanical Life :
|
More than 1 million time
|
|
||||
|
Contact Resistance :
|
≤50mΩ
|
|
Insulation Resistance :
|
≥1000MΩ
|
|
||||
|
Working Environment Humidity :
|
Working Environment
Humidity
|
|
Working
Temperature :
|
-25°C ~ +55°C (No freezing; Air circulation)
|
|
||||
|
Vibration Resistance :
|
50HZ, Amplitude ≈ 1.2mm
|
|
Accessories :
|
Nut, Waterproof O-ring
|
|
||||
|
Operation Type :
|
|
|
Momentary(Spring return) ; Latching(Self locking)
|
|
|
||||
|
Contact Configuration Introduction :
|
|
|
NO=Normal Open ; NC=Normal Close
|
|
|
||||
