Quick Details
-
Gross Vehicle Weight:
-
16000
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Field maintenance and repair service
-
Dimensions (L x W x H) (mm):
-
10965x2490x3300
-
Place of Origin:
-
Hubei, China
-
warranty:
-
one year
-
Product name:
-
asphalt truck
-
Driving type:
-
LHD RHD
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.Shacman
-
Color:
-
Customer's Require
-
Certification:
-
ISO9001 CCC
-
Transmission:
-
Manual Operation
-
Emission standard:
-
Euro 1/2/3/4/5
-
Horse power:
-
290hp.371hp.380hp.420hp
-
Tank material:
-
Carbon Steel
-
Engine Capacity:
-
9726
Quick Details
-
Condition:
-
New
-
Drive Wheel:
-
4X2
-
Brand Name:
-
chengliwei
-
Gross Vehicle Weight:
-
16000
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Field maintenance and repair service
-
Dimensions (L x W x H) (mm):
-
10965x2490x3300
-
Place of Origin:
-
Hubei, China
-
warranty:
-
one year
-
Product name:
-
asphalt truck
-
Driving type:
-
LHD RHD
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.Shacman
-
Color:
-
Customer's Require
-
Certification:
-
ISO9001 CCC
-
Transmission:
-
Manual Operation
-
Emission standard:
-
Euro 1/2/3/4/5
-
Horse power:
-
290hp.371hp.380hp.420hp
-
Tank material:
-
Carbon Steel
-
Engine Capacity:
-
9726

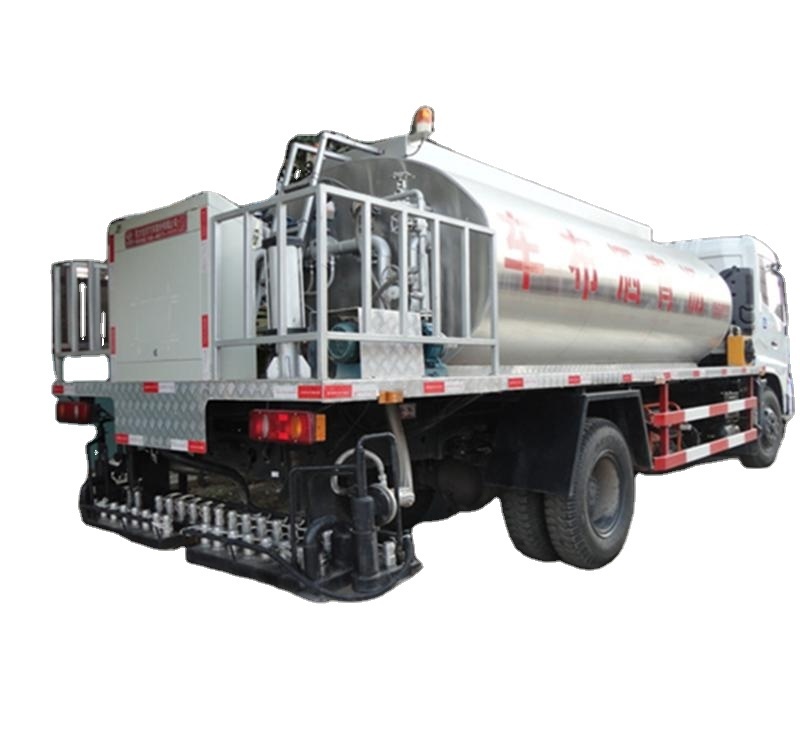

CLW brand asphalt bitumen tank truck, bitumen storage tank, bitumen asphalt tank truck
Asphalt distributor is a highly precise measuring asphalt spreader .It is often used to road construction and maintenance of bridges ,highways ,tunnels ,airports,country roads work.
Asphalt distributor truck adopts asphalt spray bar fixed value display device ,nozzle auto-control device ,etc. In the aspect of spraying ,Auto-burner controls burners switch automatically.Asphalt flow rate indicator can adjust spray volume.It has the same spray efficiency as intelligent asphalt distributor ,it can satisfy the high -tech requirement of high rate of road asphalt spraying .
|
Asphalt sprayer truck |
||
|
# |
Descriptions |
Specifications and types |
|
General |
Truck Brand |
Chengliwei (our brand) |
|
|
Chassis Brand |
Dongfeng |
|
|
Approx. Dimension |
8590 * 2500 * 2840 mm |
|
|
GVW./Kerb Wt. |
16000 / 9400 kg |
|
Cab |
Cab Capacity |
3 persons' seat |
|
|
Air Conditioner |
Air Conditioner is optional |
|
Chassis |
Drive Type |
4 X 2 , left hand drive |
|
|
Fuel Type |
Diesel |
|
|
Engine Make & Model |
Dongfeng ENGINE |
|
|
Power |
21 0 Ps / 155 KW |
|
|
Displacement |
6700 ml |
|
|
Emission Standard |
Euro II or EURO III or EURO IV |
|
|
Brake |
Air Brake |
|
|
Wheelbase/No.of axle |
5000,4700,4500 mm / 2 |
|
|
Tyre Specfication |
9.00R20,10.00-20,10.00R20 |
|
|
Tyre Number |
6 tyres and 1 spare tyre |
|
|
Max Speed |
90 km/h |
|
|
Paint |
Automative metallic paint |
|
Bitumen tank |
Medium |
Liquid Asphalt |
|
|
Density |
0.9kg/cm3 |
|
|
Insulation layer |
105 mm |
|
|
Capacity |
7-10 CBM |
|
Equipment |
Equipped with high quality carbon steel bitumen tank,powerful bitumen pump, Italy brand burner, auxiliary engine for spray pump,air compressor ,bitumen distributor pipeline,etc
|
|
Intelligence Asphalt sprayer truck superstructure specification :
Truck mode :CLW5168GLQTZ4
Spraying medium: hot asphalt,modified asphalt,
emulsified asphalt ,rubber asphalt
Spraying width:2500-6000mm
Spraying amount:0.3-3.0L/m2
Spraying deviation:+/- 1.5%
Method of heating :Italy brand diesel generator
Asphalt tanker capacity:8000L-10000L
No. Of Spraying nozzles:48
Hydraulic system max pressure:15mpa
Transmission system :hydraulic system
Method of cleaning : diesel clean and high pressure air cleaning
Way of asphalt insulation :heat transfer oil insulation
Asphalt pump :European brand
Asphalt pump motor :European brand
Control system:European brand
Adventure of asphalt spray truck 16 ton :
1 Main parts such as Hydraulic pump ,asphalt pump etc all adopted European famous brand
2 Asphalt pump adopted thermal conductive oil insulation ,conservation of energy
3 Easy to control
4 It is widely use for transportation and distribution of hot asphalt,modified asphalt
5 Two ways of cleaning asphalt pump and pipeline :diesel cleaning and high pressure air cleaning , it makes spraying nozzles and pipeline clean all the time .
6 Max spraying width 6m ,efficiency ,reliable quality with good performance.
