Quick Details
-
Cross section, solid/soft Cable:
-
0.2-4 mm² / 0.2-2.5 mm²
-
Material:
-
Material
-
Color:
-
Gray / Customized
-
Application:
-
Wire Connecting
-
Current:
-
31A
-
Voltage:
-
800V
-
Certificate:
-
ISO9001/CE/ROHS
-
OEM/ODM/Sample:
-
Offer
-
Packing:
-
Box
-
Item:
-
Push in Spring Cage Din Rail Terminal Blocks
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HONGYI
-
Model Number:
-
PT 2.5
-
Cross section, solid/soft Cable:
-
0.2-4 mm² / 0.2-2.5 mm²
-
Material:
-
Material
-
Color:
-
Gray / Customized
-
Application:
-
Wire Connecting
-
Current:
-
31A
-
Voltage:
-
800V
-
Certificate:
-
ISO9001/CE/ROHS
-
OEM/ODM/Sample:
-
Offer
-
Packing:
-
Box
-
Item:
-
Push in Spring Cage Din Rail Terminal Blocks

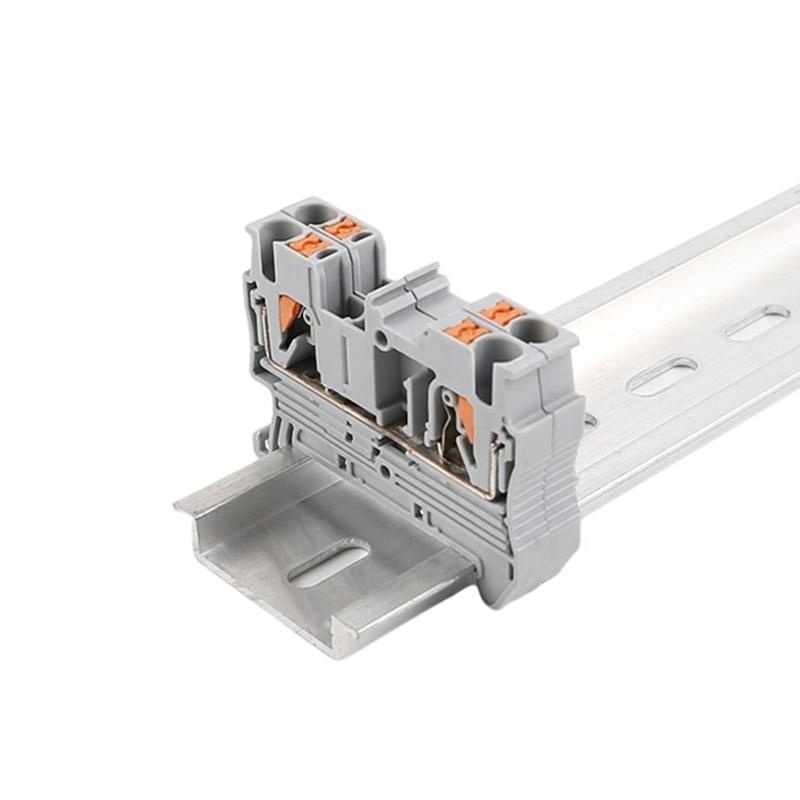

PT 2.5 Installation Screwless Pluggable Quick Wire Connector Mount Electrical Push in Spring Cage Din Rail Terminal Blocks
If you need more information about this product.Please CLICK HERE t o contact our sales staff and we will provide you with more information about the products.And you can get sample soon.
PT series terminals block
Specifications
1. Terminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.
2. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.
3. Electric potential distribution is realized by eitherconnecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack.
4. General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal with multiple sections.
5. The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of high mechanical intensity, good electic property, and super flexibility.
6. Two ends on the top with white marking system to realize uniformed sign.
7. 15 years lifetime.
8. OEM acceptable.
|
Model N o. |
PT 2.5 |
|
Length/Height/Wide (mm) |
L48.5/H35.5/W5.2 mm |
|
Type |
Push in Spring Cage Din Rail Terminal Blocks |
|
Material |
Flame resistant Nylon PA66 , Nickel plated brass conductor |
|
Rated Voltage /Current |
800V/31A |
|
Application |
Wire Connecting |
|
C ross section , solid/soft Cable |
0. 2 - 4 mm² / 0. 2 - 2 .5 mm² |
|
Conductor Size |
24-12 AWG |
|
Mounting Type |
DIN Rail NS 35 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
LOGO can be customized |
|
Color |
Grey, Blue, other color can be customized |
|
Certification |
CE/Ro HS / CQC/ISO 9001 |
|
Name |
Push in Spring Cage Din Rail Terminal Blocks |
