Quick Details
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KXJ
-
module:
-
EK3
Main Features

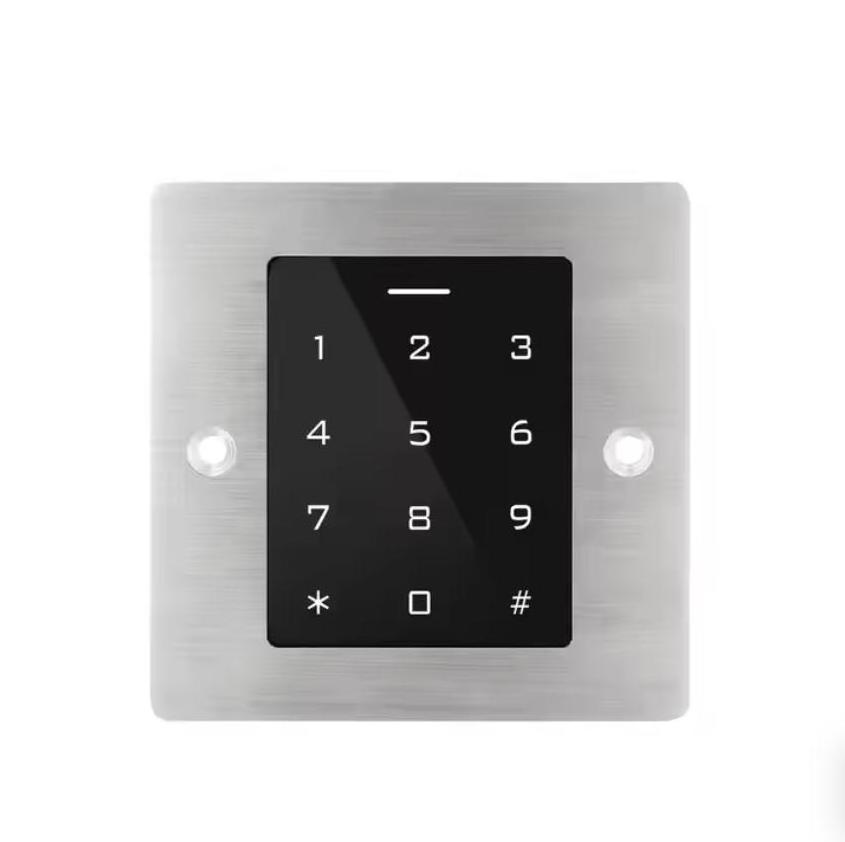

> Metal case, embedded design
> Waterproof, IP66
> One relay, 1000 users (990 Normal Users + 10 Visitor Users)
> 3 access modes: Card, PIN, Card + PIN
> Card type: 125KHz EM card
> PIN length: 4~6 digits
> Anti-tamper alarm
> Wiegand 26 bits output
> Wiegand 26/34 bits input automatic identification
Specification
|
User Capacity
Normal Users Visitor Users |
1000 Cards/PINS
990 10 |
|
Operating Voltage
Idle Current Active Current |
12~18V DC
30mA 120mA |
| Keypad | 12 Keys |
|
Proximity
Card Reader
Radio Technology Read Range |
EM
125KHz EM Card 0-6 cm |
| Wiring Connections | Relay Output, Exit Button, wiegand(in&out) |
|
Relay
Adjustable Relay Output Time Lock Output Load |
One (NO, NC, Common)
0-99 Seconds (5 seconds default) 2 Amp Maximum |
|
Environment
Operating Temperature Operating Humidity |
Outdoor (IP66)
-40 ° C~ 60 ° C (-40 ° F ~ 140 ° F) 10%RH-90%RH |
|
Physical
Color Dimensions Unit Weight Shipping Weight |
Stainless Steel Plate
Silver & Black 86x86x25mm 245g 285g |
