Quick Details
-
Model Number:
-
QS-WIFI-C01
-
Mechanical Life:
-
2 years
-
Product Name:
-
Wifi curtain module
-
Voltage:
-
220-240V AC
-
Max.Current:
-
3A
-
Color:
-
White/Customized Color
-
App Name:
-
Smart Life/Tuya Smart
-
Voice Control:
-
Via Google Home Amazon Alexa
-
Wifi Frequency:
-
2.4~2.4835GHz 802.11 b/g/n
-
Certificates:
-
CE ROHS
-
Warranty:
-
24 Months
-
Application:
-
Curtain
Quick Details
-
Max. Current:
-
3A
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
QS-WIFI-C01
-
Mechanical Life:
-
2 years
-
Product Name:
-
Wifi curtain module
-
Voltage:
-
220-240V AC
-
Max.Current:
-
3A
-
Color:
-
White/Customized Color
-
App Name:
-
Smart Life/Tuya Smart
-
Voice Control:
-
Via Google Home Amazon Alexa
-
Wifi Frequency:
-
2.4~2.4835GHz 802.11 b/g/n
-
Certificates:
-
CE ROHS
-
Warranty:
-
24 Months
-
Application:
-
Curtain

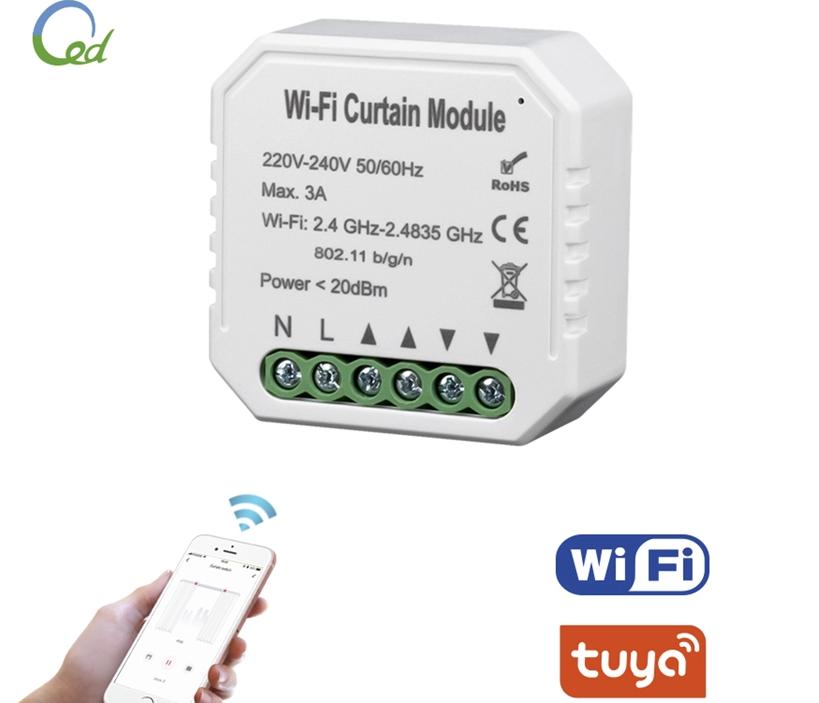

This is a DIY Curtain Module which will transform your traditional curtain switch into Smart Switch controlled by your Mobile Phone,Alexa and Google Home.
| Item | Smart home DIY curtain switch |
| Item No. | QS-WIFI-C01 |
| Rated Voltage | 220-240v 50Hz |
| Rated Current | 3A |
| Protocol |
WIFI 2.4GHz~WIFI 2.4835GHz IEEE 802.11 b/g/n Bluetooth 4.0 available Zigbee 3.0 available |
| App | Tuya Smart/Smart Life..... |
| Channel | 1 Channel/Gang |
| Certificates | CE ROHS FCC |
| Warranty | 3 years |
QualityLED smart Wi-Fi switch modules conform to European quality and saftey stardands, CE & RoHs & FCC approved, tested by interteck lab.
EMC Standard (EMC)
EN 300 328 V2.1.1 (2016-11),
EN 301489-1 V2.1.1 (2017-02),
EN 301489-17 V3.1.1 (2017-02),
EN 62311: 2008, EN 55015:20 13 +A1:2015, EN 61547:2009
EN 61000-6-1:2007
EN 61000-6-3:2007+A1:2011
Safety Standard (LVD)
IEC 60669-2-1:2002/AMD1:2008/AMD2:2015, IEC 60669-1:1998/AMD1:1999/AMD2:2006,
EN 60669-2-1:2004+A1: 2009+ A2:2010,EN 60669-1:2018
RoHS Standard (RoHS)
2011/65/EU, (EU) 2015/863
Radio Equipment (RED)
ETSI EN 300 328 V2.1.1 (2016-11)
Main Features
1. Easy to install with Small Size 46x46x18mm.
2.Make the traditional switch smart to be controlled by mobile phone as well as keep the function of traditional physical switch.
3.LAN is available,but pls make sure the Curtain Module has been connected to the phone with wifi for the first time.
4.Remote Controller is available with RF chip inside the DIY Curtain Module, pls confirm it before order.
5.Wirelessly Voice Control your lights or devices via Alexa or Google Assitants.
6.Wi-Fi control via your mobile phone 2.4G Networks provides the needed connection to the DIY Switch Module without a Separate HUB.
7.Compatiable with the popular "smart life/Tuya smart" android/ios app. Versatile App with Multiple Program Options allow you to plan the exact time to turn Lights/TV/Bolier Etc. On/Off Automatically.
8.Case Color such as Orange/Blue/Purple can be customized, pls confirm it before order.
