1. Decoiler type: Manual decoiler
2. Weight capacity of decoiler: 5.0 T
3. Inner diameter of decoiler: 508+/-30mm
4. Max outer diameter of decoiler: 1000mm
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.4-0.6mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TACON
-
Dimension(L*W*H):
-
8.0mx1.0mx1.5m
-
Weight:
-
4500 kg
-
Feeding width:
-
280mm
-
Marketing Type:
-
Hot Product
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Glazed Steel
-
Production Capacity:
-
10-20 m/min
-
Rolling thinckness:
-
0.4-0.6mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TACON
-
Dimension(L*W*H):
-
8.0mx1.0mx1.5m
-
Weight:
-
4500 kg
-
Feeding width:
-
280mm
-
Marketing Type:
-
Hot Product
Product Overview
Machine Components

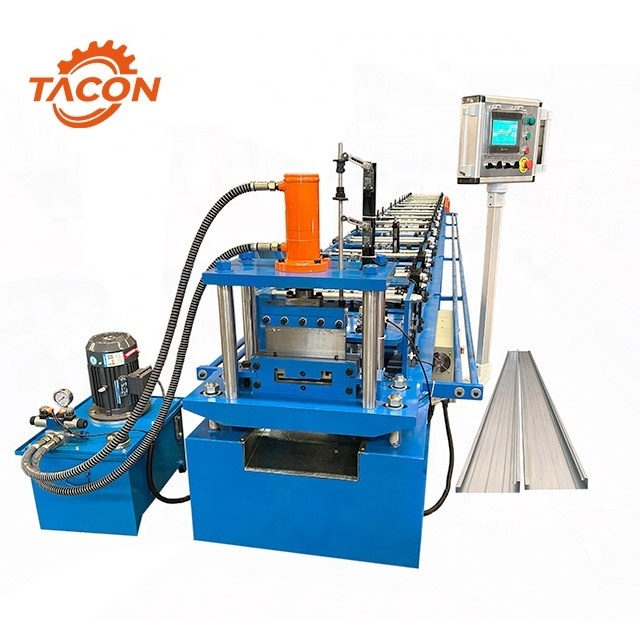

The whole line consists of manual decoiler, entry roller and guide roller, roll forming system, hydraulic cutting , PLC control
system, product support frame and so on.
system, product support frame and so on.
Our products can be customized according to your requirements.
FEATURES AT A GLANCE
Profile Drawing
1) material：color coated steel sheet, galvanized steel sheet 2) Thickness：0.4-0.6 mm
3) Yield strength: G550 Mpa 4) Feeding width:280 mm
3) Yield strength: G550 Mpa 4) Feeding width:280 mm
Flow Chart
Manual Decoiler→Entry Roller+ Guide roller→ Rolling Forming System→ Hydraulic Cutting→ Product Support Frame
Technology Parameters
Manual Decoiler
Entry Roller+ Guide Roller
Roll forming system
1. Roll forming speed: 10-20m/min
2. Shafts diameter: Φ70mm
3. Main motor: 5.5KW
4. Roller: 45#
5. Roller groups: 18 Stations
6. Machine will have protective cover
1. Roll forming speed: 10-20m/min
2. Shafts diameter: Φ70mm
3. Main motor: 5.5KW
4. Roller: 45#
5. Roller groups: 18 Stations
6. Machine will have protective cover
Hydraulic cutting
1. Hydraulic Motor power: 3.0KW
2. Cutting material: Cr12
2. Cutting material: Cr12
PLC control system
1. Control quantity and length automatically
2. Touch screen : WEINVIEW
3. PLC: Panasonic/Siemens
4. Relay: Schneider
5. Encoder : Omron
6. Frequency: TAIDA
7. Length tolerance : ±2mm
8. Voltage : 415v 50HZ 3phase
2. Touch screen : WEINVIEW
3. PLC: Panasonic/Siemens
4. Relay: Schneider
5. Encoder : Omron
6. Frequency: TAIDA
7. Length tolerance : ±2mm
8. Voltage : 415v 50HZ 3phase
Product support frame
3 pieces
