Quick Details
-
Compression Format:
-
H.265
-
Video Input:
-
2CH
-
Positioning:
-
Support GPS/Beidou
-
3G/4G:
-
Yes
-
Wifi:
-
Optional
-
RS232:
-
Support
-
Storage:
-
Max 2pcs 258GB TF Card
-
View Angle:
-
Front Cam 130°, 2.1mm lens, Rear Cam 120°, 2.5mm lens
-
Power input:
-
DC8-36V
-
Network:
-
CMS Platform Via 4G
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
A&S
-
Model Number:
-
AS-HM20
-
Compression Format:
-
H.265
-
Video Input:
-
2CH
-
Positioning:
-
Support GPS/Beidou
-
3G/4G:
-
Yes
-
Wifi:
-
Optional
-
RS232:
-
Support
-
Storage:
-
Max 2pcs 258GB TF Card
-
View Angle:
-
Front Cam 130°, 2.1mm lens, Rear Cam 120°, 2.5mm lens
-
Power input:
-
DC8-36V
-
Network:
-
CMS Platform Via 4G

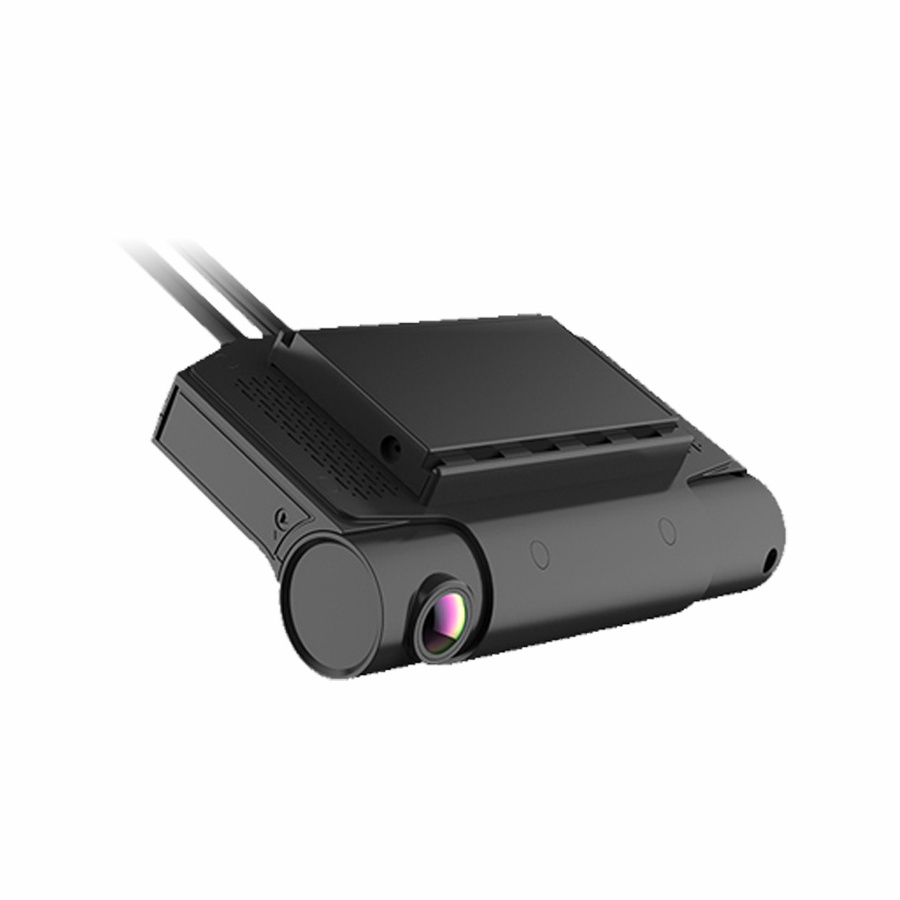

Product Show
Main Features
(1) H.265 compression format;
(2) Dual lens camera for front view and rearview, resolution up to HD 1080P; can expand up to support 4 cameras.
(3) DC8~36V power input;
(4) With audio input;
(5) Storage: support max 2pc 256GB TF card;
(6) With GPS/BD, 4G, Wifi functions, with free CMS, can realize remote monitoring;
(7) View angle: front cam: 130 degree, 2.1mm lens, 30fps, rearview cam: 120 degree, 2.5mm lens, 30fps.
(2) Dual lens camera for front view and rearview, resolution up to HD 1080P; can expand up to support 4 cameras.
(3) DC8~36V power input;
(4) With audio input;
(5) Storage: support max 2pc 256GB TF card;
(6) With GPS/BD, 4G, Wifi functions, with free CMS, can realize remote monitoring;
(7) View angle: front cam: 130 degree, 2.1mm lens, 30fps, rearview cam: 120 degree, 2.5mm lens, 30fps.
(8) ADAS, BSD, DSM functions are optional.
Specifications
|
OS
|
|
Linux3.18
|
|
|
Operating
|
|
Cell phone APP, WEB
|
|
|
CPU
|
|
HI3520D V400
|
|
|
Processor Core
|
|
ARM Cortex A7 dual core @max.1.3GHz
|
|
|
RAM
|
|
DDR3 512MB
|
|
|
Video & Preview
|
Video Input/ Output Signal Standard
|
AHD input: 2ch 1080p default, can expand 2 external cameras, max support 1080P.
Output: 1ch CVBS default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional |
|
|
|
Image Identification
|
Supports face recognition comparison function (Not supported by default)
|
|
|
|
OSD
|
Character superposition function, information superposition of time and date, device ID and GPS, alarm, etc.
|
|
|
|
Video Compression Format
|
Compression coding. Applying H264/H.265 hi-performance processor.
|
|
|
|
Dual stream
|
Support
|
|
|
|
Image Quality
|
Level 1 to 3 video can be configured, optimal level 1, minimum level 3
|
|
|
|
Preview Function
|
Support mobile APP video preview
|
|
|
|
Resolution
|
AHD: 1080P:60fps 720P: 120fps
|
|
|
Audio
|
Audio Input, Output
|
1 built-in MIC, 1 external analog audio input (intercom, recording)
1 built-in speaker (intercom, voice prompt) |
|
|
|
Compression
Format |
G.711A, G.726
|
|
|
Recording
Video Mode |
Storage Medium
|
Supporting two TF cards for storage, each one max support 256GB
|
|
|
|
Video Mode
|
Support dual TF card loop recording and delete in a loop (the earliest recording is deleted).
Support TF card 2 loop recording, mirror, missing video recording. |
|
|
|
Video Retrieval
|
Search based on recording time, recording type, recording storage device, etc.
|
|
|
|
File Format
|
H.265/FAT32
|
|
|
|
Video Strategies
|
Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
|
|
|
|
Video Playback
|
Support fast forward, fast rewind, play, pause control, support 2, 4, 8, 16 times speed fast forward or rewind, support timing
playback control |
|
|
Communication Port
|
|
1x RS232
|
|
|
Wireless Transmission
|
|
3/4G/5G wireless transmission module, EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ect.
Wi-Fi module, 802.11b/g/n,2.4G/5.8G optional. |
|
|
Position
|
|
GPS/BD: Positioning, speed detection, time synchronization
|
|
|
Power Supply and Power Consumption
|
Car key (ACC) Signal
|
≤6V,ACC OFF. ≥7.5V,ACC ON.
|
|
|
|
Input Voltage
|
DC:+8V ~ +36V. If the voltage is lower than 8V or higher than 36V for a long time, the device will automatically shut down and
enter the protection mode. |
|
|
|
Output Voltage
|
CAME_5V x 2.
|
|
|
|
Built-in UPS
|
2x7F*2.7V. Power on and charge, it takes 2 minutes to fully charge. External power failure, can keep the system working for 4S,
complete data saving shutdown. |
|
|
|
Power Consumption
|
Max 10W consumption
|
|
|
Operating Environment
|
Temperature
|
preheating: -20℃ ~ +70℃
|
|
|
|
Humidity
|
8% to 90%
|
|
|
Dimension
|
|
100 (L)x 120.8(W) x 30(H) mm.
|
|
|
Weight
|
|
Net: 0.6KG
|
|
