- Product Details
- {{item.text}}
Quick Details
-
Material:
-
PE bag+box
-
Product name:
-

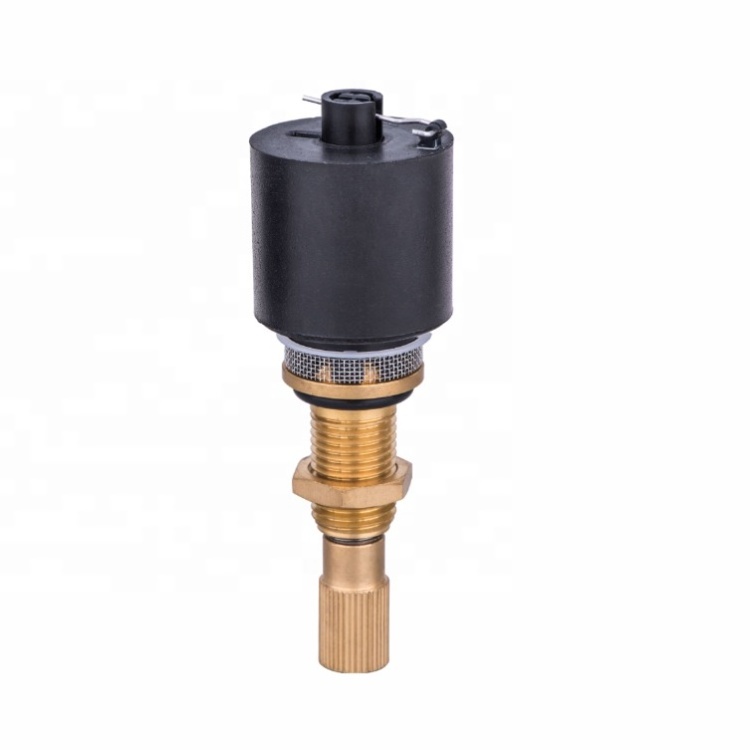

auto drain valve
-
Application:
-
Pneumatic Component
-
Working Medium:
-
compressed air
-
Model:
-
ADV-300-GNS13
-
Working Pressure:
-
0.2-0.8Mpa
-
Working Temperature:
-
5-60℃
-
Thread size:
-
G1/4
-
Port size:
-
G1/8
-
After Warranty Service:
-
Video technical support
-
Keyword:
-
For filter
Quick Details
-
Weight (KG):
-
0.2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CQPC
-
Material:
-
PE bag+box
-
Product name:
-
auto drain valve
-
Application:
-
Pneumatic Component
-
Working Medium:
-
compressed air
-
Model:
-
ADV-300-GNS13
-
Working Pressure:
-
0.2-0.8Mpa
-
Working Temperature:
-
5-60℃
-
Thread size:
-
G1/4
-
Port size:
-
G1/8
-
After Warranty Service:
-
Video technical support
-
Keyword:
-
For filter
Ordering Code
|
ADV
|
Products name (Auto Drain Valve)
|
|
|
|
|||
|
300
|
Machine type (300 series)
|
|
|
|
|||
|
GN
|
Drain principle(G:lever type ; N:inner thread )
|
|
|
|
|||
|
13
|
the figure is stand for the water drainge outlet`s dinmeter
|
|
|
|
|||
Product Parameters
Range of Application
This product is installed at the bottom of water cups to discharge the condense water gathered in the water cup of air filters&air
filter regulators.
filter regulators.
This model is applicable for filter Italy AIGNEP
Technical Requirements
Working medium
：compress air / Ambient and media temperature：5-60℃ / Operating Pressure：0.2-0.8MPa
Features
Auto drain / Air Shut off/Manual Drain
Points for Attention
When using, the drainer should be installed vertically and the drain port facing down.
Features
Auto drain / Air Shut off/Manual Drain
Points for Attention
When using, the drainer should be installed vertically and the drain port facing down.
Dimensional drawing of water cup connecting part
please measure the hole of your water cup the choose the best for you.
