Quick Details
-
Dimension(L*W*H):
-
5320x3950x1700mm
-
Application:
-
Woodworking Furniture Factory
-
Weight (KG):
-
2760 KG
-
Power (kW):
-
12.5
-
Max.Cutting Height at 90°(mm):
-
76mm
-
Max.Cutting Height at 45°(mm):
-
76mm
-
Max. Length of Workpiece (mm):
-
2680mm
-
Product name:
-

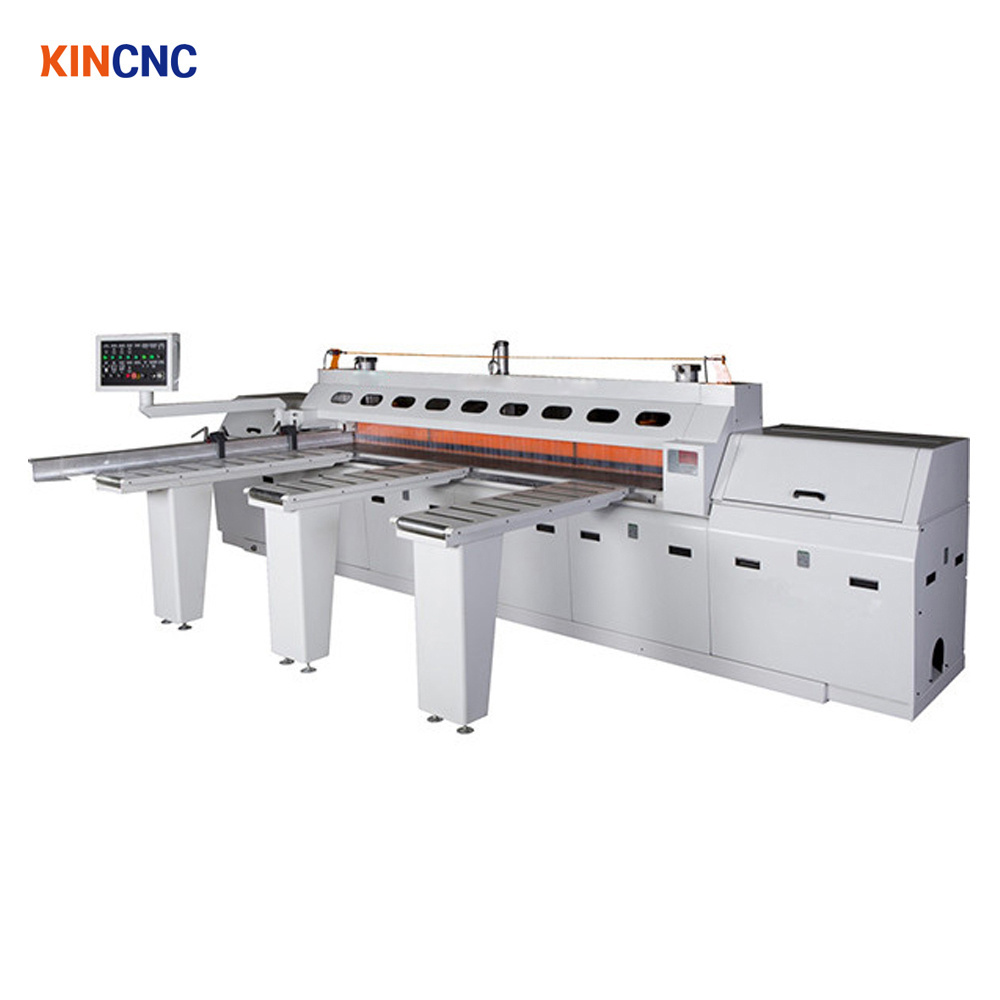

Reciprocating Beam Saw
-
Woodworking Furniture Factory:
-
4800rpm
-
Scoring saw rotating speed:
-
6500rpm
-
Saw carriage forward speed adjustable:
-
0-37m/min
-
Saw carriage backward speed:
-
67m/min
-
Main saw motor:
-
11kw
-
Saw carriage driving motor:
-
1.5kw
-
Total power:
-
12.5kw
-
Air pressure:
-
5-7kg/cm²
-
Working table height from ground level:
-
900mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KINCNC Woodworking Machine
-
Voltage:
-
220v/380v/custom
-
Dimension(L*W*H):
-
5320x3950x1700mm
-
Application:
-
Woodworking Furniture Factory
-
Weight (KG):
-
2760 KG
-
Power (kW):
-
12.5
-
Max.Cutting Height at 90°(mm):
-
76mm
-
Max.Cutting Height at 45°(mm):
-
76mm
-
Max. Length of Workpiece (mm):
-
2680mm
-
Product name:
-
Reciprocating Beam Saw
-
Woodworking Furniture Factory:
-
4800rpm
-
Scoring saw rotating speed:
-
6500rpm
-
Saw carriage forward speed adjustable:
-
0-37m/min
-
Saw carriage backward speed:
-
67m/min
-
Main saw motor:
-
11kw
-
Saw carriage driving motor:
-
1.5kw
-
Total power:
-
12.5kw
-
Air pressure:
-
5-7kg/cm²
-
Working table height from ground level:
-
900mm
Products Description
|
Max cutting length
|
2680mm
|
|
Max.cutting thickness
|
76mm
|
|
Main saw blade diameter
|
Φ350mm
|
|
Main saw blade inner diameter
|
Φ30mm
|
|
Main saw rotating speed
|
4800rpm
|
|
Scoring saw blade diameter
|
Φ180mm
|
|
Scoring saw blade inner diameter
|
Φ30mm
|
|
Scoring saw rotating speed
|
6500rpm
|
|
Saw carriage forward speed adjustable
|
0-37m/min
|
|
Saw carriage backward speed
|
67m/min
|
|
Main saw motor
|
11kw
|
|
Saw carriage driving motor
|
1.5kw
|
|
Total power
|
12.5kw
|
|
Air pressure
|
5-7kg/cm²
|
|
Working table height from ground level
|
900mm
|
|
Net weight
|
2760kg
|
|
Gross weight
|
2900kg
|
|
Overall dimension
|
5320x3950x1700mm
|
Feature:
1.The main body by the high quality steel plate and profiles welded together.
2.Rail with high precision linear guide.
3.The machine electrical components mainly choose the foreign advanced products, security, stability.
4.Key type dust cover, less environment pollution.
5.Cutting speed with frequency control of motor speed, can be used different material cutting requirements.
6.Activity type tailgate, make the timber in and out of the unimpeded.
7.Humanized interface design, the operation is convenient, and reliable.
8.Automatic induction, sawing plate width automatically return the sawing, convenient, fast.
Optional parts:
Ball bearing air float working table for easy .
A model is without ball bearing air float working table
B model is with ball bearing air float working table
