Quick Details
-
Product name:
-
HD H.264 Encoder
-
Input:
-
8/12/16/24 full HD inputs, 1 ASI input
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Audio encoding:
-
MPEG-1 leyer 2
-
Output:
-
ASI (optional) , IP UDP mpts and spts out
-
Protocol:
-
UDP
-
Application:
-
Digital TV IPTV Head-end System
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Colable
-
Model Number:
-
COL5181H
-
Product name:
-
HD H.264 Encoder
-
Input:
-
8/12/16/24 full HD inputs, 1 ASI input
-
Video encoding:
-
MPEG-4 AVC/H.264
-
Audio encoding:
-
MPEG-1 leyer 2
-
Output:
-
ASI (optional) , IP UDP mpts and spts out
-
Protocol:
-
UDP
-
Application:
-
Digital TV IPTV Head-end System
Digital Video broadcasting 8 ch 16 channel 24 channel HD H.264 IPTV Encoder
Outline
COL5181H H.264 HD IP Encoder is a professional HD audio & video encoding and multiplexing device. It has 8 full ( 12 /16/20/24 full optional) video input interfaces, supporting MPEG-4 video encoding and MPEG
1 Layer 2 audio encoding. This device can simultaneously encode 8 ( 12/ 16/20/24 full optional) channel HD audio & video; moreover, it has an IP output port can support 1MPTS and 8 SPTS ( 12 /16/20/24 SPTS) IP out. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.
Features
ü 8 /12/1620//24 × full HD video inputs with 8 /12/16 / 20//24 SPTS and 1 MPTS output through Data 1 or Data 2
ü Support MPEG4 AVC/H.264 video encoding format
ü MPEG1 Layer II audio encoding format, support audio gain adjustment
ü Support 1 ASI output (optional) as copy of MPTS
ü Support IP output over UDP and RTP
ü Support QR code, LOGO, OSD insertion
ü Support “Null PKT Filter” function
ü Support PID Remapping
ü Support PCR accurate adjusting
ü Support PSI/SI editing and inserting
ü Control via web management, and easy updates via web
ü Lowest cost per channel, breakthrough price
Technical specification
|
Input |
8 full hd inputs ( 12/ 16/20/24 input optional) |
|||
|
Video |
Resolution |
input |
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
|
|
output |
1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, |
|||
|
Encoding |
MPEG-4 AVC/H.264 |
|||
|
Bit-rate |
1Mbps~13Mbps each channel |
|||
|
Rate Control |
CBR/VBR |
|||
|
GOP Structure |
IP…P (P Frame adjustment, without B Frame ) |
|||
|
Audio |
Encoding |
MPEG-1 Layer 2 |
||
|
Sampling rate |
48KHz |
|||
|
Resolution |
24-bit |
|||
|
Bit-rate |
64kbps,128Kbps,192kbps,224kbps,256kbps, 320kbps,384kbps |
|||
|
Multiplexing |
Maximum PID Remapping |
180 input per channel |
||
|
Function |
PID remapping ( automatically or manually) |
|||
|
Accurate PCR adjusting |
||||
|
Generate PSI/ SI table automatically |
||||
|
Stream output |
8 SPTS ( 12 /16/20/24 SPTS) IP or 1MPTS output over UDP/RTP, 1*1000 Base-T Ethernet interface ASI output(optional) as copy of MPTS |
|||
|
System function |
Network management(WEB) |
|||
|
Chinese and English language |
||||
|
Ethernet software upgrade |
||||
|
Miscellaneous |
Dimension(W×L×H) |
482mm×410mm×44mm |
||
|
Approx weight |
8kg |
|||
|
Environment |
0~45℃(work); -20~80℃ ( Storage ) |
|||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|||
|
Power consumption |
70W |
|||
Working Principle:
Packing for HD H.264 IPTV Encoder
If bulk order, we suggest you by air transport or by sea.

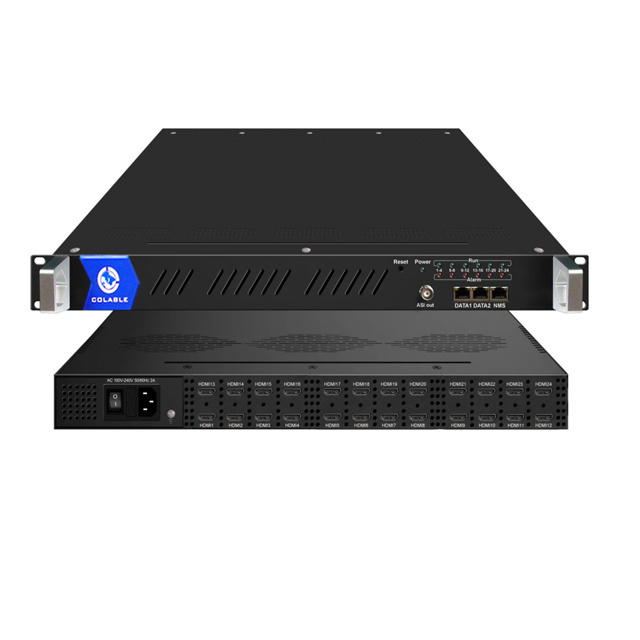

Product Picture
Digital cable tv and iptv system:
Company Qualification
Colable Electronics Co.,Ltd
We specialize in Digital TV broadcasting equipment for more than 15 years, and experienced in Digital
Cable /Satellite/ Terrestrial tv broadcasting solution and IPTV system, If you have any questions and ideas,
please don't hesitate to contact us!
-
Our experience: Continuous experienced and reliable R&D team , Engaged in DVB Head-end
system solution more than 15 years.
-
Our product : FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer
,Scrambler, Modulator, Encoder Modulator ,Tuner to ip gateway ,Tuner to RF modulator, Transmitter,Antenna,Set top box .
-
Our service: Life-long Technical support.
-
Warranty: 1 years ,free repair for headend in 3 years.
-
Lead time: 2-5 working days after payment confirmed
For more information and real price, please contact us freely, welcome to send us enquiry ^_^
