Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
XD
-
Min Height:
-
25mm
-
Product name:
-
Hydraulic Toe Jack
-
toe capacity:
-
5T
-
Min toe height:
-
25mm
-
max toe height:
-
230mm
-
min head height:
-
368mm
-
max head height:
-
573mm
-
base size:
-
203*140mm
-
weight:
-
21kg
-
package size:
-
360*180*390mm
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1year
-
Type:
-
Hydraulic Jack
-
Max Height:
-
230mm
-
Place of Origin:
-
China
-
Model Number:
-
XD
-
Min Height:
-
25mm
-
Product name:
-
Hydraulic Toe Jack
-
toe capacity:
-
5T
-
Min toe height:
-
25mm
-
max toe height:
-
230mm
-
min head height:
-
368mm
-
max head height:
-
573mm
-
base size:
-
203*140mm
-
weight:
-
21kg
-
package size:
-
360*180*390mm
-
Certification:
-
CE
Product Description
hydraulic toe jack swivel type rotating hydraulic toe jack lift jack
A toe jack is a heavy duty piece of equipment that is designed to lift items with very low or high clearances.Toe jacks are ideal for moving loads that are lower down on the floor,such as heavy machinery.They are available in variety of different weight capacities too,making then suitable for a wide range of operation.

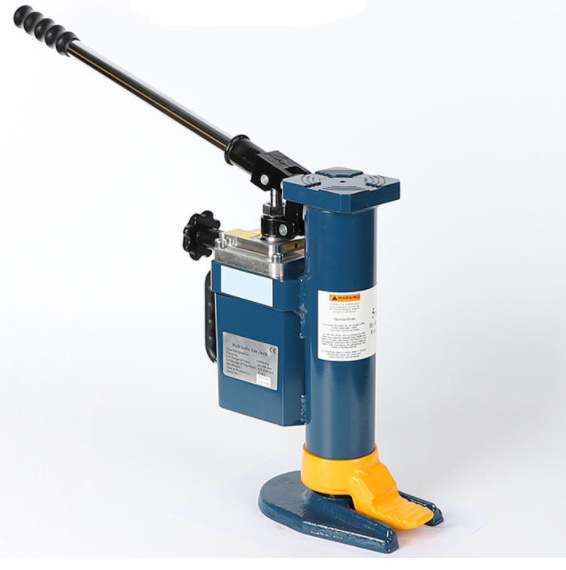

This is our swivel type hydraulic toe jack.
Specification
|
Model
|
XD-05
|
XD-10
|
XD-25
|
|
toe capacity
|
5T
|
10T
|
25T
|
|
min toe height
|
25mm
|
30mm
|
58mm
|
|
max toe height
|
230mm
|
260mm
|
273mm
|
|
min head height
|
368mm
|
420mm
|
505mm
|
|
max head height
|
573mm
|
650mm
|
720mm
|
|
base size
|
203*140mm
|
190*170mm
|
377*210mm
|
|
weight
|
21kg
|
32kg
|
105kg
|
|
package size
|
360*180*390mm
|
380*210*430mm
|
530*350*610mm
|
pictures of hydraulic toe jack
