Quick Details
-
Model Number:
-
WL series
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-10°C to +80°C
-
Max. Current:
-
5A
-
Certificate:
-
CCC
-
Contact form:
-
1NC1NO
-
Color:
-
Grey
-
Material:
-
Strong Aluminum Cast Outer Shell
-
Feature:
-
Double
-
Application:
-
Industrial
-
Electric life:
-
500,000 times above
-
Mechanical life:
-
20,000,000 operations
-
Contact resistance:
-
15m Max. (inital)
-
Actuator:
-
depend on type
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sunlight/OEM
-
Model Number:
-
WL series
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-10°C to +80°C
-
Max. Current:
-
5A
-
Certificate:
-
CCC
-
Contact form:
-
1NC1NO
-
Color:
-
Grey
-
Material:
-
Strong Aluminum Cast Outer Shell
-
Feature:
-
Double
-
Application:
-
Industrial
-
Electric life:
-
500,000 times above
-
Mechanical life:
-
20,000,000 operations
-
Contact resistance:
-
15m Max. (inital)
-
Actuator:
-
depend on type
IP67 1NC1NO WL series two-circuit door limit switches price
1. IP67 1NC1NO WL series two-circuit door limit switches price features and application:
Features:
Double-circuit limit switch,is widely used;
Firm alumium alloy enclosure;
High mechanical strength;
Structure preventing oil,water and pressure;
Indicating plating with setting position is installed in it,so it is easy to maintain;
Kinds of actuators is taken convenience for using;
Built-in contact stand has double-reed,so it has long mechanical life;
Application:
Widely used in mechanical equipment,automatic machine,and instrument,electro motion tool etc.
2. IP67 1NC1NO WL series two-circuit door limit switches price characteristics:
Characteristic:
|
Operation speed |
1mm-2m/s |
|
Operating frequency |
Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
|
Contact resistance |
15mΩ max. (initial value) |
|
Insulation resistance |
100mΩ min. (at 500VDC) |
|
Dielectric strength |
1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
|
|
2200VAC, 50/60 HZ for 1 minute between current carrying
|
|
|
2200VAC, 50/60 HZ for 1 minute between each terminal and ground |
|
Vibration |
10-55HZ,1.5mm double amplitude |
|
Shock |
Mechanical durable: 1, 000m/Sec2 (about 100GS)
|
|
Ambient temperature |
-10°C to +80°C |
|
Life |
Mechanical: 15,000,000 operations above
|
|
Weight |
About 275g |
|
Degree of protection |
IP67 |
Operating characteristics:
|
Models |
WLCA2-2 |
WLD2
|
WLNJ |
WLNJ-S2 |
WLCA12-2 |
WLCL |
WL32-41 |
WLD | WLNJ-2 | WLNJ-30 | WLD1 | WLD3 |
|
OF Max. |
1360g |
2720g
|
150g |
29g |
1360g
|
142g |
1200g | 2720g | 120g | 80g | 2720g | 2720g |
|
RF Min. |
227g |
910g
|
- |
- |
227g
|
28g |
-
|
910g | - | - | 910g | 910g |
|
PT Max. |
20º |
1.7mm
|
28mm |
28mm |
20º |
20º
|
55º
|
1.7mm | 28mm | 28mm | 1.7mm | 1.7mm |
|
OT Min. |
30 º |
5.6mm
|
- |
- |
30º
|
30º |
35º |
6.4mm | - | - | 5.6mm | 5.6mm |
|
MD Max. |
12 º |
1
mm
|
- |
-
|
12º
|
12º |
- |
1mm | - | - | 1mm | 1mm |
|
TF Max. |
2720g |
-
|
- |
-
|
2720g
|
200g |
-
|
- | - | - | 2720g | 2720g |
|
TT Min. |
50 º |
6.5± 0.8mm |
- |
- |
50º
|
50º |
OP:90 ± 10º | OP:34 ±2.8mm | - | - | 6.5±0.8mm | 9±0.8mm |

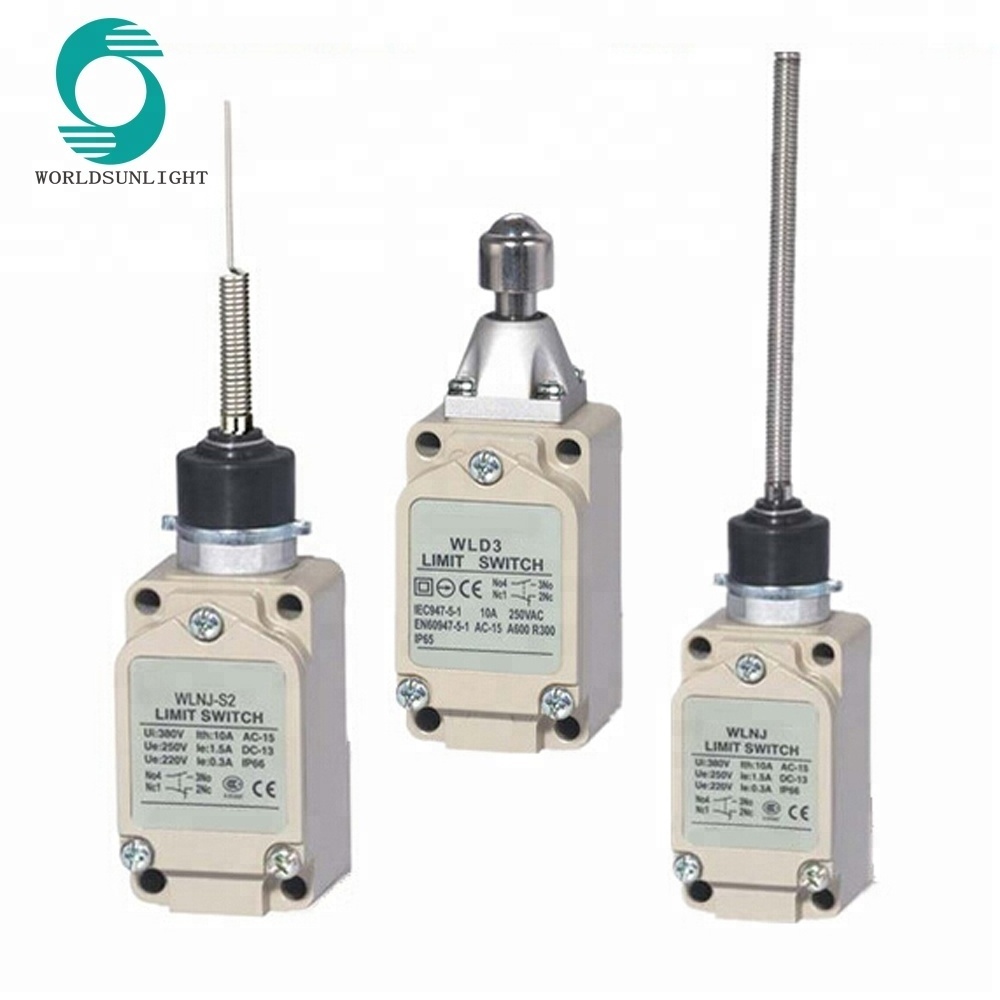

3. IP67 1NC1NO WL series two-circuit door limit switches price pictures :
|
|
|
|
