Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE/TUV
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SUNEVO
-
Model Number:
-
SE-ON
-
Output Voltage (V):
-
100-240V/380-415V
-
Output Frequency:
-
50/60Hz
-
Work Time (h):
-
24H
-

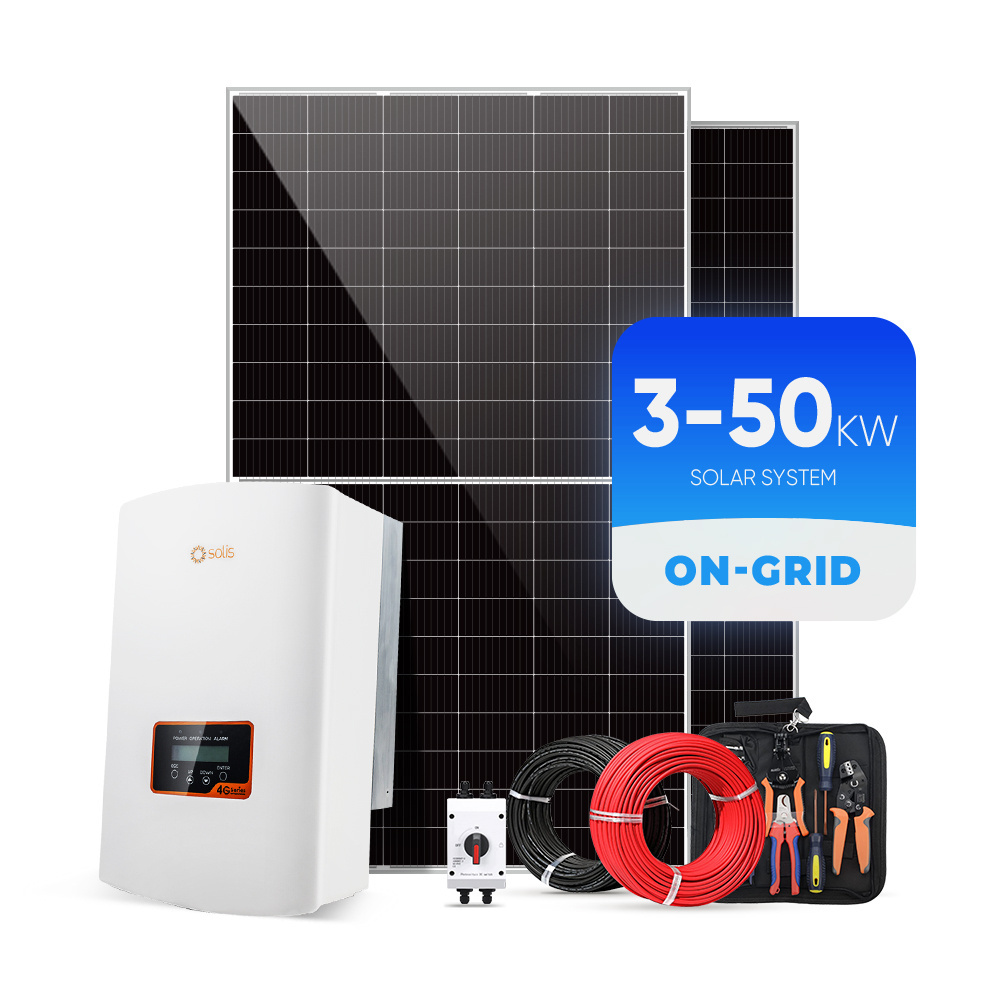

Product name:
-
Household On-Grid Solar Power System
-
Solar Panel:
-
Monocrystalline 400-700W
-
Solar Inverter:
-
On Grid 3-30KW
-
Monitoring System:
-
App Available for PC and Phone
-
PV Mounting System:
-
Customized
-
Other Accessories:
-
Cable, Switch, Assembly Tool, etc
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE/TUV
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SUNEVO
-
Model Number:
-
SE-ON
-
Output Voltage (V):
-
100-240V/380-415V
-
Output Frequency:
-
50/60Hz
-
Work Time (h):
-
24H
-
Product name:
-
Household On-Grid Solar Power System
-
Solar Panel:
-
Monocrystalline 400-700W
-
Solar Inverter:
-
On Grid 3-30KW
-
Monitoring System:
-
App Available for PC and Phone
-
PV Mounting System:
-
Customized
-
Other Accessories:
-
Cable, Switch, Assembly Tool, etc
Products Description
Warranty
How it works
What's Included
|
Model
|
SE-3KW-ON
|
SE-5KW-ON
|
SE-10KW-ON
|
||
|
Half Cut Mono 550W Solar Panel
|
6 Pieces
|
10 Pieces
|
21 Pieces
|
||
|
DC Disconnect Switch
|
1 Piece
|
2 Pieces
|
3 Pieces
|
||
|
On Grid Solar Inverter
|
S6-GR1P3K
|
S6-GR1P5K
|
Solis-1P10K-4G
|
||
|
DC Cable 4mm2
|
100 meter
|
200 meter
|
400 meter
|
||
|
AC Disconnect Switch
|
1 Piece
|
1 Piece
|
1 Piece
|
||
|
MC4 Connector
|
10 Pairs
|
10 Pairs
|
10 Pairs
|
||
|
Mounting System
|
Customized Product Based On Installation Roof/Ground
|
|
|
||
|
PV Installation Tools
|
1 Set
|
|
|
||
|
Model
|
SE-20KW-ON
|
SE-30KW-ON
|
SE-50KW-ON
|
||
|
Half Cut Mono 550W Solar Panel
|
40 Pieces
|
60 Pieces
|
105 Pieces
|
||
|
DC Disconnect Switch
|
4 Pieces
|
8 Pieces
|
15 Pieces
|
||
|
On Grid Solar Inverter
|
Solis-3P20K-4G
|
Solis-3P15K-4G
2 Pieces
|
Solis-1P10K-4G
5 Pieces
|
||
|
DC Cable 4mm2
|
600 meter
|
800 meter
|
1000 meter
|
||
|
AC Disconnect Switch
|
1 Piece
|
2 Piece
|
5 Piece
|
||
|
MC4 Connector
|
20 Pairs
|
30 Pairs
|
50 Pairs
|
||
|
Mounting System
|
Customized Product Based On Installation Roof/Ground
|
|
|
||
|
PV Installation Tools
|
1 Set
|
|
|
||
Max. efficiency 98.7%.
Wide voltage range and low startup voltage.
THDi<1.5%, low harmonic distortion against grid.
Multiple protections levels.
2 MPPT design with precise MPPT algorithm.
Intergrated Export Power Manager (EPM).
Smart I-V curve scan, system health report, string-level fault finding.
Manage multiple types of systems across residential, commercial and utility scale plants.Enables multiple team management
across different sectors.
across different sectors.
Connecting with multiple types of devices seamlessly, Inverters, export power managers, weather stations etc.
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
