Quick Details
-
Suitable for:
-
Fire Exit Door/Exit Escape Door/Steel Door
-
Material:
-
Painted Iron (Stainless Steel 304 is Optional)
-
Lock Size:
-
650mm/ 800mm /1000mm, or customized
-
Handle:
-
Base Diameter 72mm
-
Color:
-
Sliver by painted, or customized
-
Fire resistance time:
-
90 minutes
-
Certification:
-
UL305
-
OEM:
-
Availiable
-
Application:
-
Hotel,Apartment,Market,School,Office building
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EBM/OEM
-
Name:
-
Panic bar, fire door panic exit device, push bar panic exit device
-
Suitable for:
-
Fire Exit Door/Exit Escape Door/Steel Door
-
Material:
-
Painted Iron (Stainless Steel 304 is Optional)
-
Lock Size:
-
650mm/ 800mm /1000mm, or customized
-
Handle:
-
Base Diameter 72mm
-
Color:
-
Sliver by painted, or customized
-
Fire resistance time:
-
90 minutes
-
Certification:
-
UL305
-
OEM:
-
Availiable
-
Application:
-
Hotel,Apartment,Market,School,Office building
High Quality Emergency Anti Panic Exit Bar Device Escape Fire Door Lock Push Panic Bar Lock with Handle Lever Trim Lock
Specification
|
Name
|
Panic bar, fire door panic exit device, push bar panic exit device
|
|
Model No.
|
EB-DK650T
|
|
Material
|
Painted Iron (Stainless Steel 304 is Optional)
|
|
Shape
|
T-Shaped
|
|
Product Size
|
650mm/ 800mm /1000mm, or customized
|
|
Fits Doors
|
71-105cm / 28-41"
|
|
Color
|
Sliver by painted, or customized
|
|
Finish
|
Polished
|
|
Fire resistance time
|
90 minutes
|
|
Open Force
|
≤70N
|
|
Application
|
Hotel, Hospital, Office, Market, School, Shopping mall...
|
|
OEM&ODM
|
Available
|
Products Description

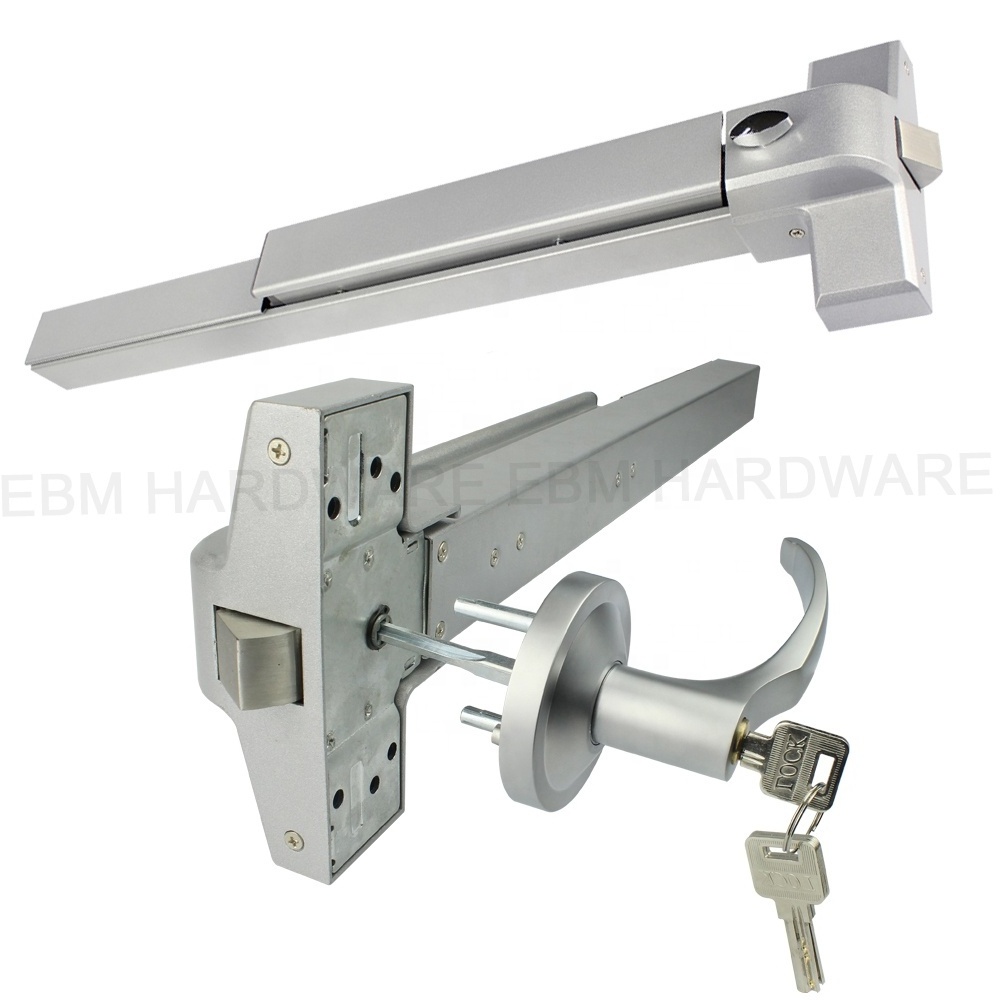

Push Bar Panic Exit Device for single leaf door
Features:
1. Close by one point
2. Exposure type
3. Half length push bar
4. Different length according to the thickness of door
5. Different colors can be choose
6. BODY: Painted steel chassis-Half Arm.
7. INSTALLATION: Horizontal installation for single doors.
8. USAGE: Suitable for both left and right-handed doors.
9. LOCKING SYSTEM: Key cylinder with 3 keys for external opening. Touch bar mechanism from inside opening with safety function.
10. CONSTANT FLOW(Optional): Dogging mechanism operated by knob.
11.Lever handle (Optional): From outside by handle with rosette with 3 keys.
Features:
1. Close by one point
2. Exposure type
3. Half length push bar
4. Different length according to the thickness of door
5. Different colors can be choose
6. BODY: Painted steel chassis-Half Arm.
7. INSTALLATION: Horizontal installation for single doors.
8. USAGE: Suitable for both left and right-handed doors.
9. LOCKING SYSTEM: Key cylinder with 3 keys for external opening. Touch bar mechanism from inside opening with safety function.
10. CONSTANT FLOW(Optional): Dogging mechanism operated by knob.
11.Lever handle (Optional): From outside by handle with rosette with 3 keys.
