Quick Details
-
Name:
-
bone crusher
-
Product name:
-
animal bone breaking machine
-
Application:
-
meat and bone processing
-
Voltage:
-
220v or 380v or custom-made
-
final fineness:
-
5-8mm depends on mesh
-
function:
-
machine use to crushing bone
-
After-sales Service Provided:
-
Field maintenance and repair service
Quick Details
-
Weight (KG):
-
160
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MONA
-
Name:
-
bone crusher
-
Product name:
-
animal bone breaking machine
-
Application:
-
meat and bone processing
-
Voltage:
-
220v or 380v or custom-made
-
final fineness:
-
5-8mm depends on mesh
-
function:
-
machine use to crushing bone
-
After-sales Service Provided:
-
Field maintenance and repair service
Bone Crushing Machine Cow Pig Paste Mill Grinder Cattle Shredder Automatic Bone Meal Pork Chicken Milling Cutting Machine
Features of bone crusher
1. Partical size is adjustable
2. Both stainless steel and carbon steel are available
3. Suitable for crushing many kinds of bones
4. Compact structure and stable operation
Introduction of bone crusher
The bone crusher is a high efficiency grinding equipment with newest technology. The principle of the bone crushing machine’ s operation and work is vertical type. So, it has many advantages of running fast, not hot, convenient operation and washing.
The machine improves the shear force and impact resistance of the single blade. Besides, the front blade increases the blade cutting angle and improves the cutting efficiency.
The blade installation of the bone crushing machine can be adjusted. The blade also can be sharpened while it is blunt.
This machine can be used together with the conveyor belt, the automation in andout of the material, and reduce the dynamic strength. This machine has simple operation, convenient maintenance cleaning, compact structure, stable work, production,
low temperature, don't hide materials, particle size adjustable etc.
Crushing range: 5-800mm
Application of bone crusher
This machine is applicable for all kind of bones like chicken bone, pig bone, cow bone, fish bone
Main parameter of bone crusher
|
Type |
Capacity(kg/h) |
Input Size(mm) |
Power(kw) |
Size(mm) |
Weight(kg) |
|
MN-150 |
20-60 |
150 * 200 |
2.2 |
1000* 720 * 900 |
160 |
|
MN -230 |
30-100 |
250*210 |
4 |
1000 * 700 * 1060 |
230 |
|
MN-300 |
80-200 |
300 * 210 |
5.5 |
1200 * 820* 1160 |
290 |
|
MN-400 |
150-400 |
380 * 250 |
7.5 |
1080* 820 * 1330 |
520 |
|
MN-500 |
200-600 |
500 * 250 |
11-15 |
1700 * 1350 * 1760 |
750-1000 |
|
MN-600 |
300-900 |
600 * 320 |
15-22 |
1700 * 1480*1760 |
1250 |
|
MN-700 |
500-1500 |
700 * 480 |
22-37 |
2000 * 160 0* 2000 |
1600 |
|
MN-800 |
800-2200 |
800 * 650 |
37-45 |
1600 * 2100 * 2620 |
2500 |
|
MN-1000 |
1000-4000 |
1000 *800 |
45-55 |
1800*2100*3115 |
4000 |

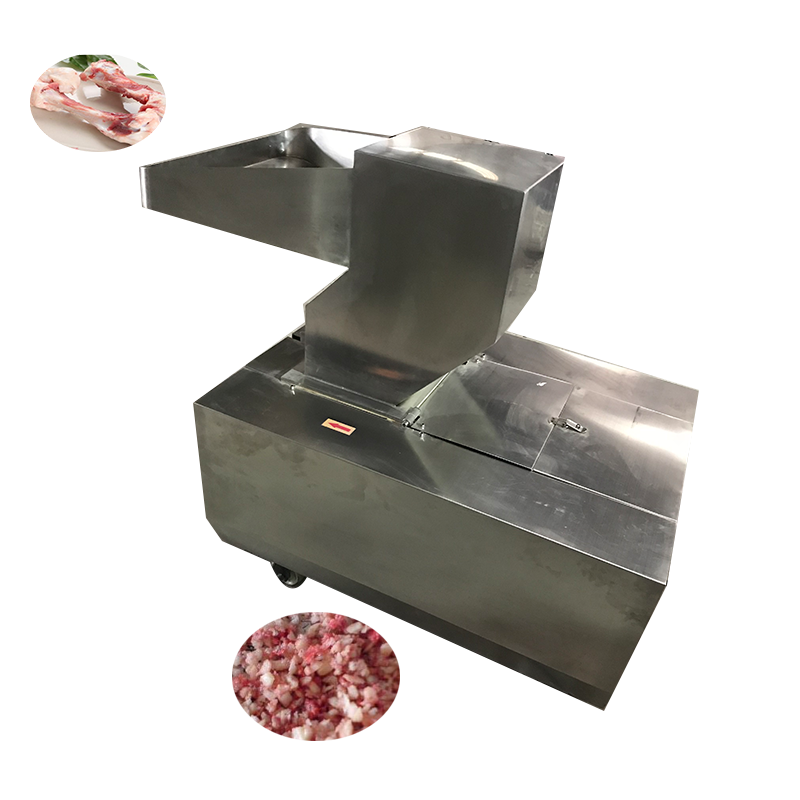

Picture of bone crusher
