Quick Details
-
Brand Name:
-
Zhiqiong
-
Model Number:
-
ZHQ-ZXS10
-
Product name:
-
Resistance rotary level switch
-
Power supply:
-
AC220V/DC24V
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
China
-
Brand Name:
-
Zhiqiong
-
Model Number:
-
ZHQ-ZXS10
-
Product name:
-
Resistance rotary level switch
-
Power supply:
-
AC220V/DC24V
Product Description

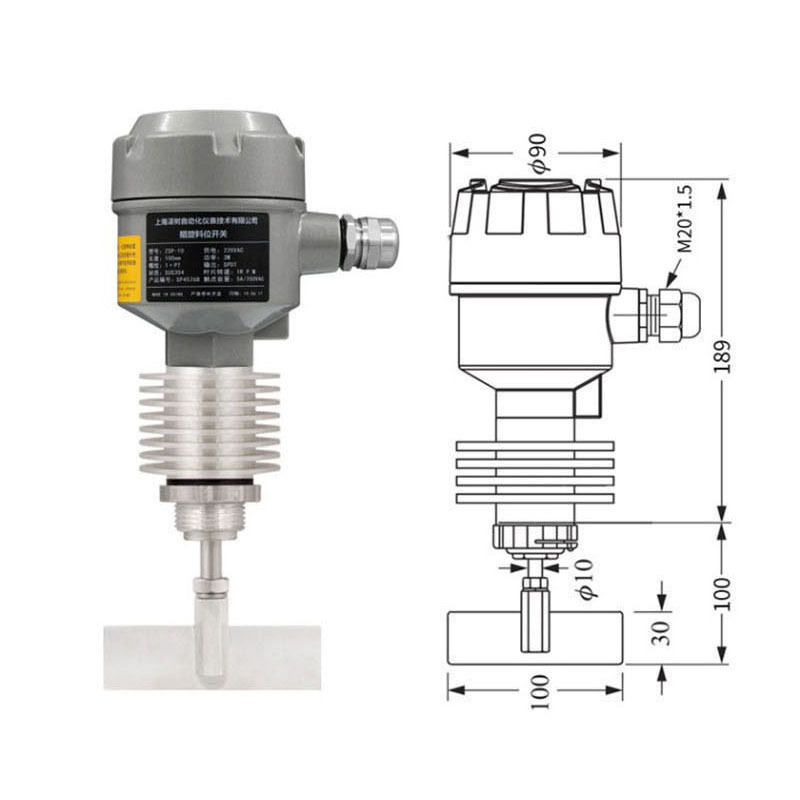

| Product Name | Rotary level switch controller | ||
| Connection method | Thread, flange, support customized specifications | ||
| Power supply | AC220V, DC24V | Moment | 1.0kg*cm |
| Withstand voltage | AC1500V/Min | Protection level | IP65 |
| Contact capacity | SPDT AC 5A/250V DC 3A/24V | Operating power | 4W |
| Blade speed | 1 r/min | Applicable proportion | 0.5G/CM |
| Measuring torque | 1N.M | Blade material | SUS304 |
| Operating temperature | -20~100℃ | Insulation Resistance | ≥100MΩ |
