Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WORKMATES
-
Model Number:
-
XY Series
-
Min Height:
-
18MM
-
Product name:
-
Hydraulic Toe Jack
-
Application:
-
Maintenance Working
-
Material:
-
Alloy Steel
-
Certification:
-
CE
-
Keywords:
-
Hydualic Jack
-
Use Area:
-
Machinery Lifting
-
Power:
-
Hydrualic Oil
-
Operation:
-
Handle Hydraulic Jack
-
Feature:
-
Easy Operation Safety Convenience
-
Lifting Capacity:
-
2-50T
Quick Details
-
Warranty:
-
1 years
-
Type:
-
Hydraulic Jack
-
Max Height:
-
195MM
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WORKMATES
-
Model Number:
-
XY Series
-
Min Height:
-
18MM
-
Product name:
-
Hydraulic Toe Jack
-
Application:
-
Maintenance Working
-
Material:
-
Alloy Steel
-
Certification:
-
CE
-
Keywords:
-
Hydualic Jack
-
Use Area:
-
Machinery Lifting
-
Power:
-
Hydrualic Oil
-
Operation:
-
Handle Hydraulic Jack
-
Feature:
-
Easy Operation Safety Convenience
-
Lifting Capacity:
-
2-50T
Product Description
Product Features:

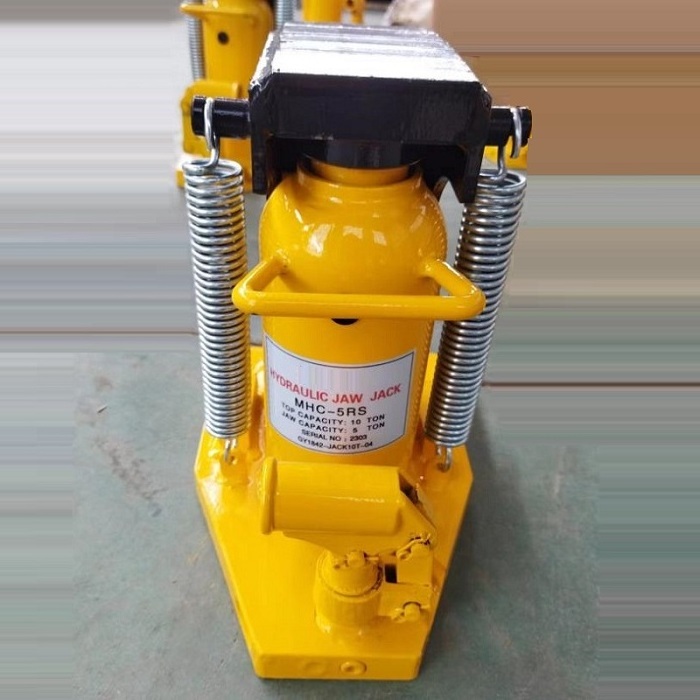

Claw jacks are generally used when other jacks cannot meet the height of the lifting weight. The rocker can rotate 270 degrees and automatically return the oil when it reaches the ultimate height. The top load weight of the claw jack is 2 times that of the claw part. If the height permits, the upper position should be used as far as possible.
2. With automatic oil return function.
3. The top of the jack and the Claw part are formed together, strong and durable.
4. The claw is equipped with a reyurn spring that can be automatically and quickly retraction.
5. The main shaft is forged with alloy steel and treated with hard chrome, which is durable and does not rust.
6. Handle with 360 degree rotation function.
|
Product Model
|
XY10200
|
XY10500
|
XY101000
|
XY103000
|
XY105000
|
|
Load Weight(The Claw)(t)
|
2t
|
5t
|
10t
|
15t
|
25t
|
|
Load Weight(The Top)(t)
|
4t
|
10t
|
20t
|
30t
|
50t
|
|
Minimum Height(mm)
|
18mm
|
27mm
|
33mm
|
36mm
|
40mm
|
|
Maximum Height(mm)
|
130mm
|
145mm
|
175mm
|
183mm
|
195mm
|
|
Claw Length(mm)
|
50*50
|
57*76
|
60*80
|
149*60
|
190*75
|
|
Net Weight(kg)
|
8.2kg
|
24kg
|
38kg
|
44kg
|
88kg
|
Details Images
