Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PULITA
-
Model Number:
-
HTG
-
Speed:
-
NONE
-
Weight:
-
NONE
-
start method:
-
electric start
-
cooling method:
-
water cooled
-
gas mixer formation:
-
Pre-Mix
-
module:
-
GU641B
-
regulator:
-
AVR
-
noise level:
-
90dBA
-
Insulation class:
-
H
-
Certification:
-
CE, CE,ISO
Quick Details
-
Rated Voltage:
-
400
-
Rated Current:
-
NONE
-
Frequency:
-
NONE
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PULITA
-
Model Number:
-
HTG
-
Speed:
-
NONE
-
Weight:
-
NONE
-
start method:
-
electric start
-
cooling method:
-
water cooled
-
gas mixer formation:
-
Pre-Mix
-
module:
-
GU641B
-
regulator:
-
AVR
-
noise level:
-
90dBA
-
Insulation class:
-
H
-
Certification:
-
CE, CE,ISO

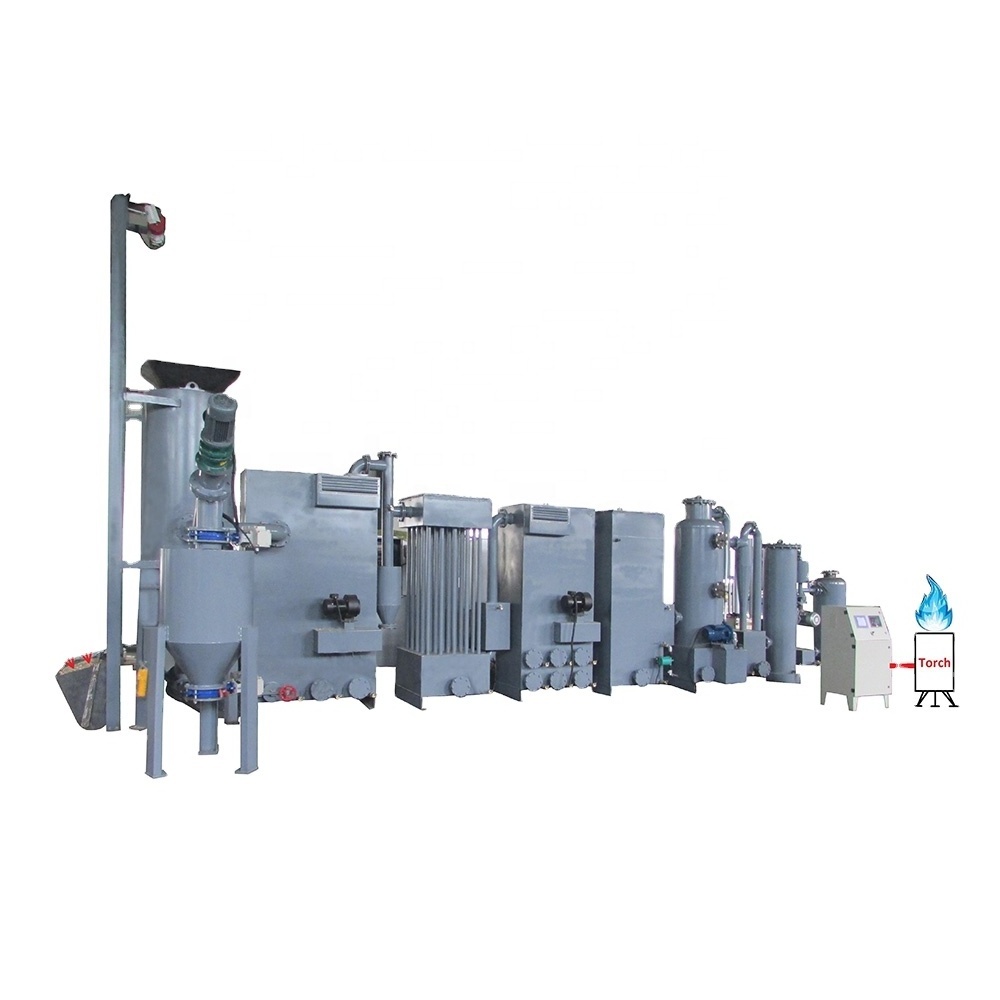

100kw Biomass pyrolysis sawdust gasification power generation,syngas power generation equipment coal generator set
Products Overviews
Gasification principles of biomass is to convert agriculture / forestry products and wood processing remains (including rick husks, wood powder, branches, offcuts, corn straws, rice straws, wheat straws, cotton straws, fruit shells, coconut shells, palm shells, bagasse, corncobs etc.) into syngas by Biomass Gasifier. Syngas then is used as fuel in thermal and electric power applications.
Product Paramenters
Gas Composition Data of Several Raw Materials After Gasification ( for Reference only )
|
Raw Materials
|
Gas Content
|
|
|
|
|
|
Heat Value
(Kcal/Nm³)
|
|||||
|
|
CH4 (%)
|
CO2 (%)
|
CO (%)
|
CnHm (%)
|
H2 (%)
|
O2 (%)
|
|
|||||
|
Rice Husk
|
3.16
|
15.32
|
13.69
|
0.11
|
14.55
|
0.91
|
1173
|
|||||
|
Wood Chips
|
2.62
|
14.86
|
17.34
|
0.09
|
18.97
|
0.72
|
1365
|
|||||
|
Apricot Shell
|
3.13
|
14.74
|
15.23
|
0.14
|
14.54
|
1.01
|
1221
|
|||||
Gasification Plant Data of Several Raw Materials
|
No.
|
Material Name
|
Consumption of Raw Materials (kg/kW·H)
|
Raw Material Gas Production (Nm³/kg)
|
|
1
|
Rice Husk
|
1.6-1.8
|
1.6-2.2
|
|
2
|
Rice Straw
|
1.6-1.7
|
1.6-2.3
|
|
3
|
Sawdust
|
1.4-1.5
|
1.9-2.4
|
|
4
|
Woodchips
|
1.3-1.5
|
1.9-2.3
|
|
5
|
Coconut Shell
|
1.5-1.8
|
1.5-2.0
|
|
6
|
Palm Kernel Shell
|
1.5-1.6
|
1.5-2.1
|
Raw Material
Working Principle
Application
The Advantages of Biomass Gasifier
1) Biomass gasification successfully conquers the disadvantages of biomass, such as low flammability and wide diversity.
2) Biomass gasification system is characteristic of small land requirement and environment friendly.
3) It’s one of the most effective way of biomass utilization.
1) Biomass gasification successfully conquers the disadvantages of biomass, such as low flammability and wide diversity.
2) Biomass gasification system is characteristic of small land requirement and environment friendly.
3) It’s one of the most effective way of biomass utilization.
