Quick Details
-
Brand Name:
-
24v solenoid valve water controller, ATC GOGO AUTOMATIC
-
Open/close time:
-
50-70 sec
-
Auxiliary switch:
-
2-SPDT
-
Torque output:
-
5NM
-
Nominal Volatage:
-
AC/DC24V 50/60HZ AC100-240V 50/60HZ
-
Pressure:
-
Medium Pressure
-
Material:
-
Plastic
Quick Details
-
Port Size:
-
2"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DMF-Z-50S, DA3FU24V-DS/ DA3FU230V-DS
-
Brand Name:
-
24v solenoid valve water controller, ATC GOGO AUTOMATIC
-
Open/close time:
-
50-70 sec
-
Auxiliary switch:
-
2-SPDT
-
Torque output:
-
5NM
-
Nominal Volatage:
-
AC/DC24V 50/60HZ AC100-240V 50/60HZ
-
Pressure:
-
Medium Pressure
-
Material:
-
Plastic

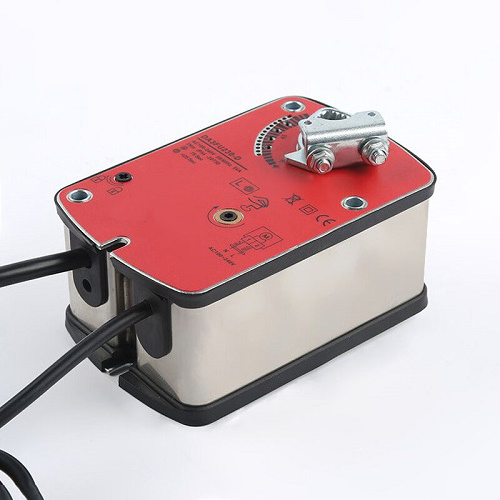

Spring return damper Actuator with 2 auxiliary switch 3Nm for HVAC system AC/DC 24V AC220V
Model: DA3FU24V-DS/ DA3FU230V-DS
Toque: 3Nm
Nominal Volatage: AC100-240V; AC/DC24V
DS type include 2 auxiliary switch
Running time : Running time 75s; spring reset time<25s
Life-time: 60,000 timesrotation
Technical Specification:
|
Types |
DA3FU24-D |
DA3FU24-DS |
DA3FU230-D |
DA3FU230-DS |
|
|
Torque5 |
3Nm |
||||
|
Damper size |
1m2 |
||||
|
Running time |
Running time 75s; spring reset time<25s |
||||
|
Power supply |
AC24V 50/60Hz;DC24V |
AC90~250V 50/60Hz |
|||
|
Power consumption |
working 5W,stop3W |
||||
|
Wire sizing |
0.5mm2 |
||||
|
Weight |
1.5Kg |
||||
|
Control signal |
single line |
||||
|
Direction of rotation |
to install on the other side |
||||
|
Angle of rotation |
max 95º |
||||
|
Angle limit |
position limit 5~85º(5º each step) |
||||
|
Position indication |
machine instruction |
||||
|
Manual override |
without |
||||
|
Rated value of auxiliary switches |
1mA…3(0.5)A,AC220V |
||||
|
Life-time |
60,000 cycles |
||||
|
Sound power level |
Max 45dB(A) when motor working,max62dB(A) while spring return |
||||
|
Protection class |
Ⅲ |
Ⅱ |
|||
|
Protection degree |
IP54 |
||||
|
Ambient temperature |
-20~+50℃ |
||||
|
Ambient humidity |
5~95%RH |
||||
|
Inventory temperature |
-40~+70℃ |
||||
|
Criterion |
CE certification |
||||
Dimensions
